Article no.: F032111679

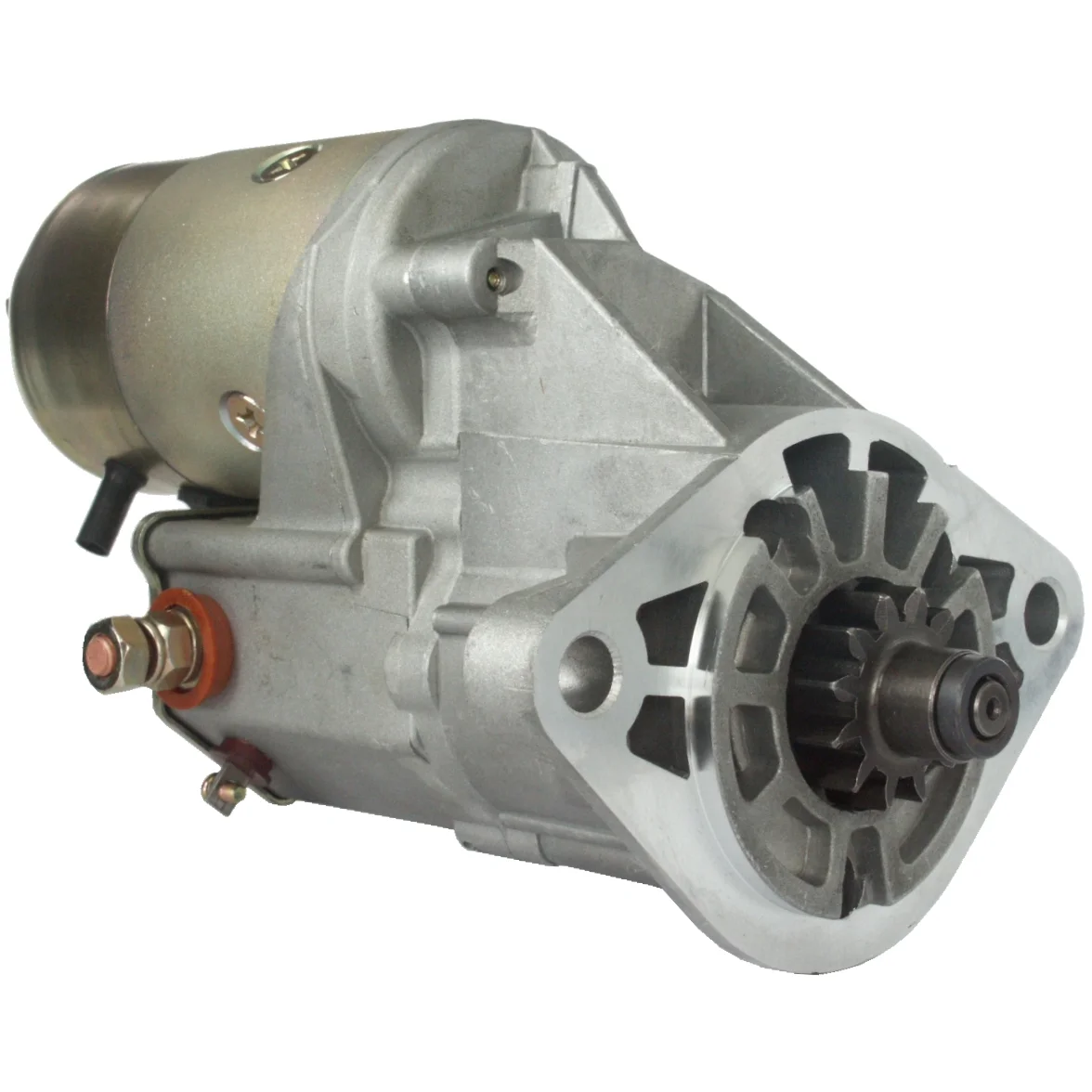

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mounting flange: 91.00
Drive distance: 16.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 197.00
Distance / front: 38.50
Number / teeth: 12
B+: M10
Position / 50: 25
Terminal 50: M5
Gear type: GR
Distance in millimeters: 142.50
Rotation: CW
Total length in millimeters: 292.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032111679, js1021, RGO 111679, 28100-17020, 28100-17030, 128000-8620, 128000-8621, 228000-1600, 228000-1601

  • Normalised article numbler
    cst40605, drs3304, f032111679, f042000114, f042s00114, js1021, lrs01893, pbns3035, rgo111679, s6026, str6182, 8ea737345001, 4504, 9838, 17537, 32893n, 103664, 105019, 201021, 452138, 458587, 8052276, 8213199, 11040253, 20513035, 335039124, 943241058, 0986019171, 1280008620, 1280008621, 2280001600, 2280001601, 2810017020, 2810017030, 943241058010, 944280522760
  • Description
    Voltage: 24
    kW: 4.5
    Mounting flange: 91.00
    Drive distance: 16.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 197.00
    Distance / front: 38.50
    Number / teeth: 12
    B+: M10
    Position / 50: 25
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 142.50
    Rotation: CW
    Total length in millimeters: 292.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111679, js1021, RGO 111679, 28100-17020, 28100-17030, 128000-8620, 128000-8621, 228000-1600, 228000-1601

    • Normalised article numbler
      cst40605, drs3304, f032111679, f042000114, f042s00114, js1021, lrs01893, pbns3035, rgo111679, s6026, str6182, 8ea737345001, 4504, 9838, 17537, 32893n, 103664, 105019, 201021, 452138, 458587, 8052276, 8213199, 11040253, 20513035, 335039124, 943241058, 0986019171, 1280008620, 1280008621, 2280001600, 2280001601, 2810017020, 2810017030, 943241058010, 944280522760
