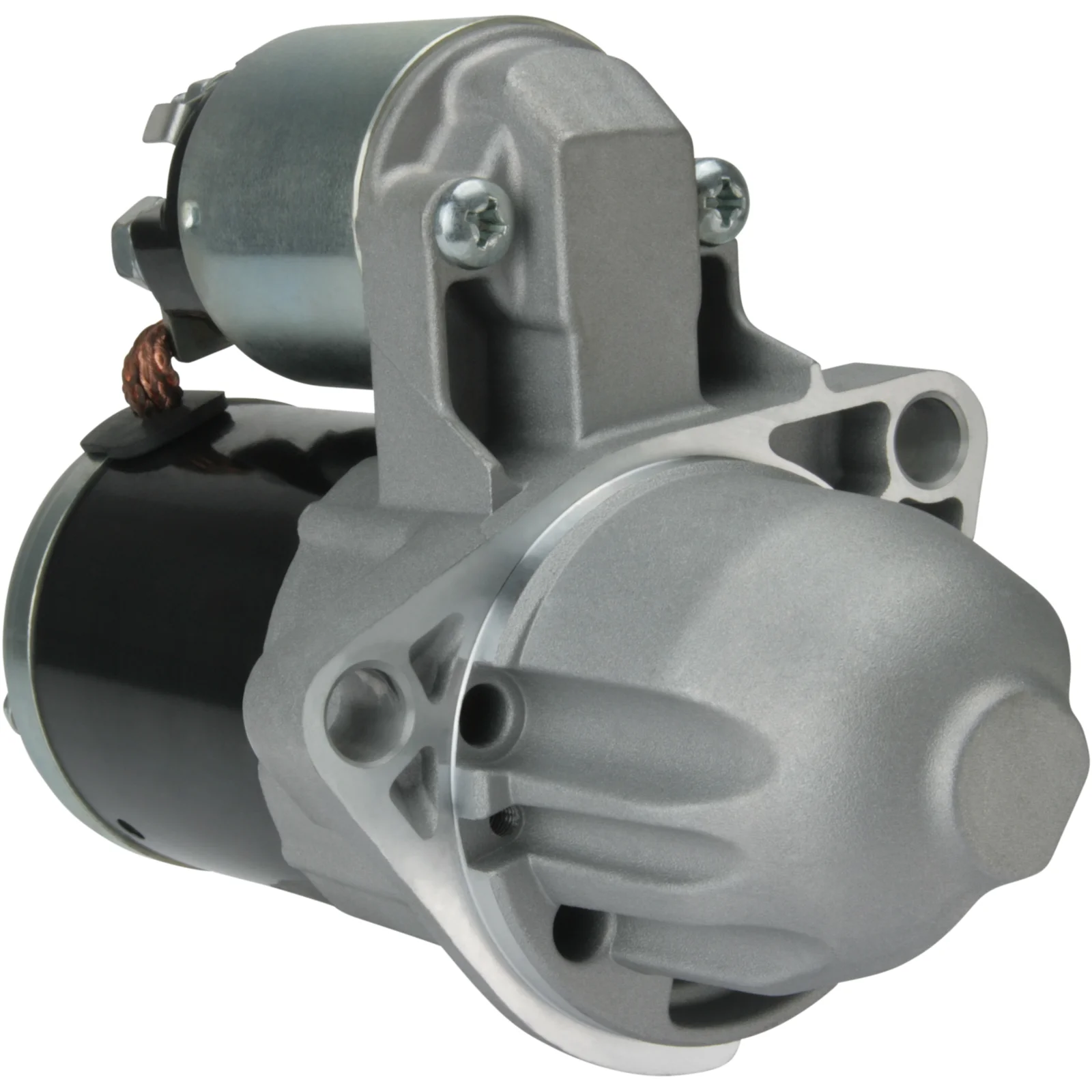

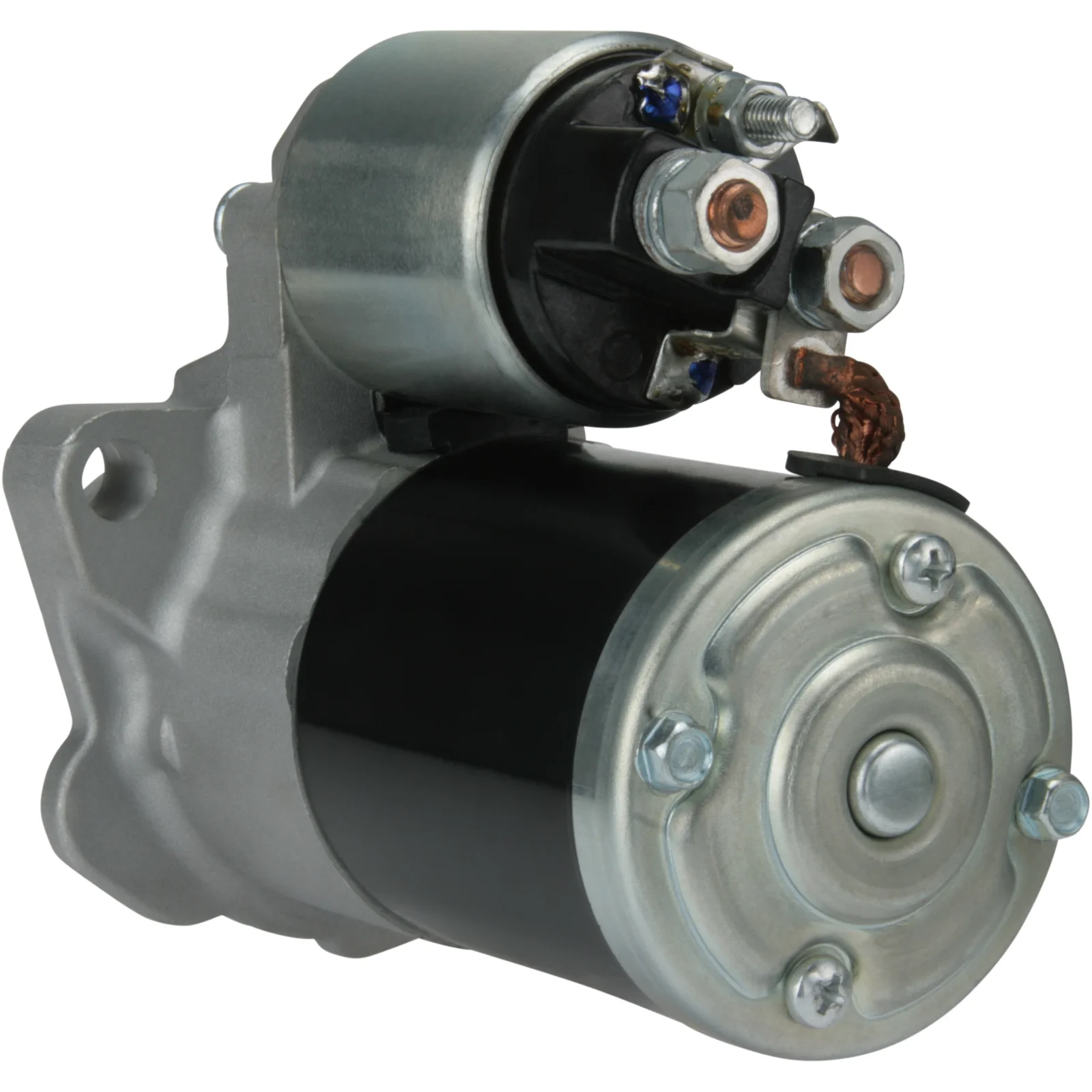

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115360

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 75.00
Drive distance: 31.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 127.00
Distance / front: 63.00
Number / teeth: 12
B+: M8
Position / 50: 5
Terminal 50: M6
Gear type: GR
Distance in millimeters: 93.50
Rotation: CW
Total length in millimeters: 191.50
Production info: BN
Number / mounting holes: 2 (0)

Files

  • OEM
    cs1461, F032115360, M000T35471, M0T35471, RGO 115360, 55183906

  • Normalised article numbler
    cs1461, cst35235, drs0531, f032115360, lrs02437, m000t35471, m0t35471, mitm0t35471, rgo115360, s5086, 3171, 30046n, 101461, 254109, 8080289, 11090218, 42000902, 55183906, 100510122, 318217122, 0986024740
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 75.00
    Drive distance: 31.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 127.00
    Distance / front: 63.00
    Number / teeth: 12
    B+: M8
    Position / 50: 5
    Terminal 50: M6
    Gear type: GR
    Distance in millimeters: 93.50
    Rotation: CW
    Total length in millimeters: 191.50
    Production info: BN
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1461, F032115360, M000T35471, M0T35471, RGO 115360, 55183906

    • Normalised article numbler
      cs1461, cst35235, drs0531, f032115360, lrs02437, m000t35471, m0t35471, mitm0t35471, rgo115360, s5086, 3171, 30046n, 101461, 254109, 8080289, 11090218, 42000902, 55183906, 100510122, 318217122, 0986024740
