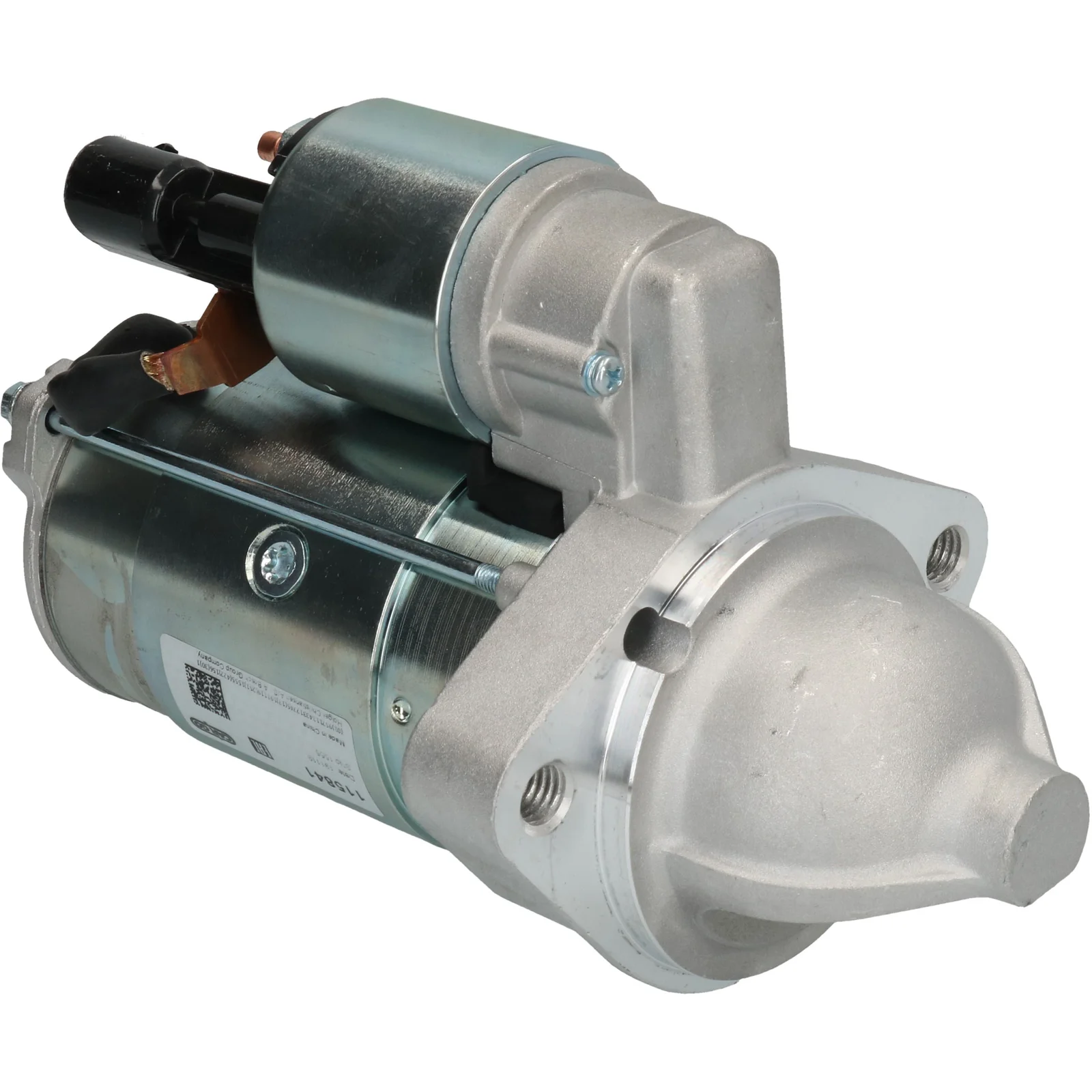

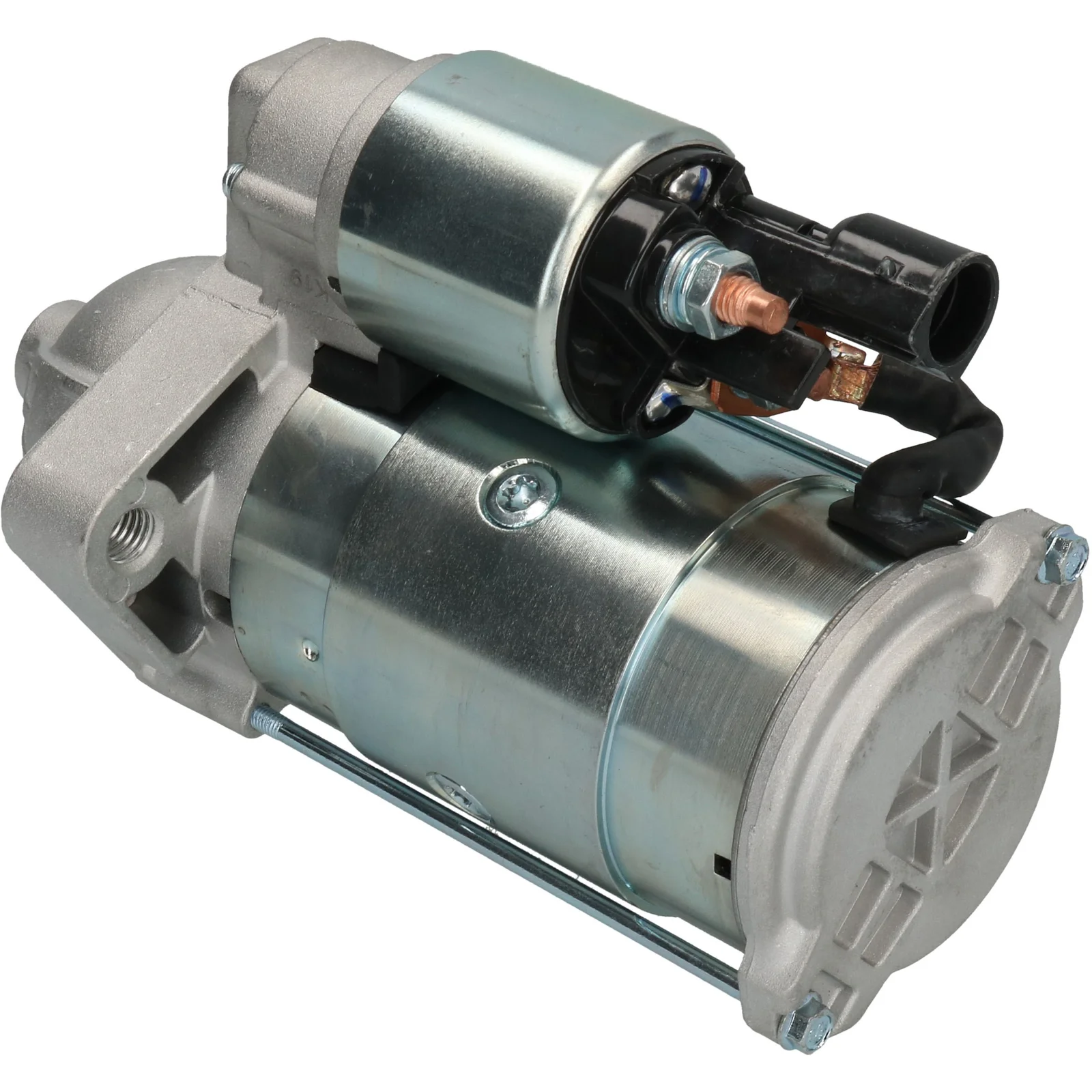

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115841

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.4, No./teeth: 11, Rotation: CW

Description

Starter motor 12V-2.4kW (Crafter) 12V - 2.4kW, 11k A - 82.5mm, B - 20mm For Yourrex product order 91-620-8395

Voltage: 12
kW: 2.4
Mounting flange: 82.50
Drive distance: 20.50
Distance/backup: 157.00
Distance/front: 60.00
Number/teeth: 11
B+: M8
Position/B+: 52
Position/50: 7
Terminal 50: Plug
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 217.00
Number/mounting holes: 2 (2)

Files

  • OEM
    F032115841, RGO 115841, TS24E 13, TS24E13, 076 911 023B, 076 911023BX, 115841, 438231, 458395, 076911023B, 076911023BX

  • Normalised article numbler
    cst15260, drs0823, f032115841, lrs02663, rgo115841, ts24e13, 8ea011613051, 115841, 201178, 220800, 220800a, 254335, 438231, 458395, 8080396, 11090232, 076911023b, 076911023bx, 300918112, 311289112
  • Description
    Starter motor 12V-2.4kW (Crafter) 12V - 2.4kW, 11k A - 82.5mm, B - 20mm For Yourrex product order 91-620-8395

    Voltage: 12
    kW: 2.4
    Mounting flange: 82.50
    Drive distance: 20.50
    Distance/backup: 157.00
    Distance/front: 60.00
    Number/teeth: 11
    B+: M8
    Position/B+: 52
    Position/50: 7
    Terminal 50: Plug
    Gear type: GR
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 217.00
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032115841, RGO 115841, TS24E 13, TS24E13, 076 911 023B, 076 911023BX, 115841, 438231, 458395, 076911023B, 076911023BX

    • Normalised article numbler
      cst15260, drs0823, f032115841, lrs02663, rgo115841, ts24e13, 8ea011613051, 115841, 201178, 220800, 220800a, 254335, 438231, 458395, 8080396, 11090232, 076911023b, 076911023bx, 300918112, 311289112
