HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115571

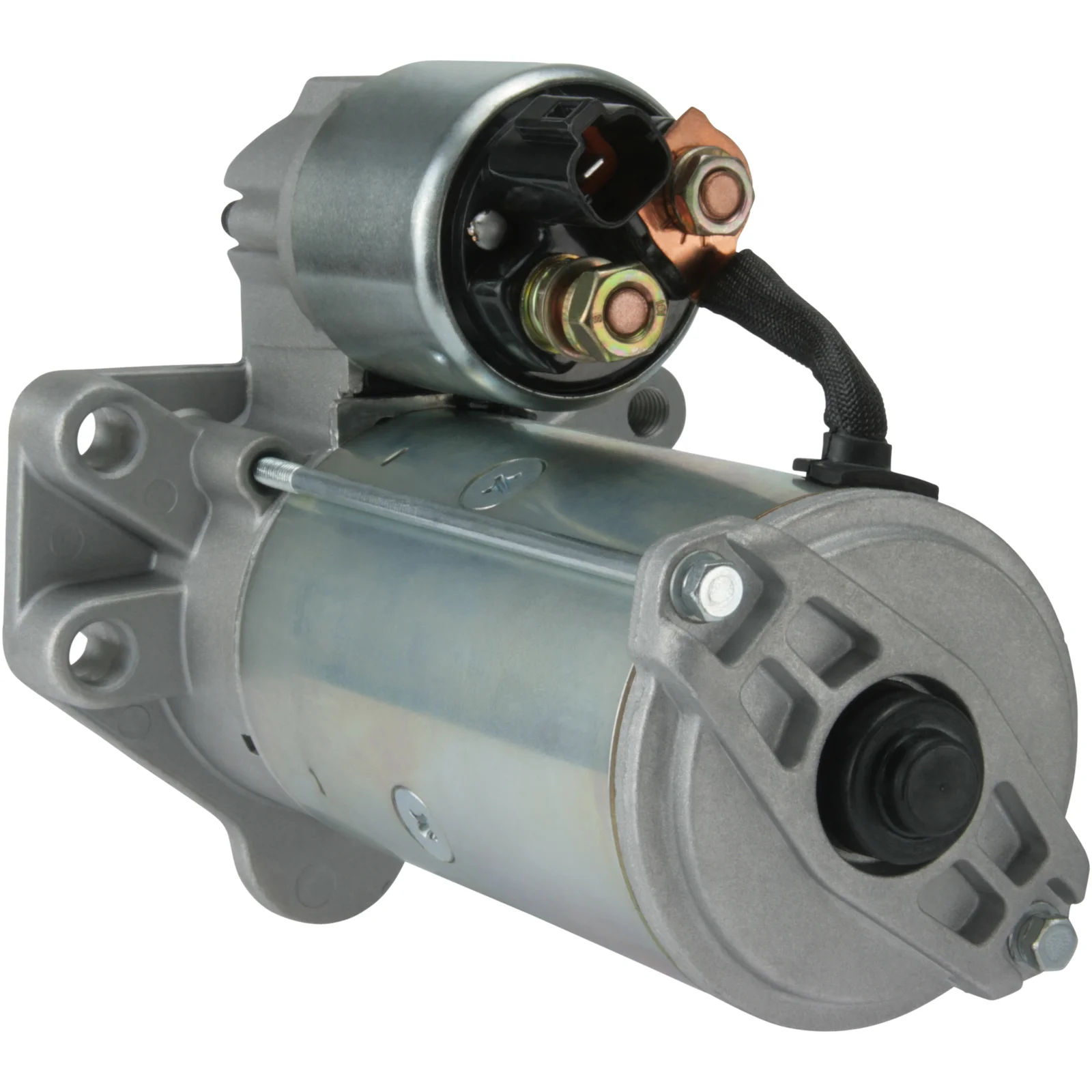

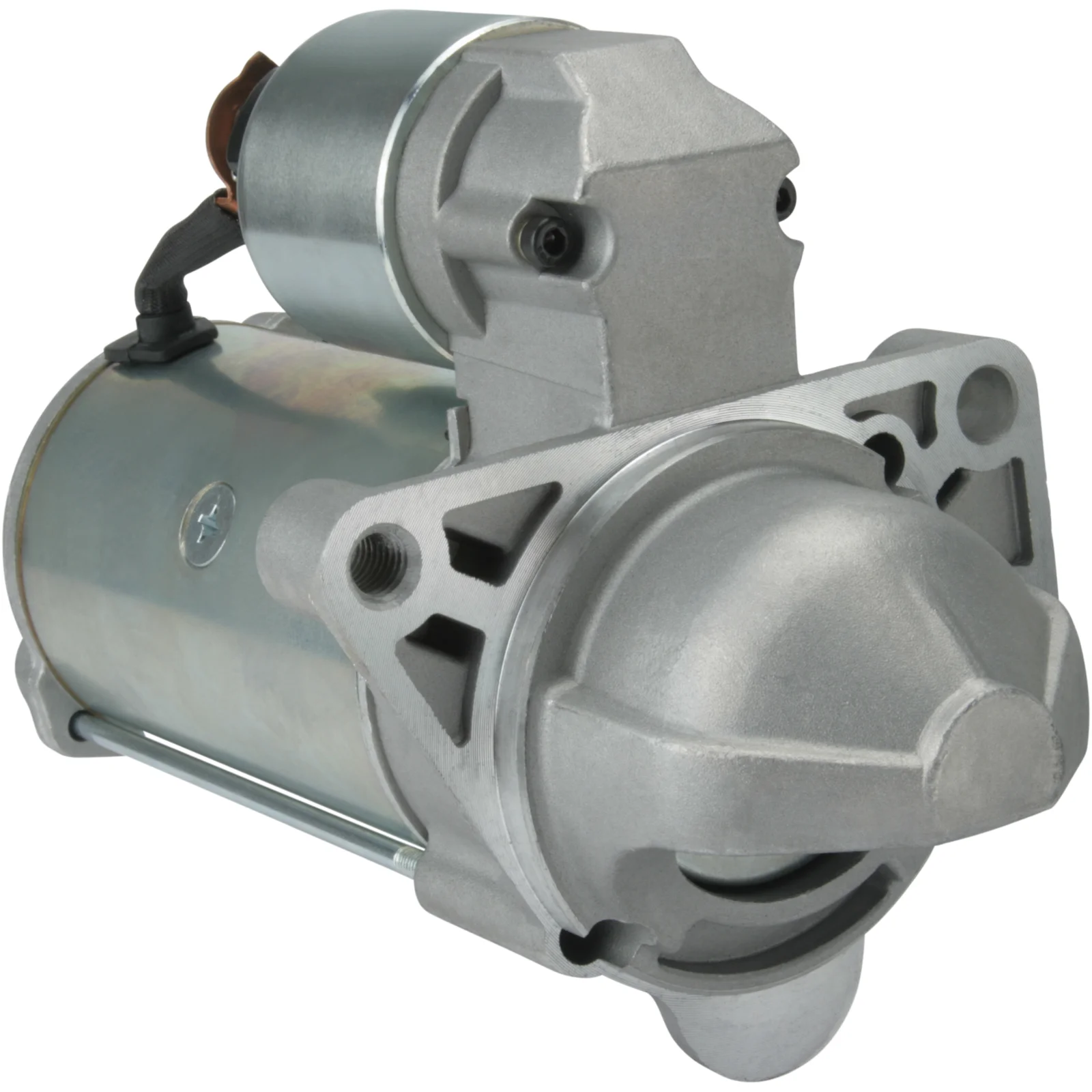

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Start 12V-2.2kW fits GM Dsl. 12V - 2.2kW, 9k A - 82.5mm, B - 22mm When replacing the starter motor, carefully check the (+) cable of the starter motor. The starter motor cable, starter motor, and nut must be replaced if signs of thermal damage are found. Yourex does not accept any claims due to thermal damage on the solenoid (+) bolt. For Yourex product order 91-200-3761

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive distance: 22.00
Mount. hole 3 mm: M10
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Distance/back: 172.00
Distance/front: 57.50
Number/teeth: 9
B+: M8
Position/50: 55
Terminal 50: Plug
Gear type: GR
Distance 2: 113.50
Distance 3: 105.00
Distance mm: 36.50
Rotation: CW
Total length mm: 238.50
Product info: BN
Number/mounting holes: 3 (1)

Files

  • OEM
    F032115571, GM 25183761, RGO 115571, 115571, 600708, 1196601, 4802243, 25183761, 25383761, 95520319

  • Normalised article numbler
    cst32141, drs0827, f032115571, gm25183761, rgo115571, s3146, s3149valeo, 8ea011612121, 3250, 19491n, 115571, 220712, 220712a, 254395, 255041, 458765, 600708, 1196601, 4802243, 11090290, 25183761, 25383761, 95520319, 328074092, 830919093
  • Description
    Start 12V-2.2kW fits GM Dsl. 12V - 2.2kW, 9k A - 82.5mm, B - 22mm When replacing the starter motor, carefully check the (+) cable of the starter motor. The starter motor cable, starter motor, and nut must be replaced if signs of thermal damage are found. Yourex does not accept any claims due to thermal damage on the solenoid (+) bolt. For Yourex product order 91-200-3761

    Voltage: 12
    kW: 2.2
    Mount. flange: 82.50
    Drive distance: 22.00
    Mount. hole 3 mm: M10
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Distance/back: 172.00
    Distance/front: 57.50
    Number/teeth: 9
    B+: M8
    Position/50: 55
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 113.50
    Distance 3: 105.00
    Distance mm: 36.50
    Rotation: CW
    Total length mm: 238.50
    Product info: BN
    Number/mounting holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032115571, GM 25183761, RGO 115571, 115571, 600708, 1196601, 4802243, 25183761, 25383761, 95520319

    • Normalised article numbler
      cst32141, drs0827, f032115571, gm25183761, rgo115571, s3146, s3149valeo, 8ea011612121, 3250, 19491n, 115571, 220712, 220712a, 254395, 255041, 458765, 600708, 1196601, 4802243, 11090290, 25183761, 25383761, 95520319, 328074092, 830919093
