Article no.: F032112173

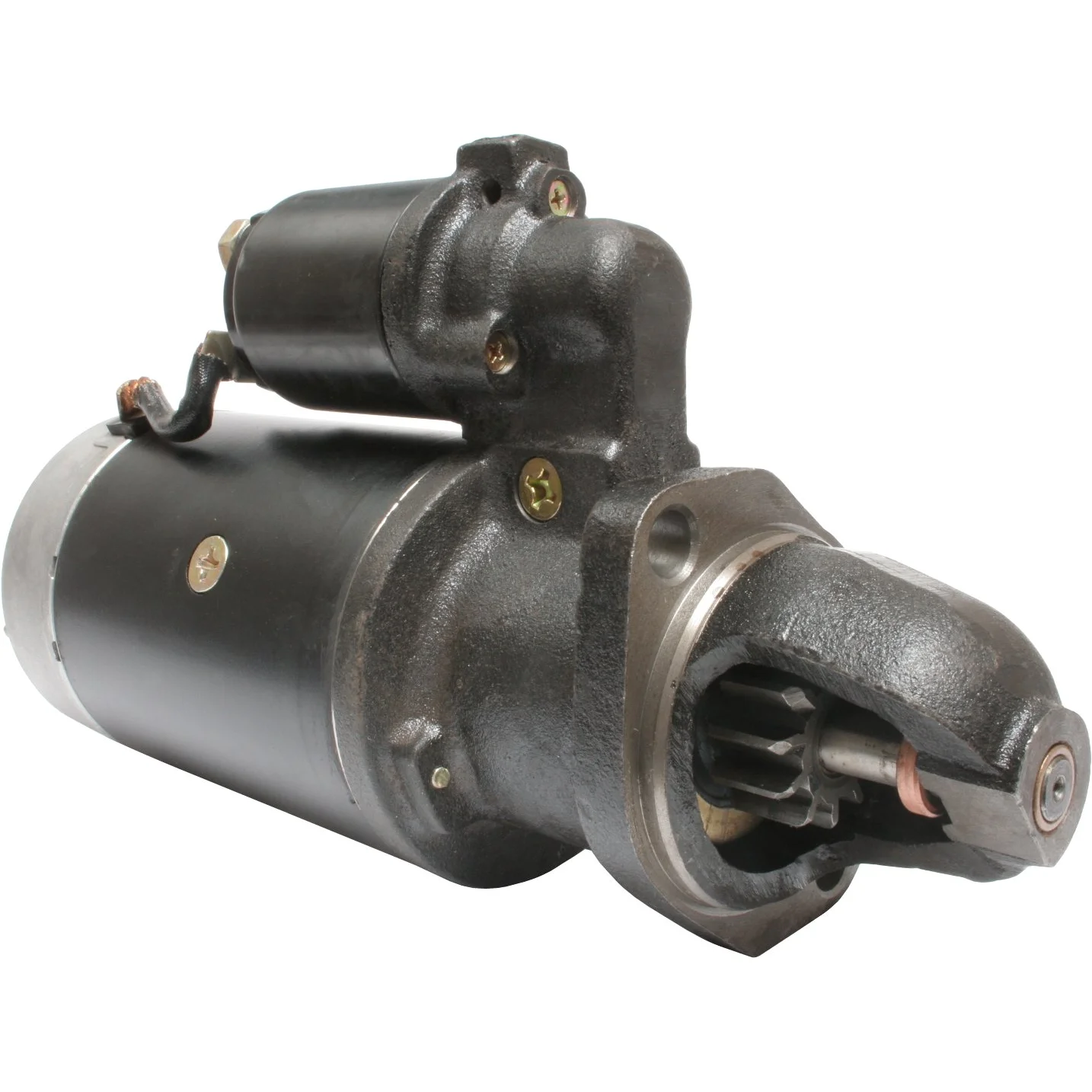

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.7
Mounting flange: 82.50
Drive distance: 20.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 273.50
Distance / front: 65.00
Number / teeth: 11
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance in millimeters: 104.50
Rotation: CW
Total length in millimeters: 342.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    azj3554, F032112173, MT41A, 11.130.250, 0001354029, 0001354108, 0001367008, 035530058A, 35530058A, 35530061, 40000700, 40000900, 605720100059

  • Normalised article numbler
    azj3554, bso7084, bso7176, cst21180, f032112173, is0250, lrs01123, lrs01154, ms393, mt41a, s0579, s9218s, str22040, str22058, 8546, 18236, 18943, 22042bo, 33700, 101073, 220186, 220186a, 251059, 251132, 254767, 0001354029, 0001354108, 0001367008, 11130250, 035530058a, 35530058a, 35530061, 40000700, 40000900, 680002112, 680004112, 680011112, 730009112, 730507112, 605720100059
  • Description
    Voltage: 12
    kW: 2.7
    Mounting flange: 82.50
    Drive distance: 20.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 273.50
    Distance / front: 65.00
    Number / teeth: 11
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance in millimeters: 104.50
    Rotation: CW
    Total length in millimeters: 342.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3554, F032112173, MT41A, 11.130.250, 0001354029, 0001354108, 0001367008, 035530058A, 35530058A, 35530061, 40000700, 40000900, 605720100059

    • Normalised article numbler
      azj3554, bso7084, bso7176, cst21180, f032112173, is0250, lrs01123, lrs01154, ms393, mt41a, s0579, s9218s, str22040, str22058, 8546, 18236, 18943, 22042bo, 33700, 101073, 220186, 220186a, 251059, 251132, 254767, 0001354029, 0001354108, 0001367008, 11130250, 035530058a, 35530058a, 35530061, 40000700, 40000900, 680002112, 680004112, 680011112, 730009112, 730507112, 605720100059
