HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112175

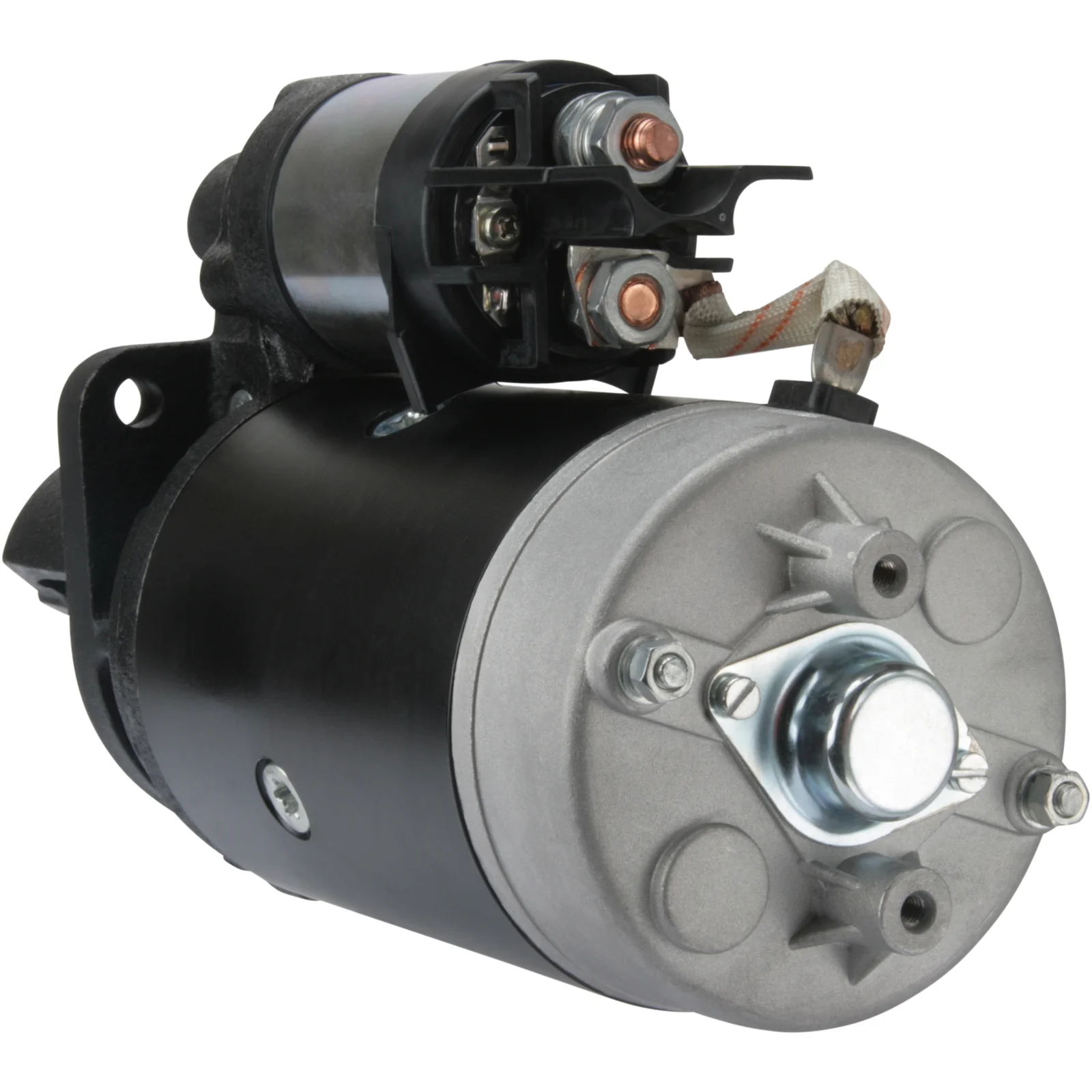

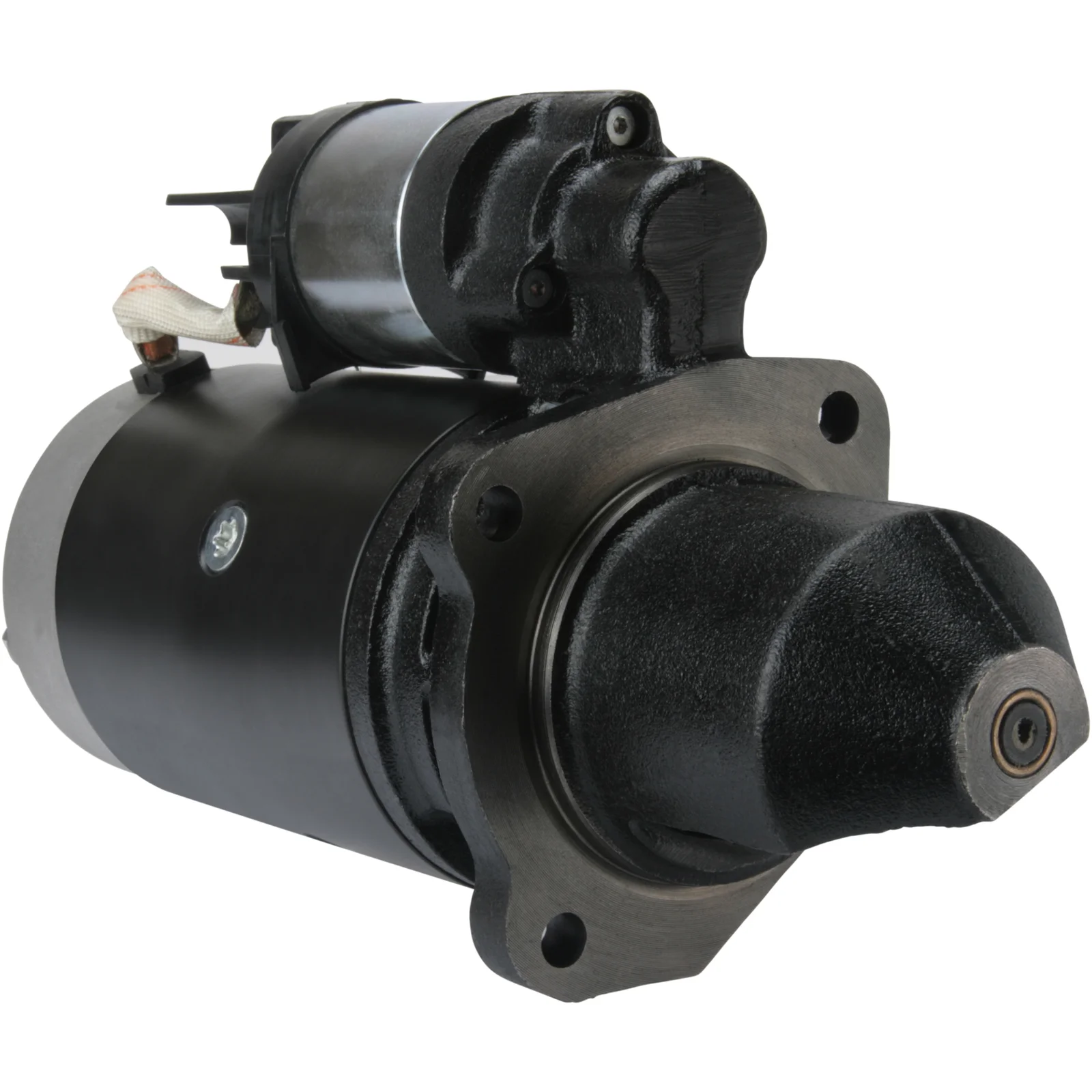

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kilowatt: 3.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 245.00
Distance / front: 95.00
Number / teeth: 10
B+: M10
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 341.00
Clutch type: Wet
Drive type: Steel
Production info: BN / OEM
Waterproof: No
Oil sealed: Yes
Number / mounting holes: 3 (0)

Files

  • OEM
    F032112175, 135125, 136125, 326460, 345433, 0001367054, 3001265, 3001265R, 3137440

  • Normalised article numbler
    drs0467, f032112175, lrs01313, s0559, s1188s, str22054, 4398n, 18035, 18035n, 135125, 136125, 252078, 326460, 345433, 0001367054, 3001265, 3001265r, 3137440, 600066102
  • Description
    Voltage: 12
    kilowatt: 3.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 245.00
    Distance / front: 95.00
    Number / teeth: 10
    B+: M10
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 341.00
    Clutch type: Wet
    Drive type: Steel
    Production info: BN / OEM
    Waterproof: No
    Oil sealed: Yes
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112175, 135125, 136125, 326460, 345433, 0001367054, 3001265, 3001265R, 3137440

    • Normalised article numbler
      drs0467, f032112175, lrs01313, s0559, s1188s, str22054, 4398n, 18035, 18035n, 135125, 136125, 252078, 326460, 345433, 0001367054, 3001265, 3001265r, 3137440, 600066102
