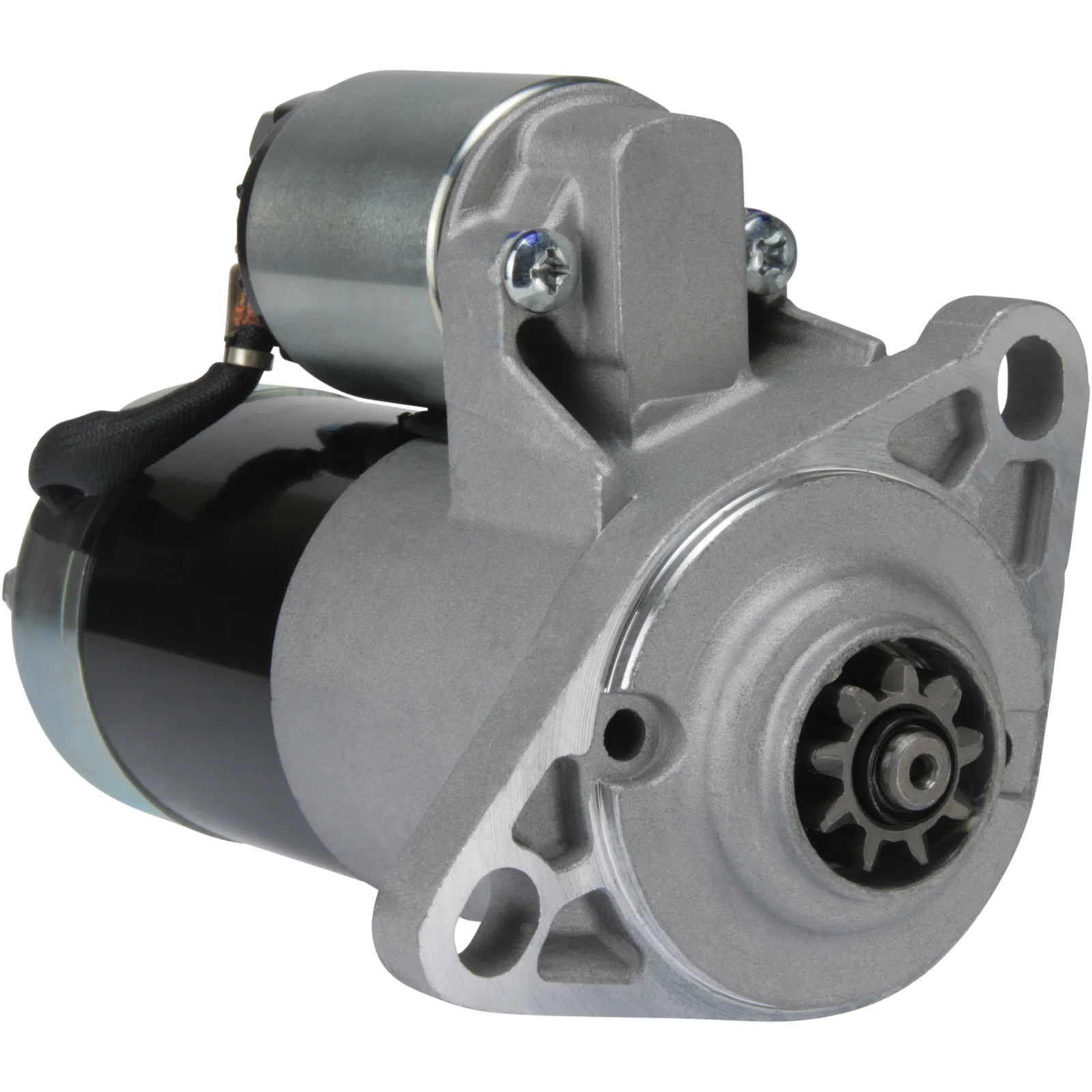

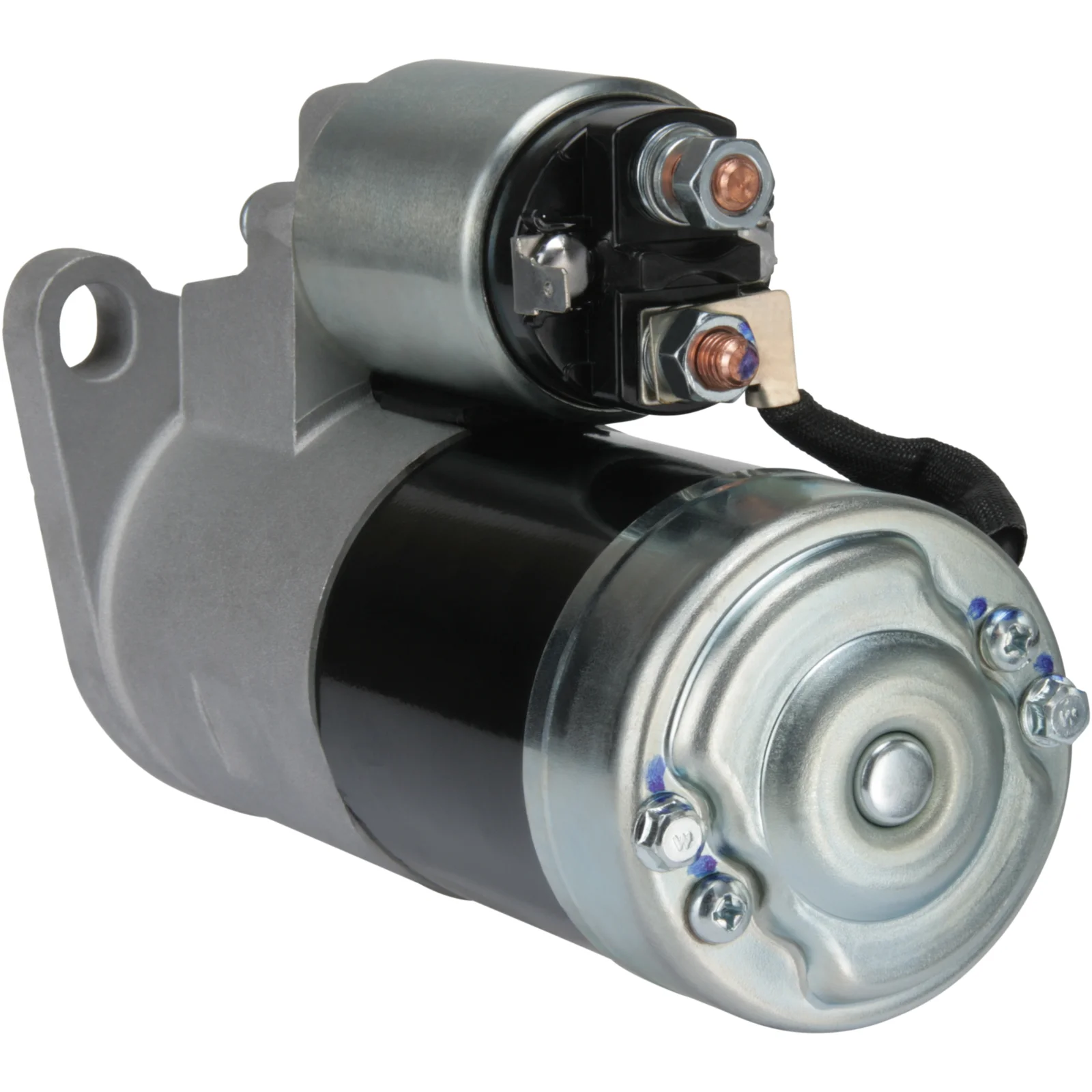

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112177

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mount. flange: 74.00
Drive dist.: 20.00
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 188.50
Dist./front: 25.00
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 109.50
Rotation: CW
Total length mm: 213.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032112177, M001T66081, M002T58971, m1t66081, M2T58971, sba185086551, sba185086650

  • Normalised article numbler
    cst35189, drs0202, f032112177, lrs02424, m001t66081, m002t58971, m1t66081, m2t58971, s5111, sba185086551, sba185086650, 18395, 18395n, 22569mi, 254096, 668028092
  • Description
    Voltage: 12
    kW: 1.7
    Mount. flange: 74.00
    Drive dist.: 20.00
    Mount. hole 2 mm: 11.50
    Mount. hole 1 mm: 11.50
    Dist./back: 188.50
    Dist./front: 25.00
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 109.50
    Rotation: CW
    Total length mm: 213.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112177, M001T66081, M002T58971, m1t66081, M2T58971, sba185086551, sba185086650

    • Normalised article numbler
      cst35189, drs0202, f032112177, lrs02424, m001t66081, m002t58971, m1t66081, m2t58971, s5111, sba185086551, sba185086650, 18395, 18395n, 22569mi, 254096, 668028092
