Article no.: F032112178

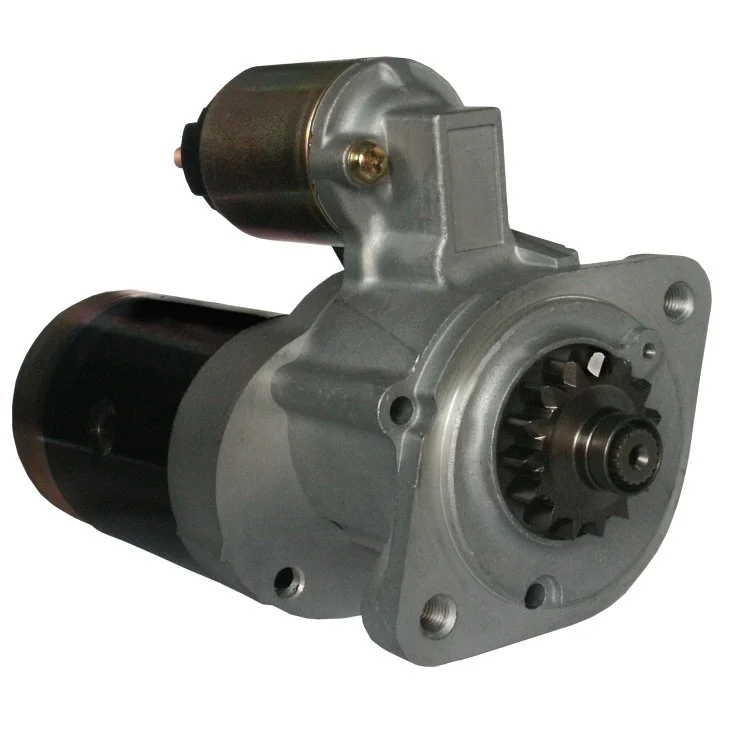

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 15, Rotation: CW

Description

Voltage: 12
kW: 1.6
Mounting flange: 77.00
Drive distance: 17.00
Dist./back: 192.50
Dist./front: 32.00
Number/teeth: 15
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 228.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • OEM
    F032112178, M002T50271, M002T50281, M002T50285, m2t50271, m2t50281, m2t50285, 015125-53001e, 317600

  • Normalised article numbler
    cst35154, drs3283, drs3936, drs3936n, f032112178, lrs01145, lrs01544, m002t50271, m002t50281, m002t50285, m2t50271, m2t50281, m2t50285, s5414s, s5431s, str28006, 8844, 17097, 17097n, 251109, 254184, 317600, 11040685, 150908152, 626009152, 01512553001e
  • Description
    Voltage: 12
    kW: 1.6
    Mounting flange: 77.00
    Drive distance: 17.00
    Dist./back: 192.50
    Dist./front: 32.00
    Number/teeth: 15
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 228.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032112178, M002T50271, M002T50281, M002T50285, m2t50271, m2t50281, m2t50285, 015125-53001e, 317600

    • Normalised article numbler
      cst35154, drs3283, drs3936, drs3936n, f032112178, lrs01145, lrs01544, m002t50271, m002t50281, m002t50285, m2t50271, m2t50281, m2t50285, s5414s, s5431s, str28006, 8844, 17097, 17097n, 251109, 254184, 317600, 11040685, 150908152, 626009152, 01512553001e
