HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112185

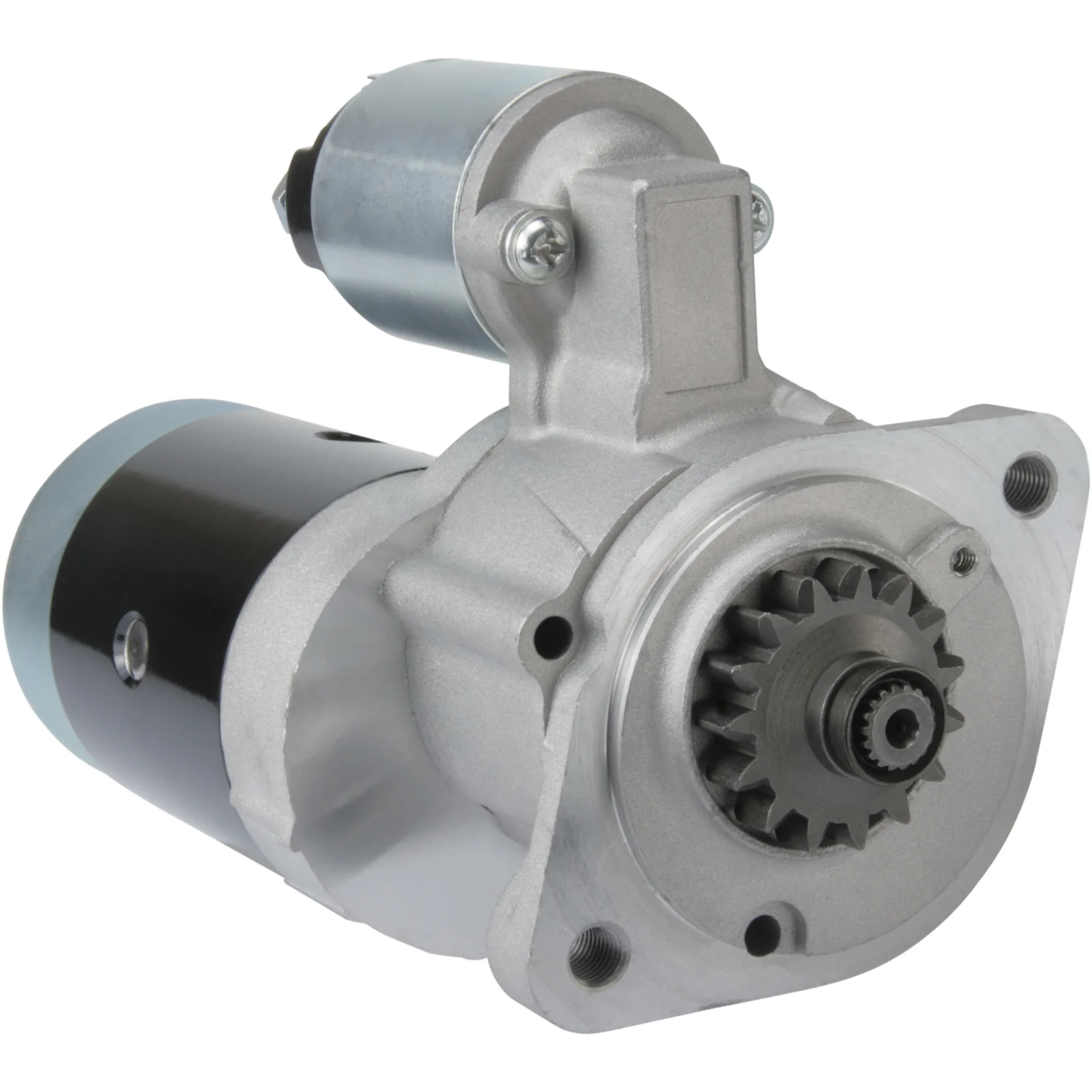

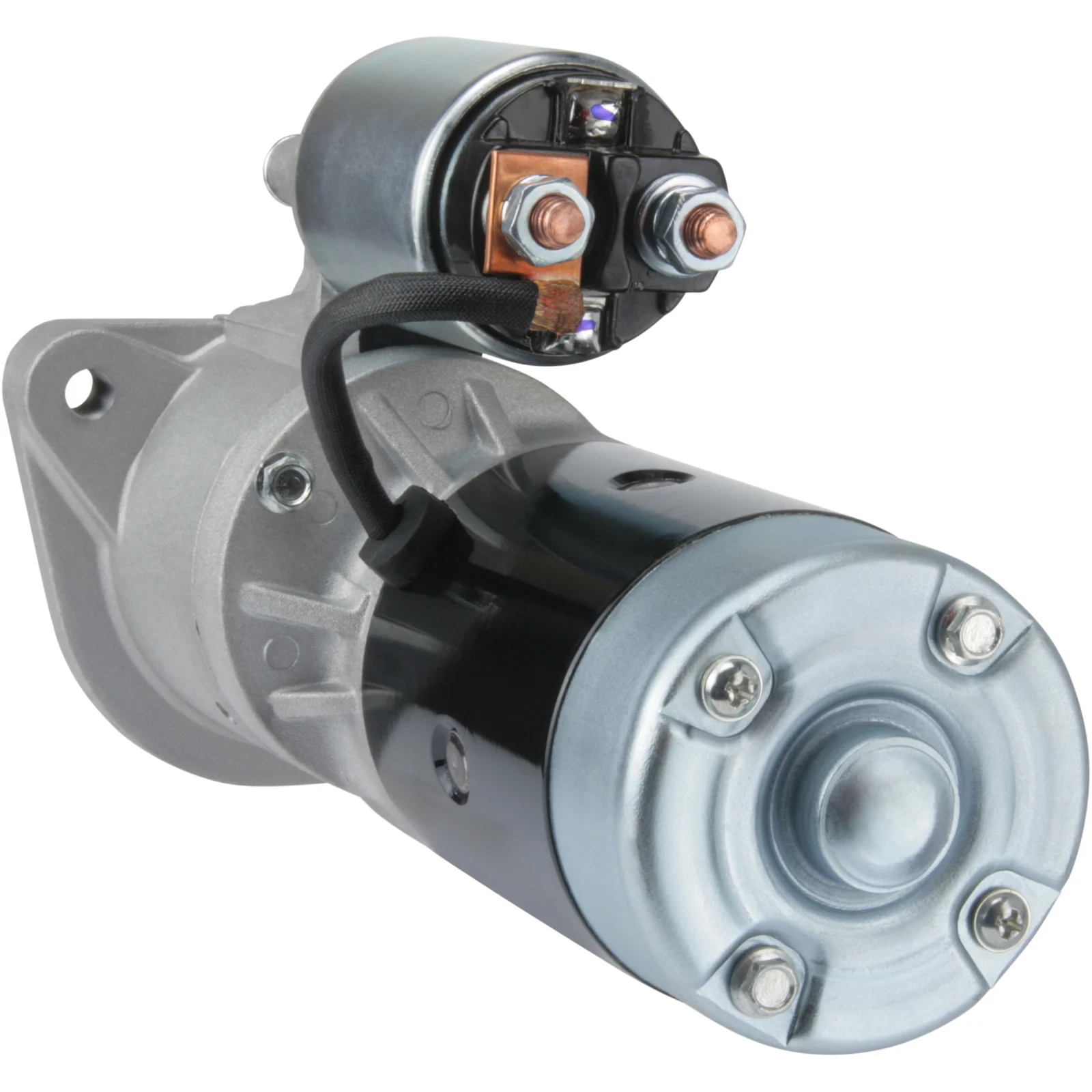

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 15, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 77.00
Drive distance: 18.00
Dist./back: 183.00
Dist./front: 32.00
Number/teeth: 15
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 220.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 77.00
    Drive distance: 18.00
    Dist./back: 183.00
    Dist./front: 32.00
    Number/teeth: 15
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 220.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles
