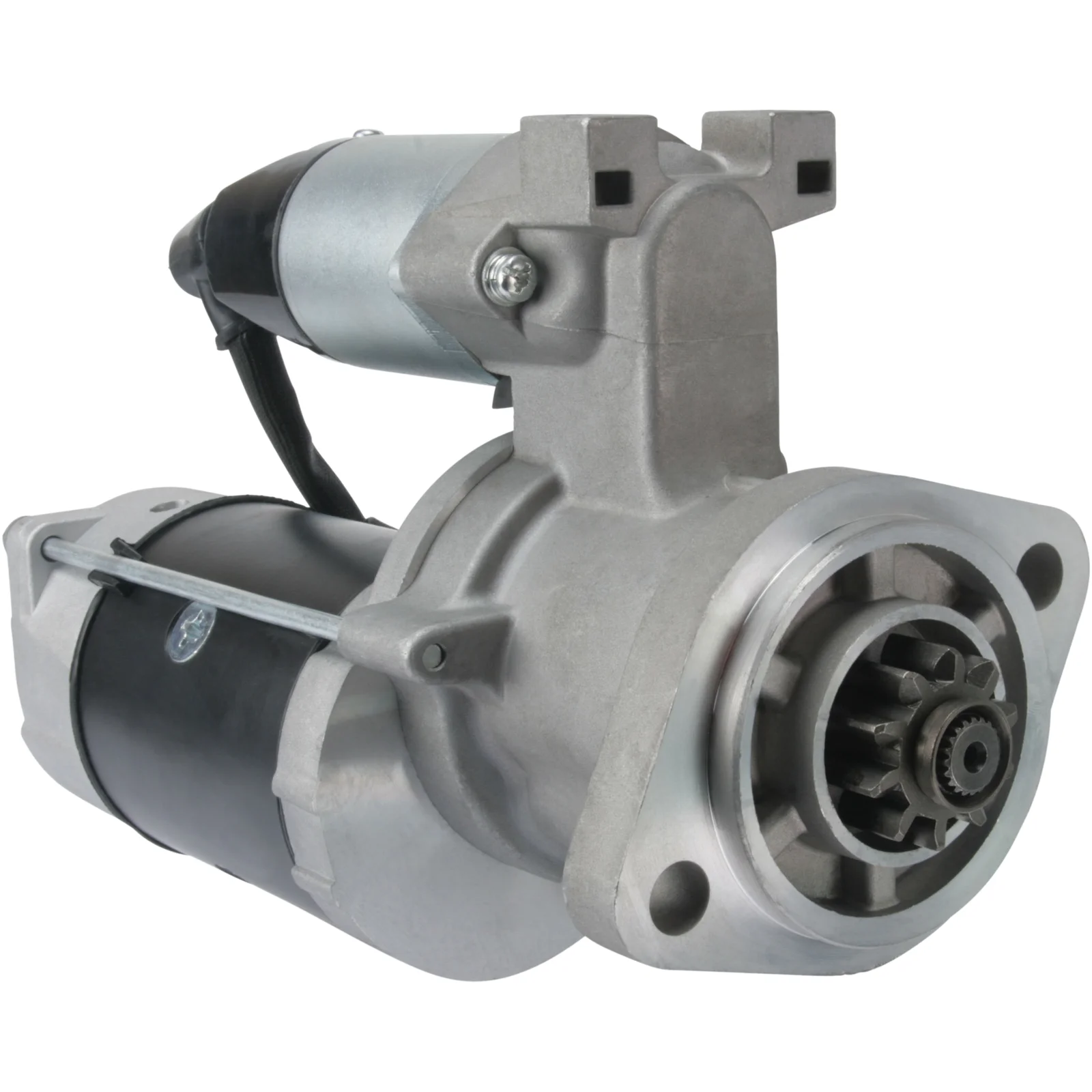

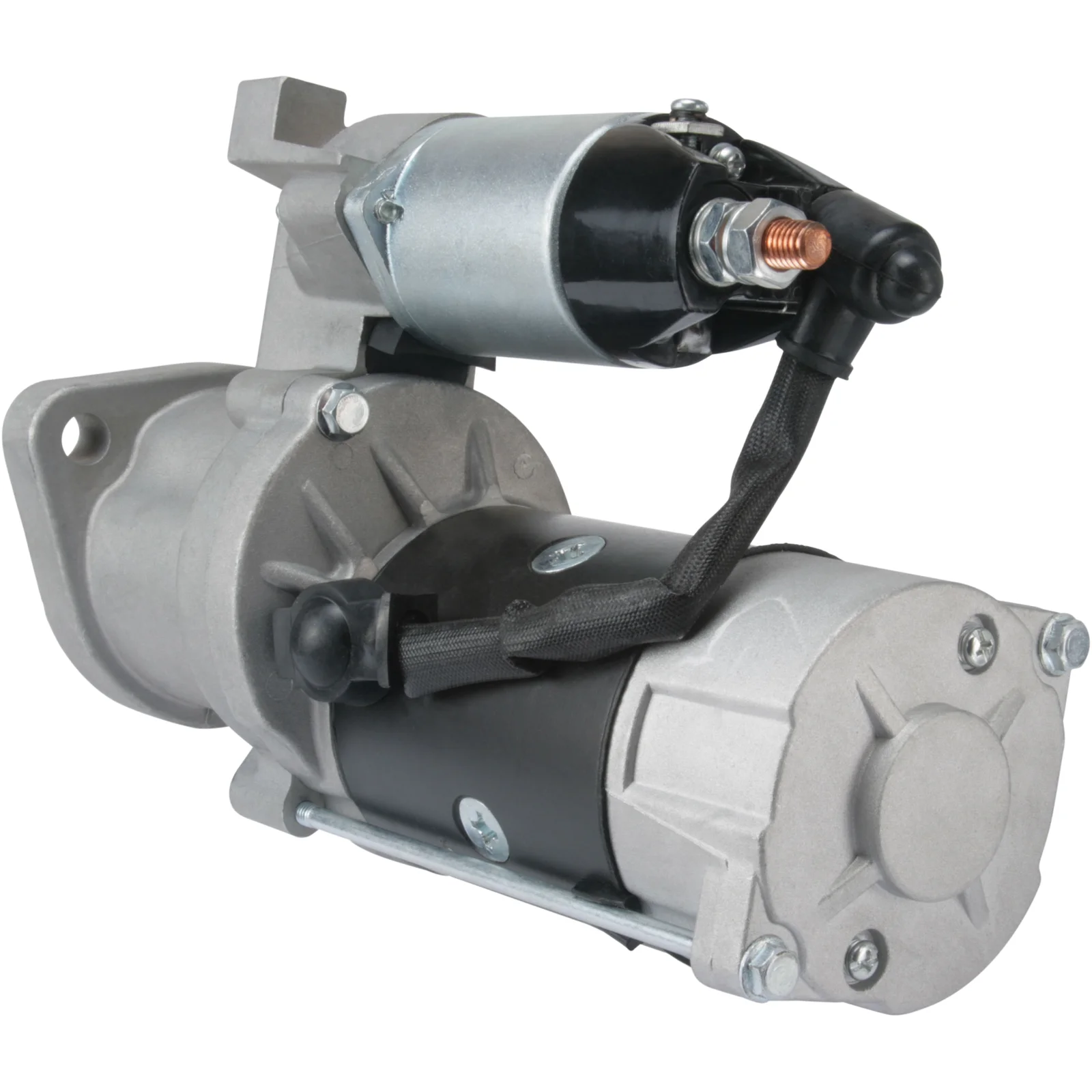

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112323

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 5.0
Mount. flange: 82.00
Drive dist.: 23.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 258.50
Dist./front: 32.50
No./teeth: 10
B+: M10
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 292.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
No./mount. holes: 2 (0)

Files

  • OEM
    F032112323, M003T56174, M003T56181, M003T56182, M003T56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, 34766-10903, 34766-20900

  • Normalised article numbler
    cst35602, drs0425, drs4161, f032112323, lrs01889, lrs01928, m003t56174, m003t56181, m003t56182, m003t56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, s5196, sm00232r, str28015, 18239, 18239n, 22087mi, 22087mi1, 452090, 452445, 11040347, 91273205, 626018104, 3476610903, 3476620900
  • Description
    Voltage: 24
    kW: 5.0
    Mount. flange: 82.00
    Drive dist.: 23.00
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 258.50
    Dist./front: 32.50
    No./teeth: 10
    B+: M10
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 292.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112323, M003T56174, M003T56181, M003T56182, M003T56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, 34766-10903, 34766-20900

    • Normalised article numbler
      cst35602, drs0425, drs4161, f032112323, lrs01889, lrs01928, m003t56174, m003t56181, m003t56182, m003t56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, s5196, sm00232r, str28015, 18239, 18239n, 22087mi, 22087mi1, 452090, 452445, 11040347, 91273205, 626018104, 3476610903, 3476620900
