HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116446

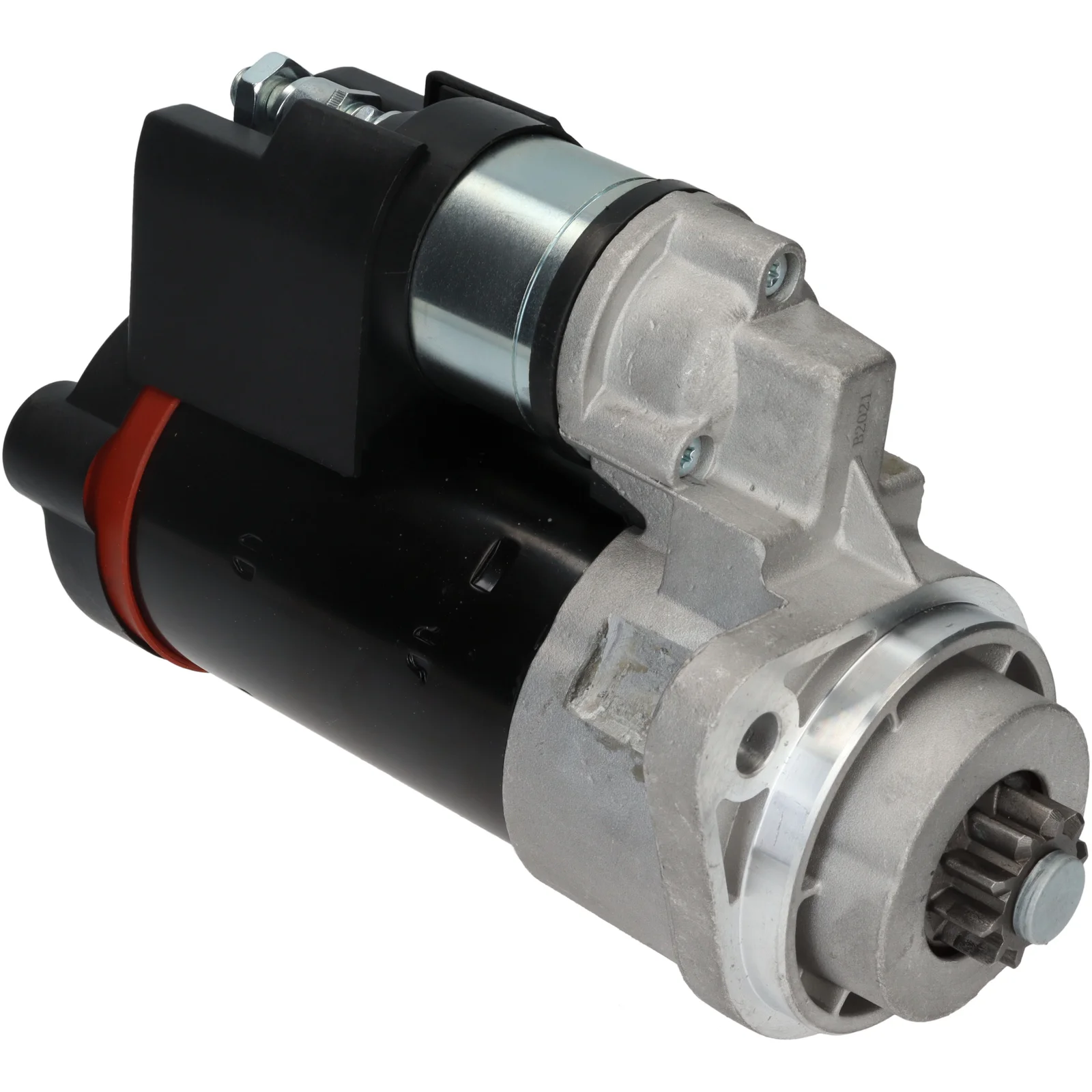

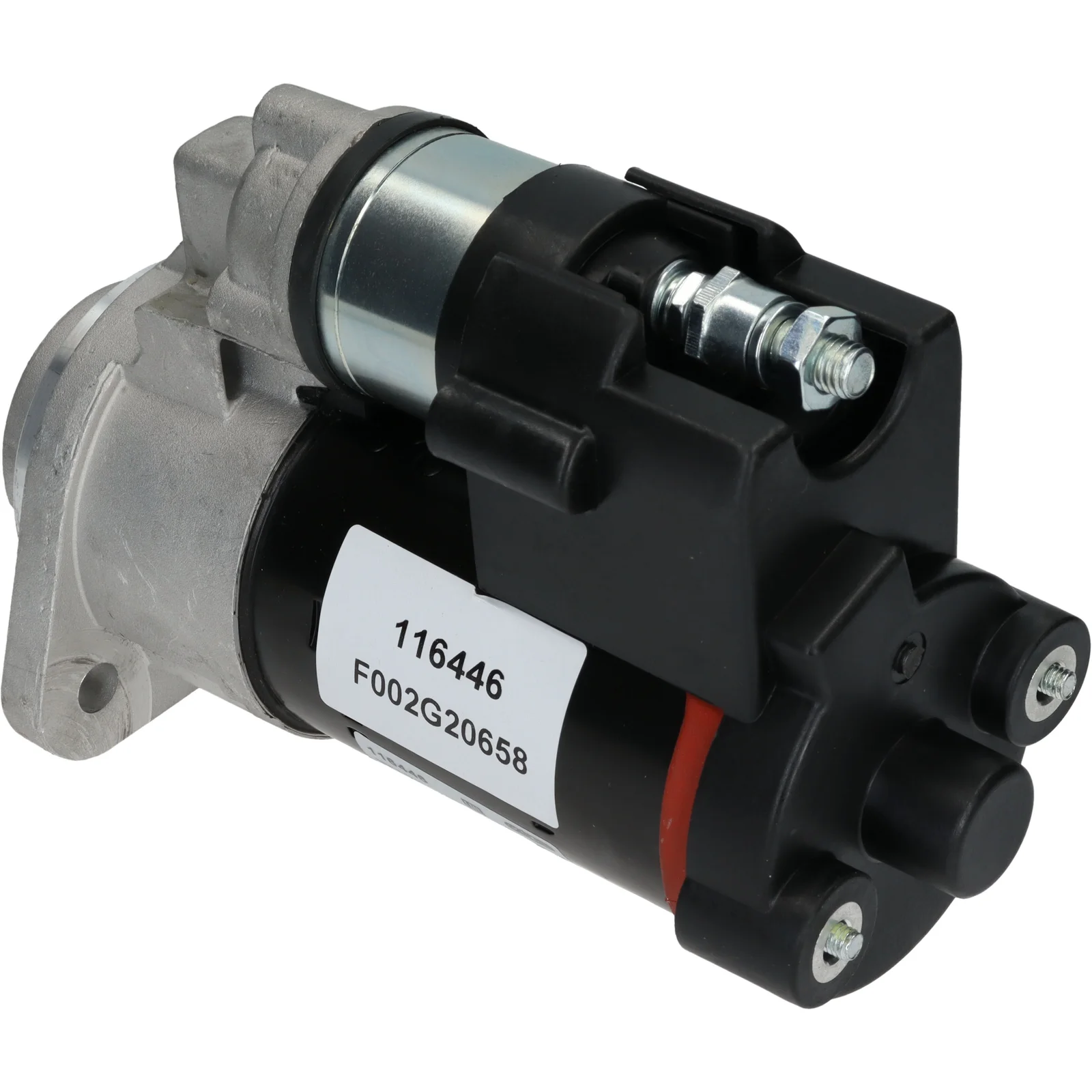

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mount. flange: 82.50
Drive distance: 35.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 195.00
Distance / front: 38.50
Number / teeth: 10
B+: M10
Position / B+: 60
Position / 50: 42
Terminal 50: M5
Gear type: GR
Distance in millimeters: 104.50
Rotation: CW
Total length in millimeters: 234.00
Number of mounting holes: 2 (0)

Files

  • Description
    Voltage: 12
    kW: 2.5
    Mount. flange: 82.50
    Drive distance: 35.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 195.00
    Distance / front: 38.50
    Number / teeth: 10
    B+: M10
    Position / B+: 60
    Position / 50: 42
    Terminal 50: M5
    Gear type: GR
    Distance in millimeters: 104.50
    Rotation: CW
    Total length in millimeters: 234.00
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles
