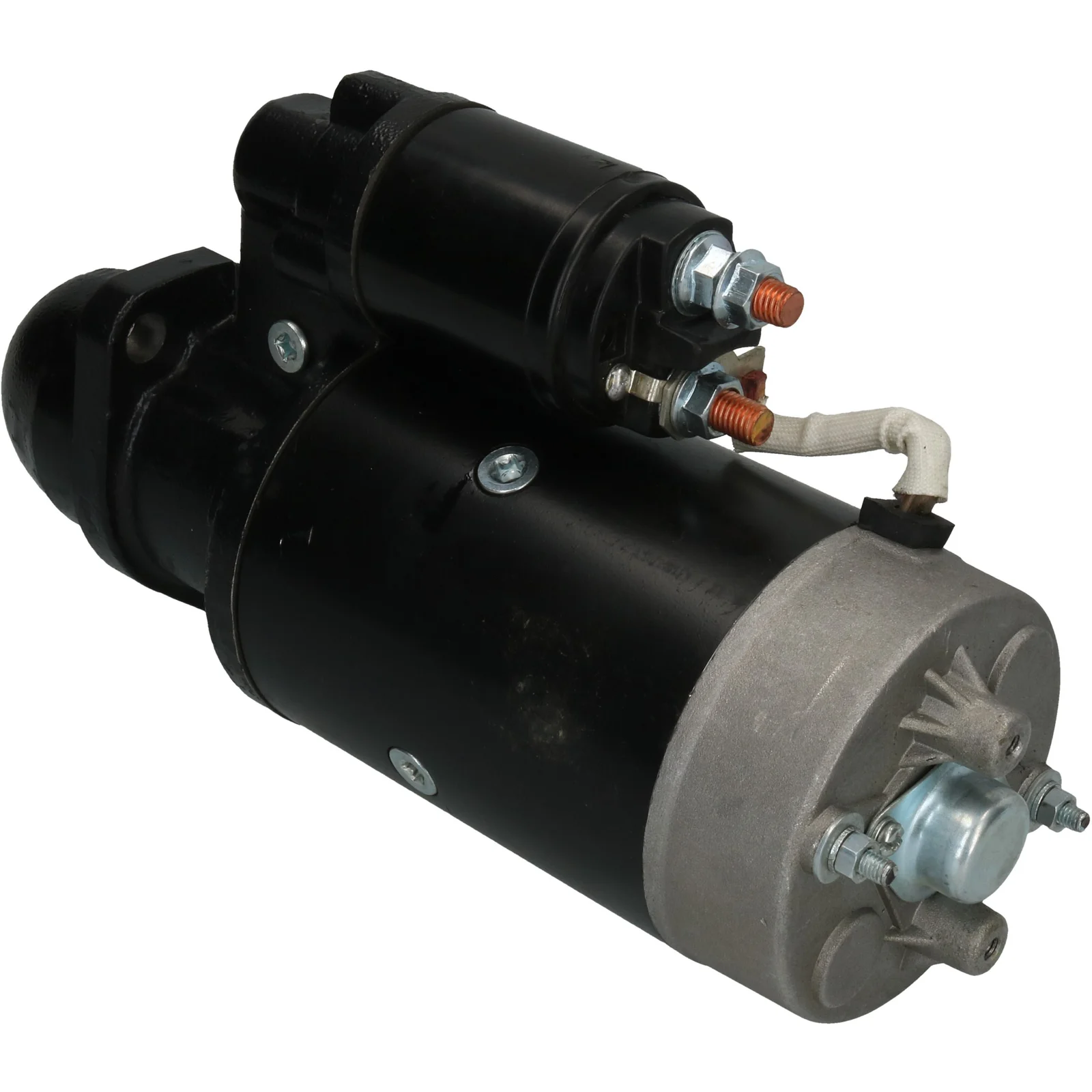

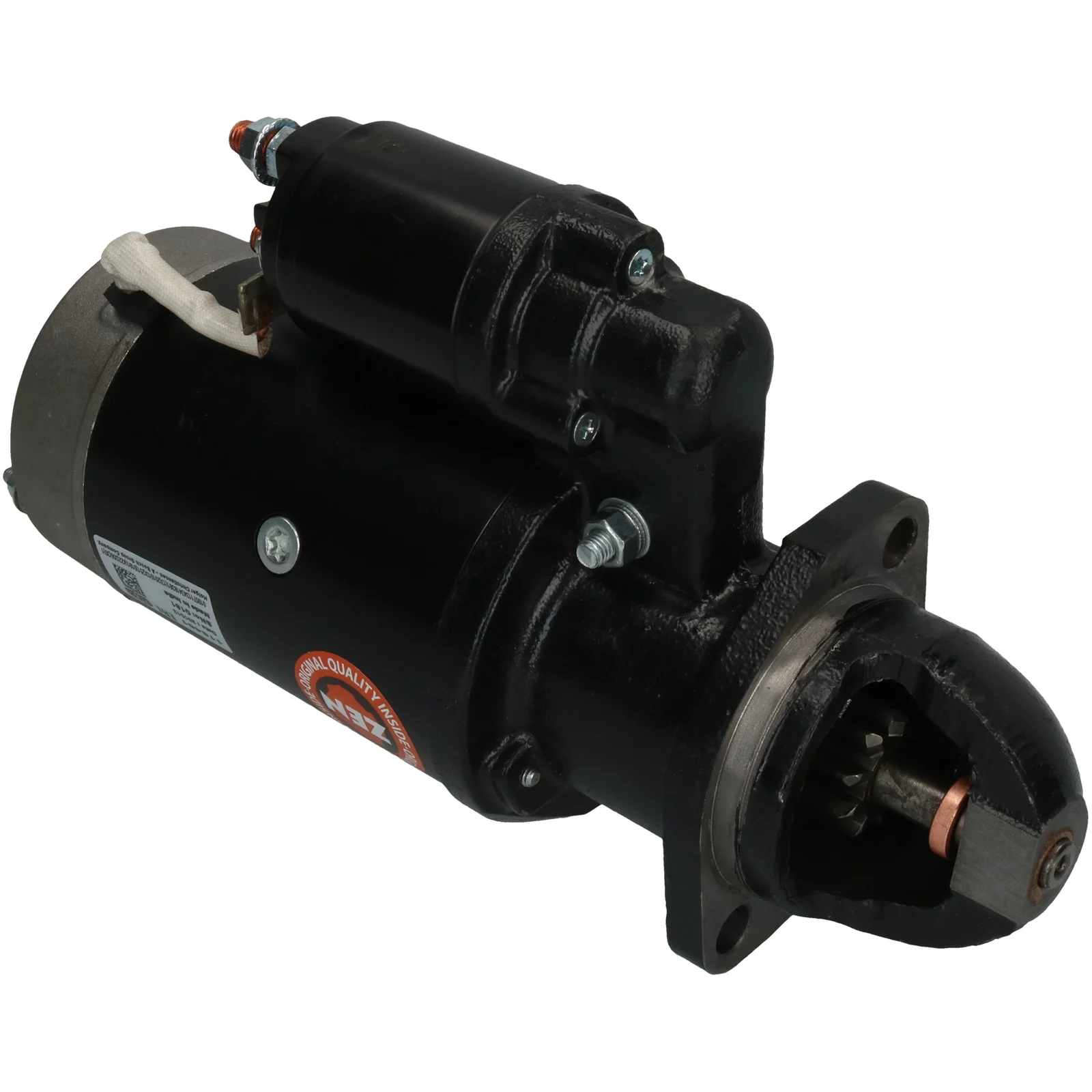

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116461

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.7
Mounting flange: 82.50
Drive distance: 20.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 273.00
Distance / front: 67.50
Number / teeth: 9
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M4
Gear type: DD
Distance in mm: 105.00
Rotation: CW
Total length in mm: 340.50
Number / mounting holes: 2 (0)

Files

  • OEM
    azj3220, C000900060150, F032116461, 11.130.671, 0001362309, 0001367011, 41100090005, 41100090007, 41100090009

  • Normalised article numbler
    azj3220, c000900060150, cst10367, f032116461, is0671, ms332, 32321, 252093, 255169, 0001362309, 0001367011, 11130671, 600076092, 780002092, 943217408, 41100090005, 41100090007, 41100090009
  • Description
    Voltage: 12
    kW: 2.7
    Mounting flange: 82.50
    Drive distance: 20.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 273.00
    Distance / front: 67.50
    Number / teeth: 9
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M4
    Gear type: DD
    Distance in mm: 105.00
    Rotation: CW
    Total length in mm: 340.50
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3220, C000900060150, F032116461, 11.130.671, 0001362309, 0001367011, 41100090005, 41100090007, 41100090009

    • Normalised article numbler
      azj3220, c000900060150, cst10367, f032116461, is0671, ms332, 32321, 252093, 255169, 0001362309, 0001367011, 11130671, 600076092, 780002092, 943217408, 41100090005, 41100090007, 41100090009
