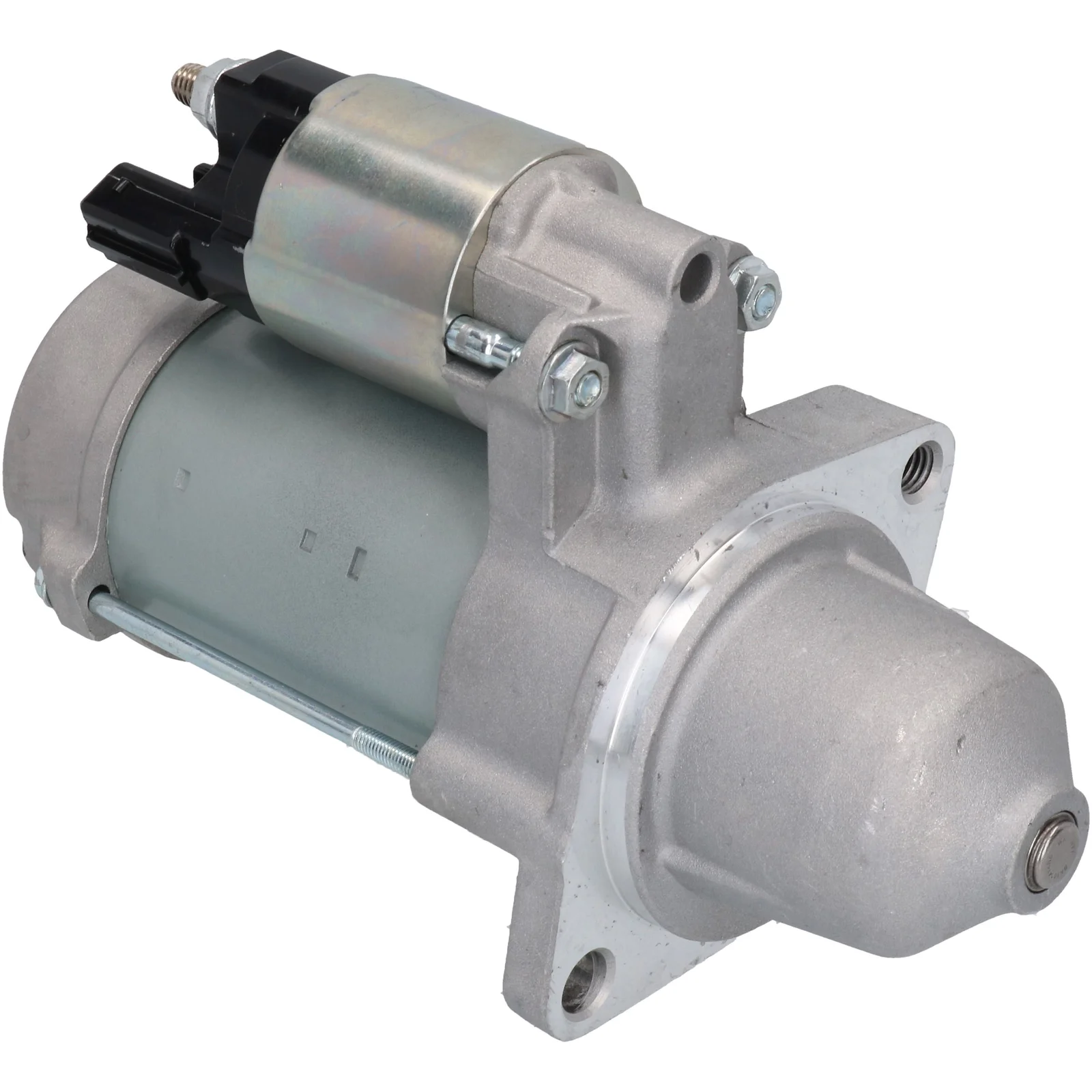

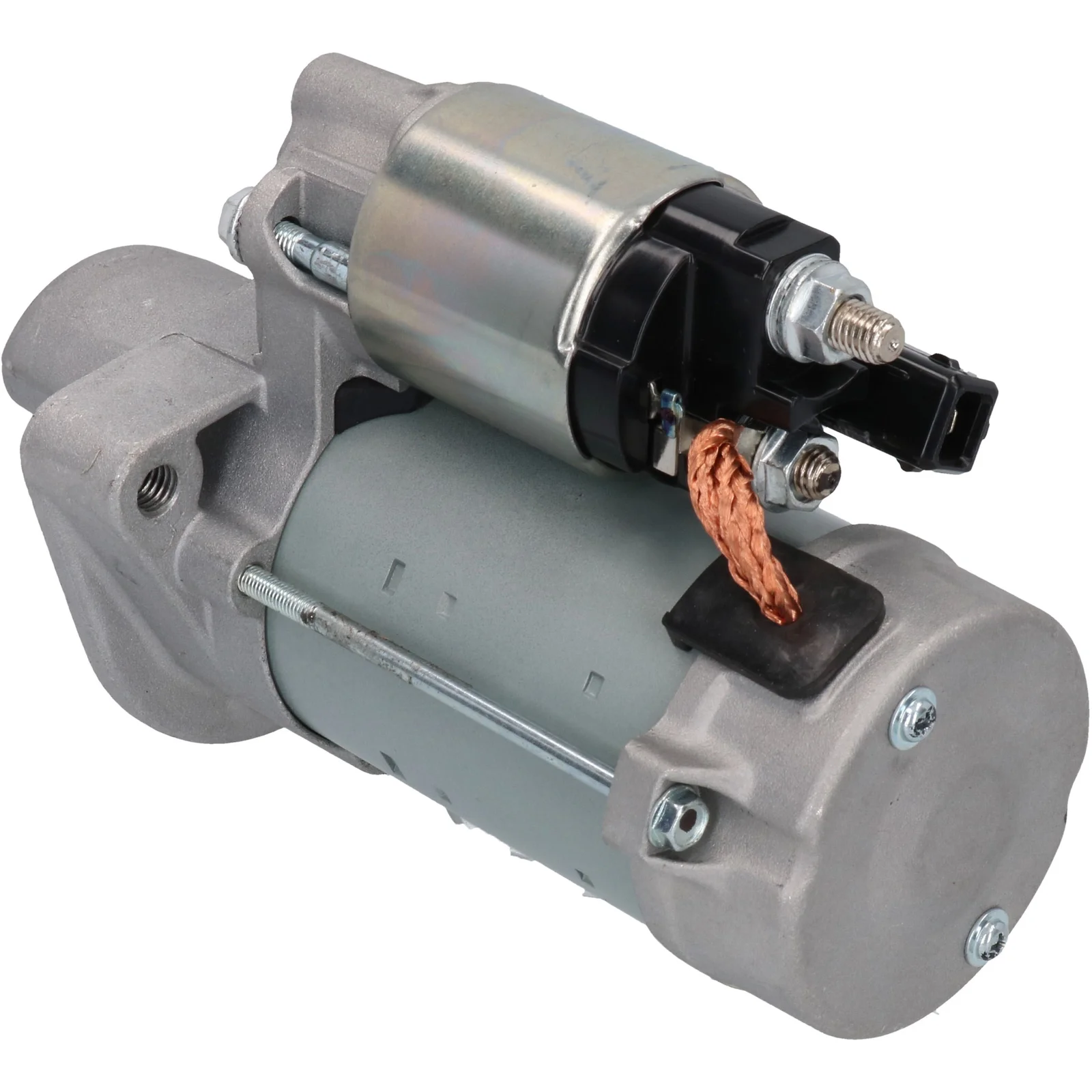

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116464

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.5, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 1.5
Mounting flange: 76.20
Drive distance: 25.50
Mounting hole 2 mm: 11.00
Distance / back: 152.00
Distance / front: 64.50
Number / teeth: 13
B+: M8
Position / B+: 60
Position / 50: 20
Terminal 50: Plug
Gear type: GR
Distributor mm: 105.00
Rotation: CW
Total length mm: 216.50
Number / mounting holes: 2 (1)

Files

  • OEM
    F032116464, 428000-9130, 428000-9131, 7631558, 7631559, 12417631558, 12417631559

  • Normalised article numbler
    cst40439, dsn1376, f032116464, s6263denso, s6263s, 19248n, 255021, 458964, 7631558, 7631559, 11090361, 210553132, 315059132, 4280009130, 4280009131, 12417631558, 12417631559
  • Description
    Voltage: 12
    kW: 1.5
    Mounting flange: 76.20
    Drive distance: 25.50
    Mounting hole 2 mm: 11.00
    Distance / back: 152.00
    Distance / front: 64.50
    Number / teeth: 13
    B+: M8
    Position / B+: 60
    Position / 50: 20
    Terminal 50: Plug
    Gear type: GR
    Distributor mm: 105.00
    Rotation: CW
    Total length mm: 216.50
    Number / mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116464, 428000-9130, 428000-9131, 7631558, 7631559, 12417631558, 12417631559

    • Normalised article numbler
      cst40439, dsn1376, f032116464, s6263denso, s6263s, 19248n, 255021, 458964, 7631558, 7631559, 11090361, 210553132, 315059132, 4280009130, 4280009131, 12417631558, 12417631559
