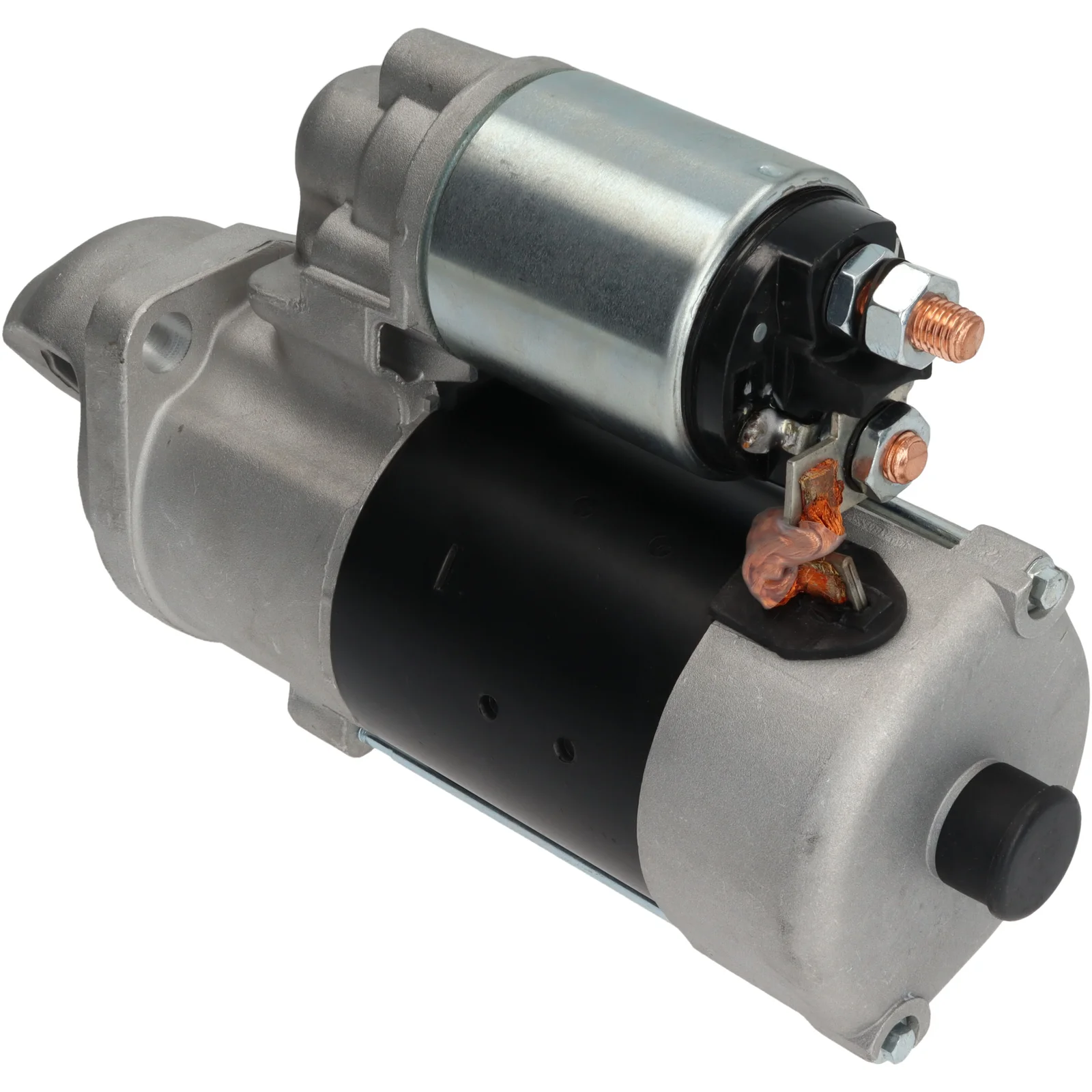

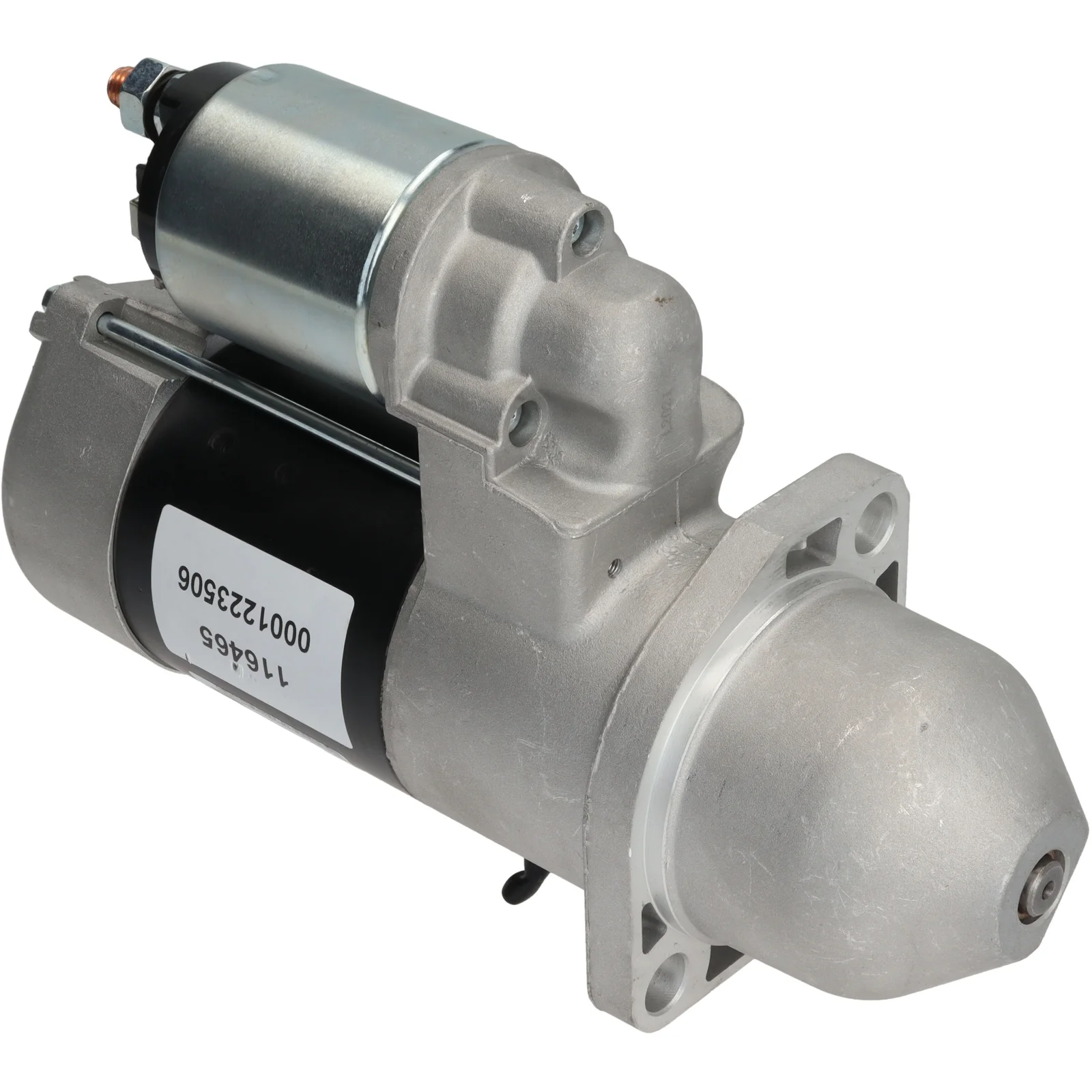

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116465

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.6, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.6
Mounting flange: 82.50
Drive distance: 22.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 216.00
Distance / front: 67.00
Number / teeth: 11
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M4
Gear type: GR
Distance in mm: 105.00
Rotation: CW
Total length in mm: 283.00
Number / mounting holes: 2 (0)
