HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116472

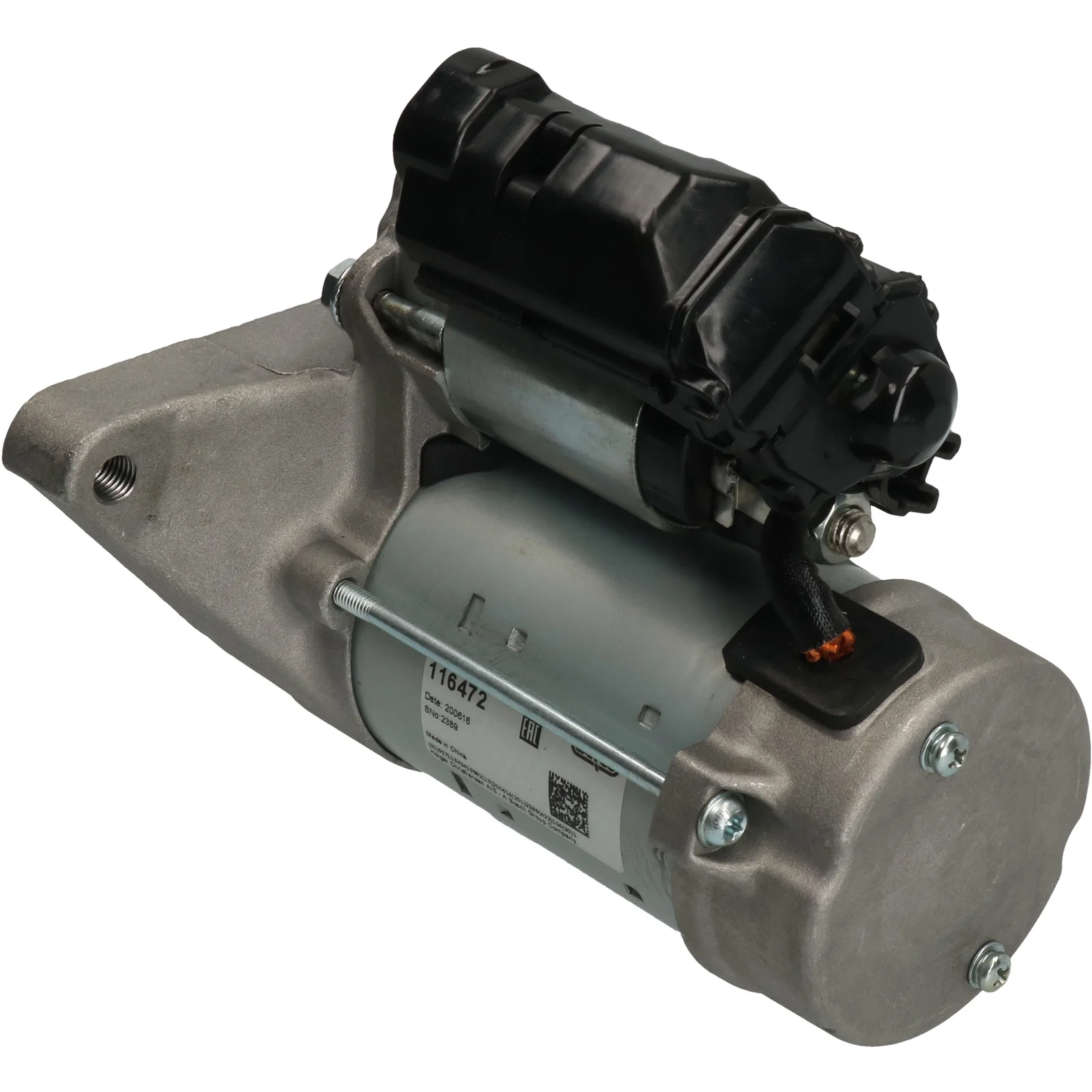

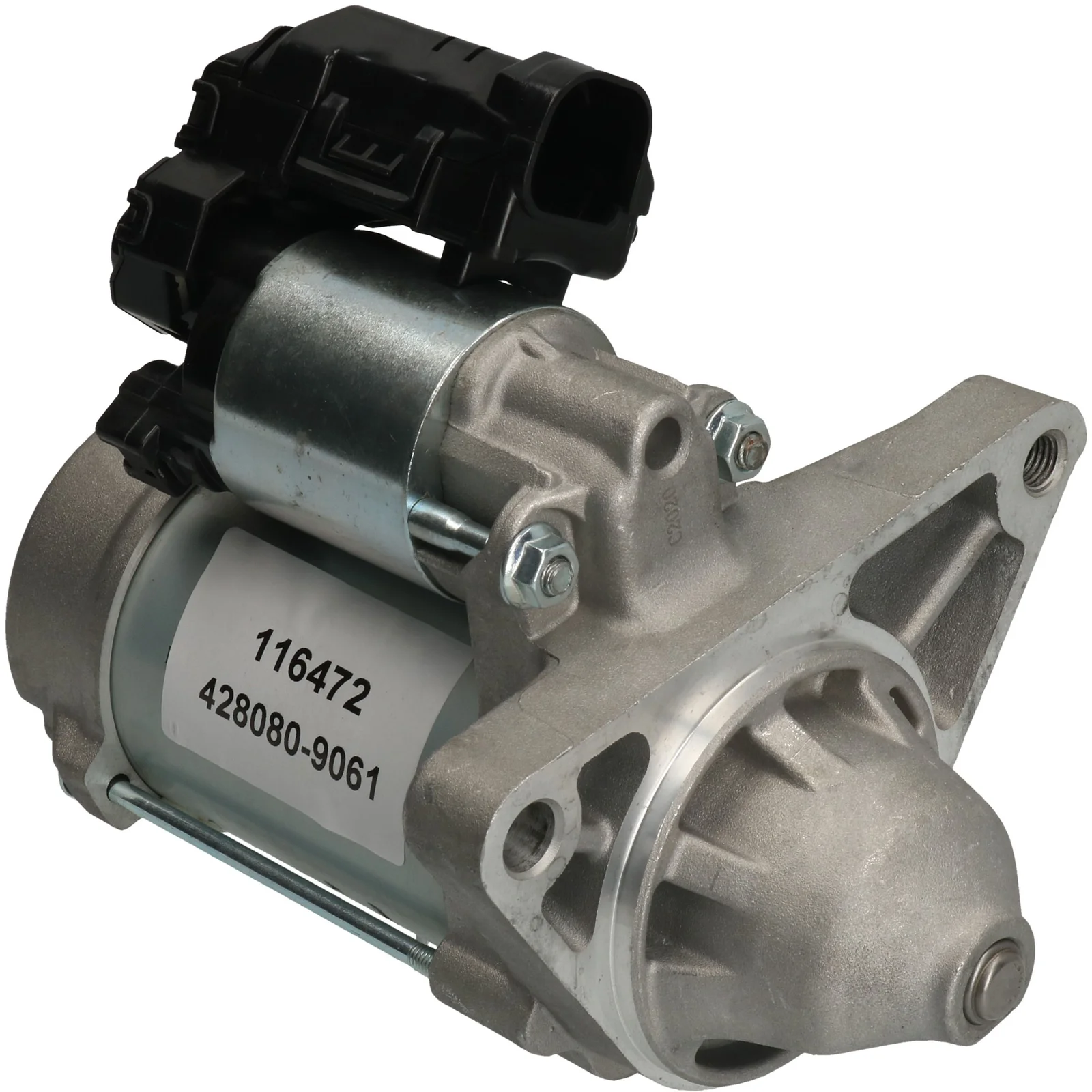

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 74.00
Drive distance: 13.00
Mounting hole 2 mm: 11.00
Distance/back: 154.50
Distance/front: 47.00
Number of teeth: 9
B+: M8
Position/50: 20
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 121.50
Rotation: CW
Total length in millimeters: 201.50
Number of mounting holes: 2 (1)

Files

  • OEM
    F032116472, 28100-0N110, 428000-9060, 428000-9061, 428080-9061

  • Normalised article numbler
    cst40427, drs0924, dsn1234, f032116472, s6327s, 255277, 281000n110, 11040936, 190926092, 4280009060, 4280009061, 4280809061
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 74.00
    Drive distance: 13.00
    Mounting hole 2 mm: 11.00
    Distance/back: 154.50
    Distance/front: 47.00
    Number of teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 121.50
    Rotation: CW
    Total length in millimeters: 201.50
    Number of mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032116472, 28100-0N110, 428000-9060, 428000-9061, 428080-9061

    • Normalised article numbler
      cst40427, drs0924, dsn1234, f032116472, s6327s, 255277, 281000n110, 11040936, 190926092, 4280009060, 4280009061, 4280809061
