HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116474

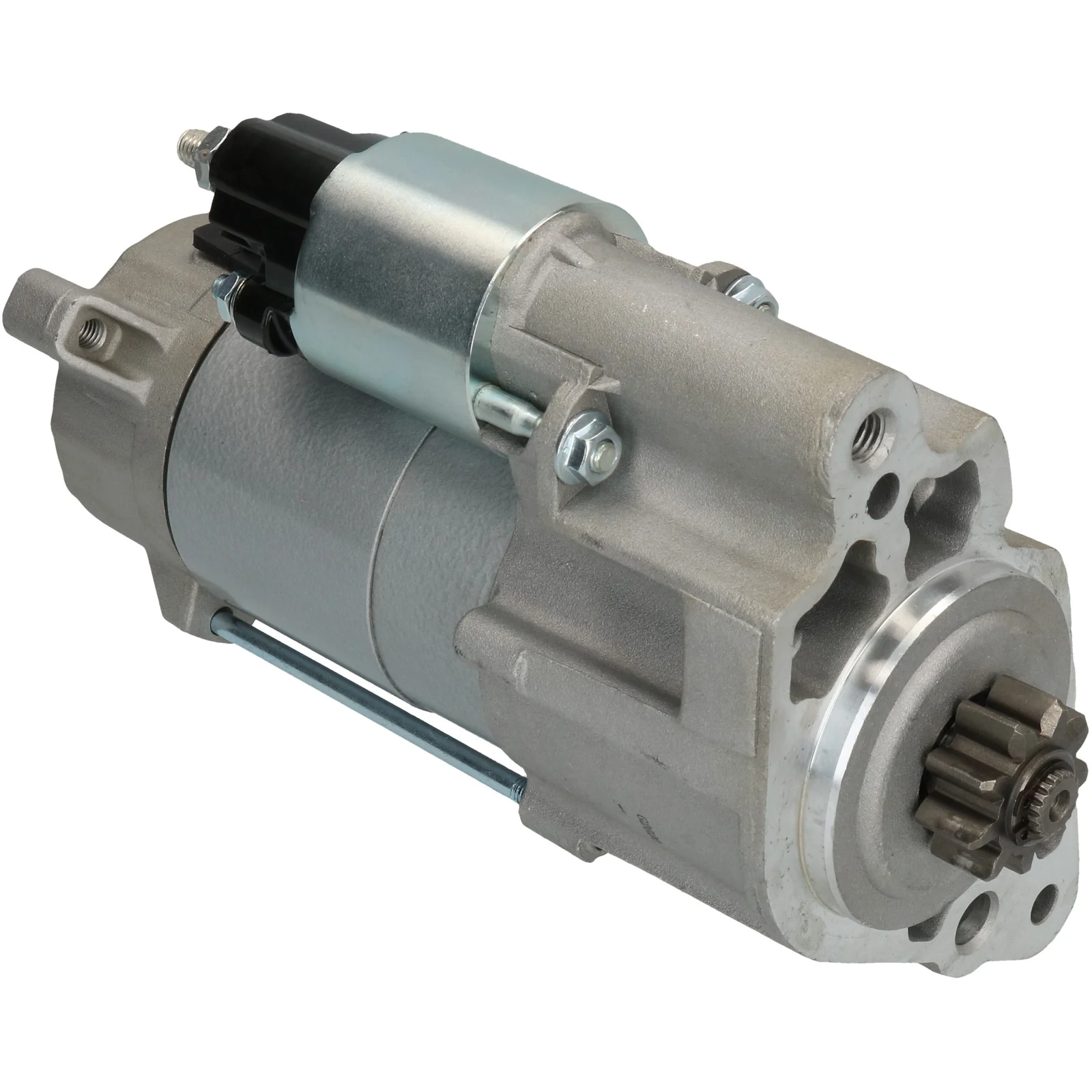

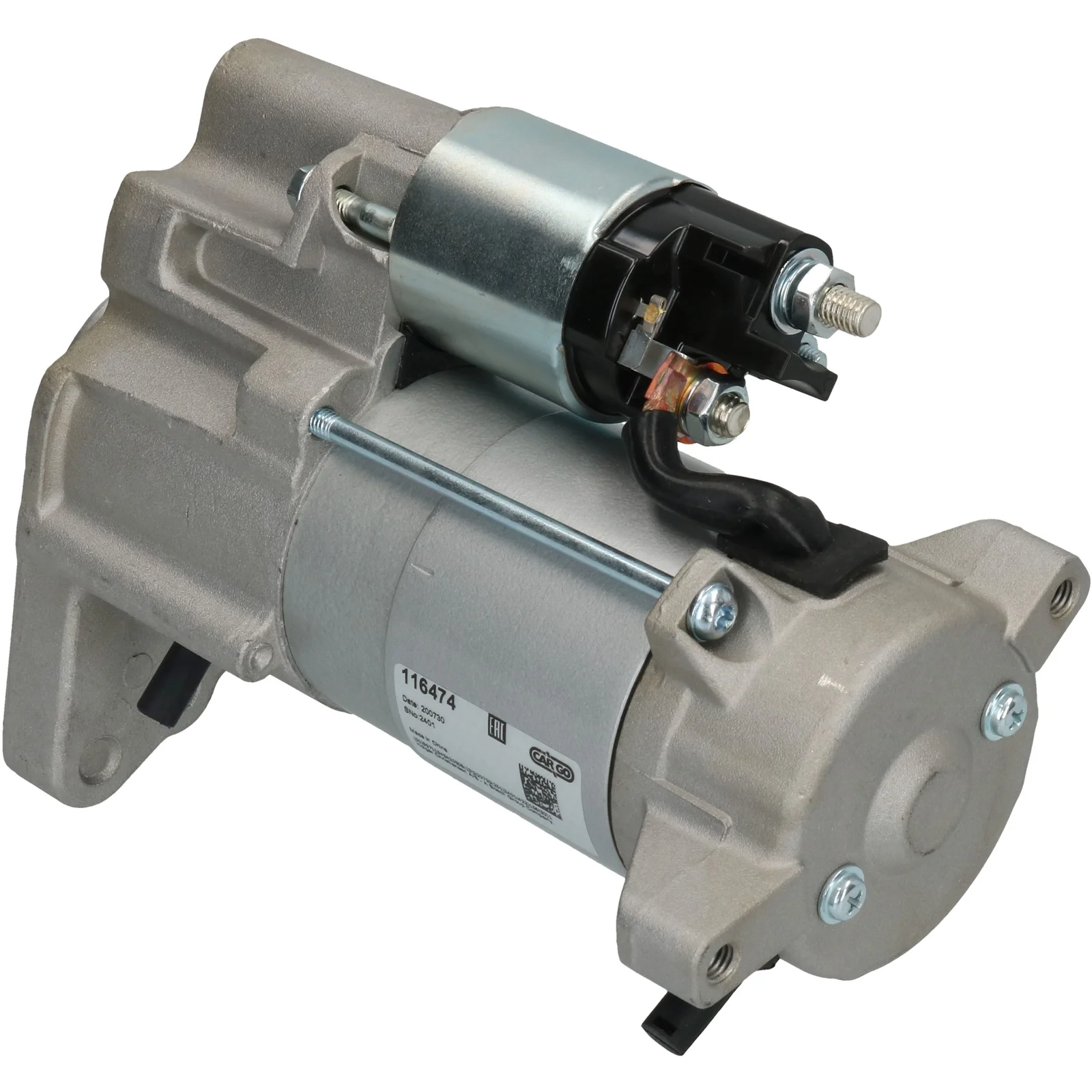

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 70.00
Drive dist.: 25.00
Mount. hole 3 mm: 11.00
Dist./back: 211.00
Dist./front: 30.00
No./teeth: 9
B+: M8
Position/B+: 5
Position/50: 20
Terminal 50: M6
Gear type: GR
Dist. 2: 24.50
Dist. 3: 130.00
Dist. mm: 146.50
Rotation: CW
Total length mm: 241.00
No./mount. holes: 3 (1)

Files

  • OEM
    c2c15283, c2c32959, C2D27865, C2D51168, F032116474, 4R8311001AC, 4R8311001AD, 8X2311001AA, 8X2311001AB, 8X2311001AC, 428000-1931, 428000-1932, 428000-4890, 428000-4891, 428000-4892

  • Normalised article numbler
    c2c15283, c2c32959, c2d27865, c2d51168, cst40385, drs0698, drs0738, dsn1300, f032116474, lrs02542, s6236denso, s6236s, 4r8311001ac, 4r8311001ad, 8ea011611981, 8x2311001aa, 8x2311001ab, 8x2311001ac, 220831, 220831a, 254214, 254468, 254575, 255228, 11040834, 314048092, 840506092, 4280001931, 4280001932, 4280004890, 4280004891, 4280004892
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 70.00
    Drive dist.: 25.00
    Mount. hole 3 mm: 11.00
    Dist./back: 211.00
    Dist./front: 30.00
    No./teeth: 9
    B+: M8
    Position/B+: 5
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 24.50
    Dist. 3: 130.00
    Dist. mm: 146.50
    Rotation: CW
    Total length mm: 241.00
    No./mount. holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      c2c15283, c2c32959, C2D27865, C2D51168, F032116474, 4R8311001AC, 4R8311001AD, 8X2311001AA, 8X2311001AB, 8X2311001AC, 428000-1931, 428000-1932, 428000-4890, 428000-4891, 428000-4892

    • Normalised article numbler
      c2c15283, c2c32959, c2d27865, c2d51168, cst40385, drs0698, drs0738, dsn1300, f032116474, lrs02542, s6236denso, s6236s, 4r8311001ac, 4r8311001ad, 8ea011611981, 8x2311001aa, 8x2311001ab, 8x2311001ac, 220831, 220831a, 254214, 254468, 254575, 255228, 11040834, 314048092, 840506092, 4280001931, 4280001932, 4280004890, 4280004891, 4280004892
