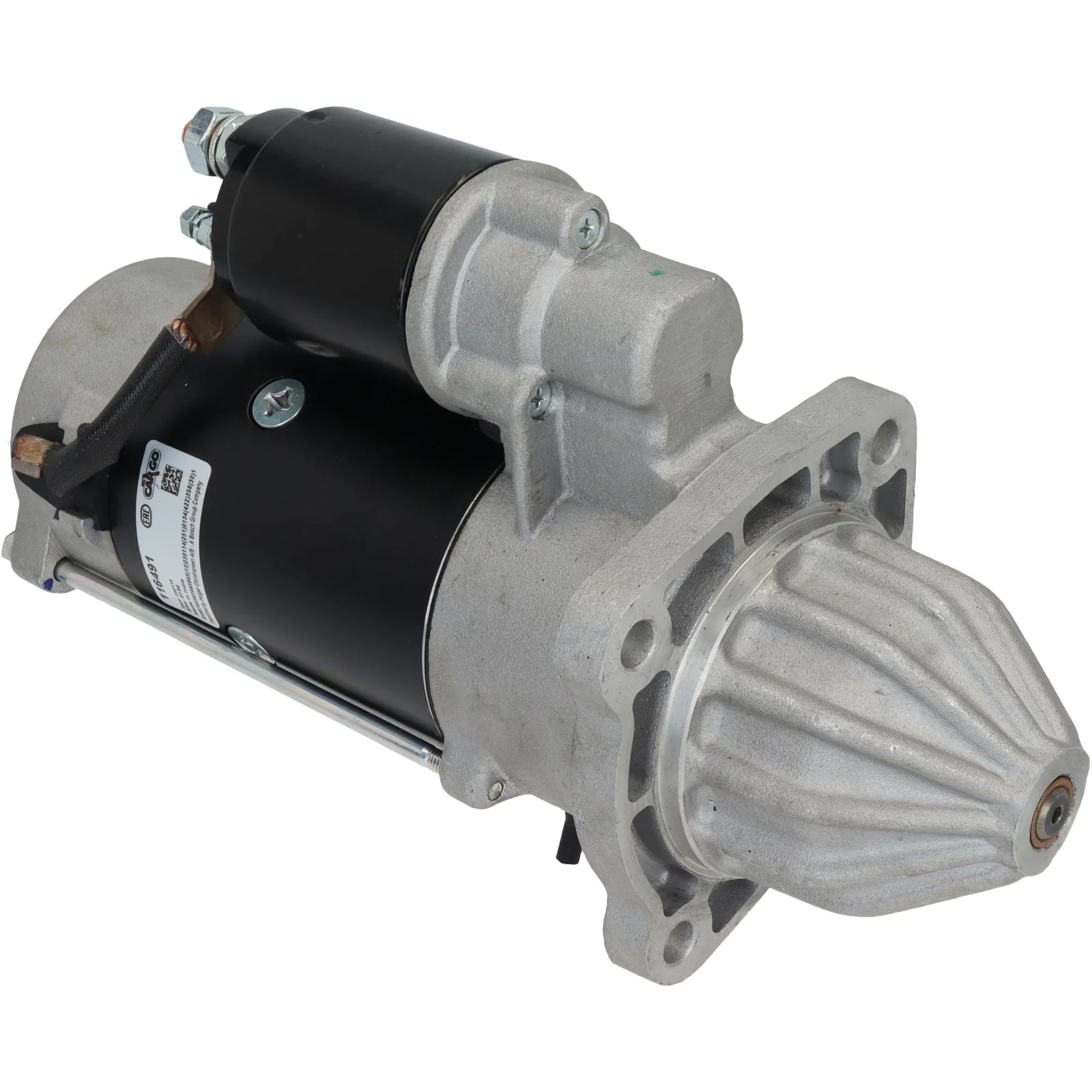

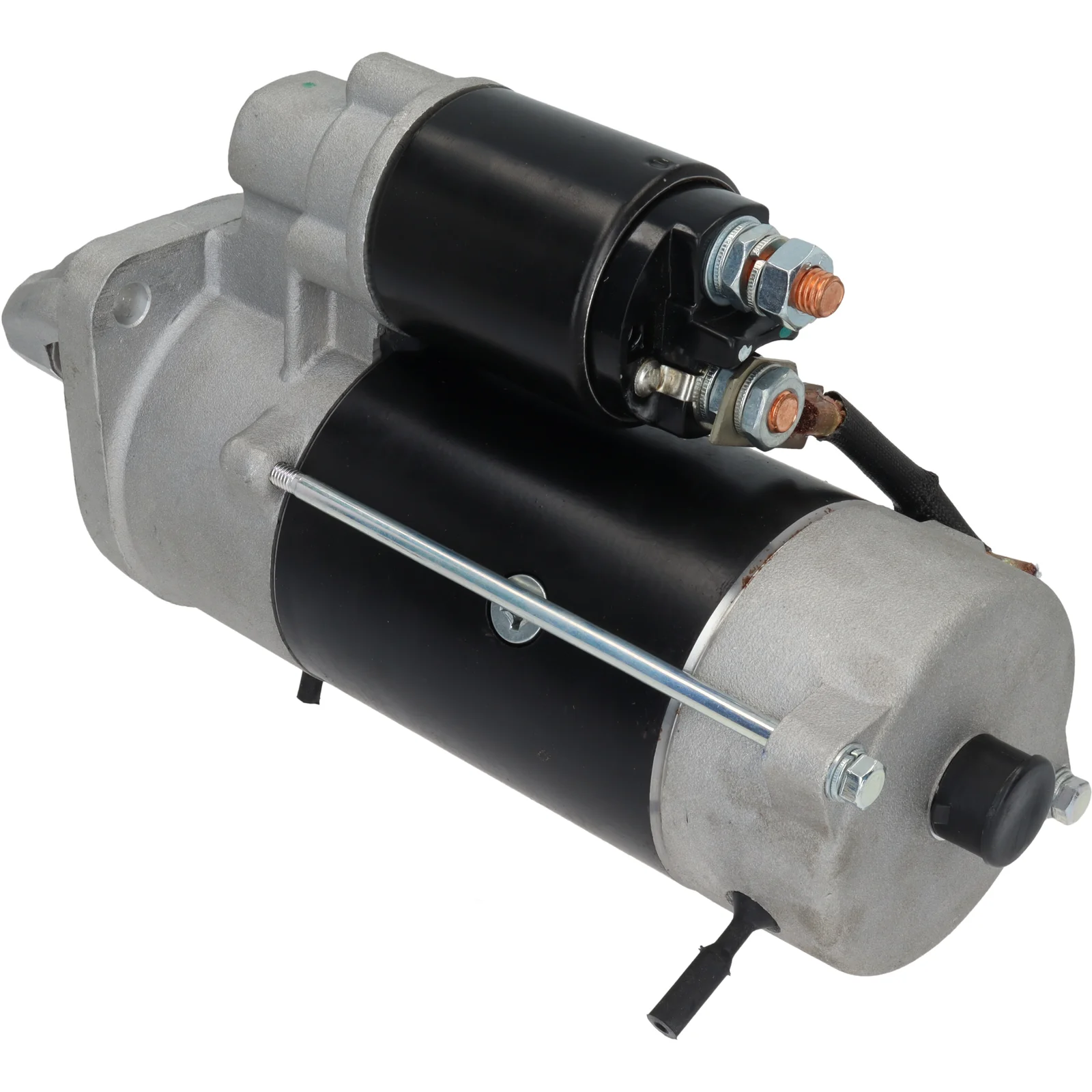

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116491

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 4.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 4.0
Mounting flange: 89.00
Drive distance: 28.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 246.00
Distance / front: 76.00
Number / teeth: 9
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 322.00
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4302, AZF4371, F032116491, 11.132.114, 11.132.365, 04125370, 4125370

  • Normalised article numbler
    azf4302, azf4371, cst21198, f032116491, is1366, ms651, s9432s, 04125370, 4125370, 11132114, 11132365, 720501093
  • Description
    Voltage: 12
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 28.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 246.00
    Distance / front: 76.00
    Number / teeth: 9
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 322.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4302, AZF4371, F032116491, 11.132.114, 11.132.365, 04125370, 4125370

    • Normalised article numbler
      azf4302, azf4371, cst21198, f032116491, is1366, ms651, s9432s, 04125370, 4125370, 11132114, 11132365, 720501093
