HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116496

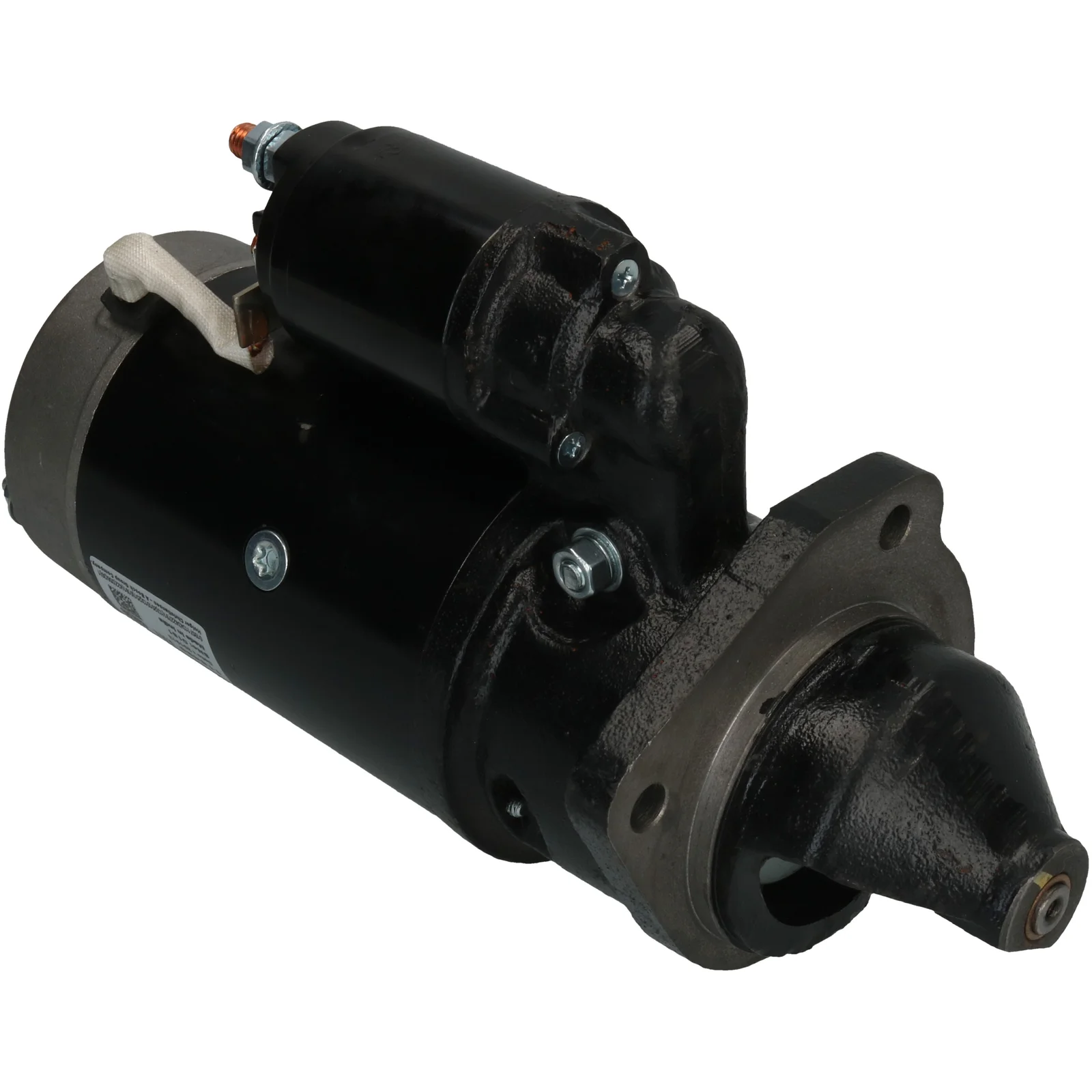

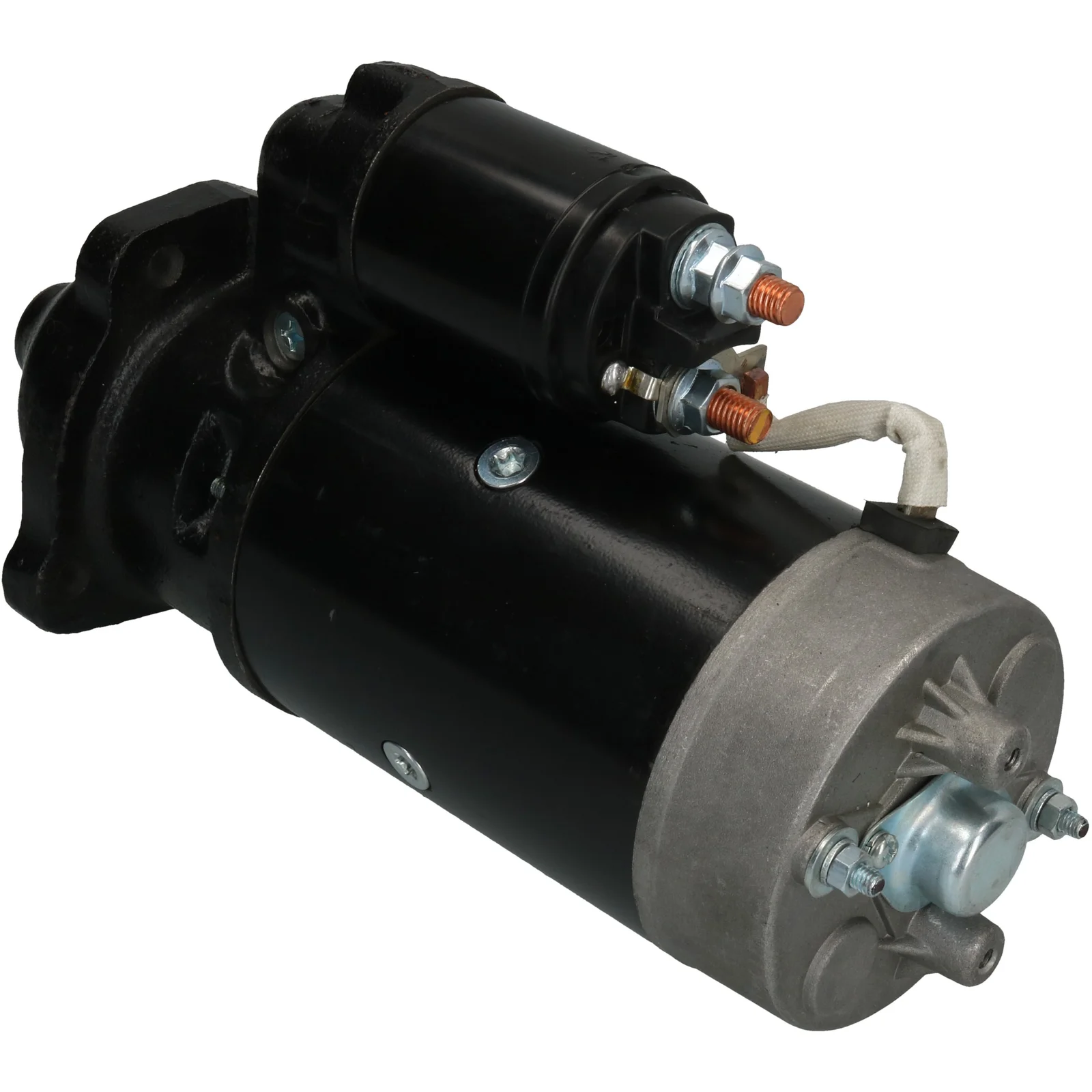

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 21.00
Mounting hole 3 mm: 11.50
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 11.50
Distance / back: 273.00
Distance / front: 70.00
Number / teeth: 9
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M4
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 343.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116496, 0001367007, 605720100083

  • Normalised article numbler
    cst10240, drs1210, f032116496, is0670, lrs00566, lrs01069, mrs740, s0469, 33445, 250337, 0001367007, 8811210, 42011210, 42369017, 500562093, 681007092, 943252282, 0986011210, 605720100083
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 21.00
    Mounting hole 3 mm: 11.50
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 11.50
    Distance / back: 273.00
    Distance / front: 70.00
    Number / teeth: 9
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 343.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116496, 0001367007, 605720100083

    • Normalised article numbler
      cst10240, drs1210, f032116496, is0670, lrs00566, lrs01069, mrs740, s0469, 33445, 250337, 0001367007, 8811210, 42011210, 42369017, 500562093, 681007092, 943252282, 0986011210, 605720100083
