Article no.: F032110443

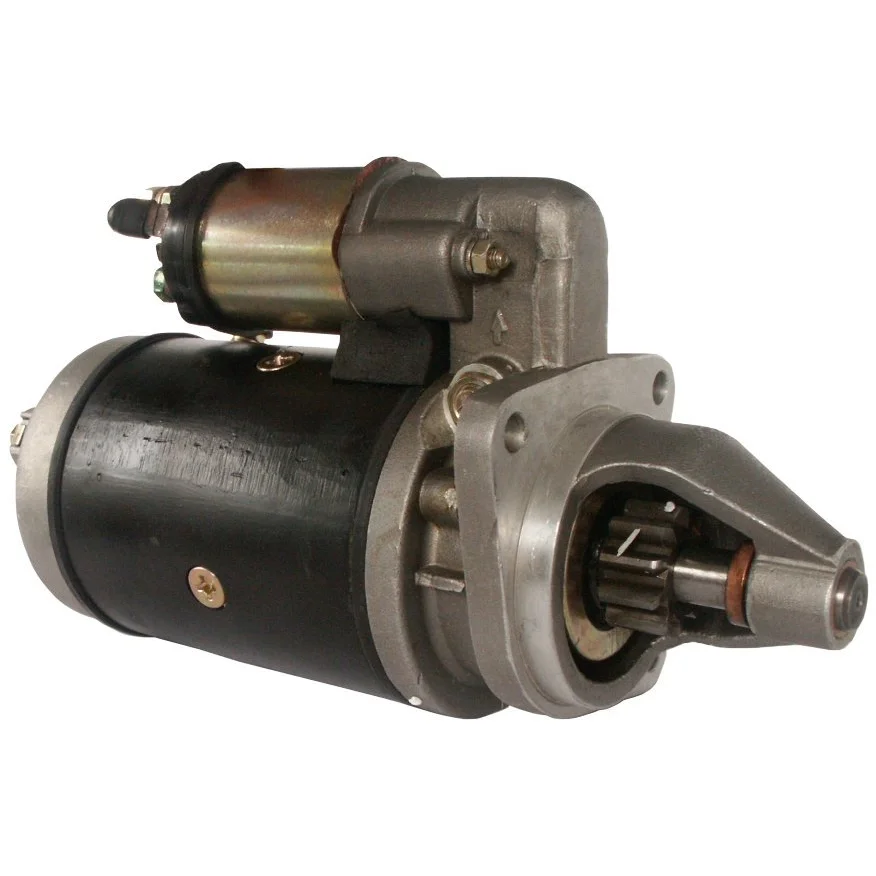

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.1, No./teeth: 10, Rotation: CW

Description

Massy-F. Starter motor M45,12V-2.1kW 12V - 2.1kW, 10k A - 89mm, B - 30mm Alternative 4.2kW = 91-441-1160 for Yourex product order LU LRS 124

Voltage: 12
kW: 2.1
Mounting flange: 89.00
Drive distance: 29.50
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance/rear: 216.00
Distance/front: 79.00
Number of teeth: 10
B+: M8
Position/50: 10
Terminal 50: 6.30
Gear type: DD
Distance 2: 126.50
Distance 3: 89.50
Distance mm: 89.50
Rotation: CW
Total length mm: 309.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 3 (0)

Files

  • OEM
    ADU1239, cs693, F032110443, GNU4542, GXE4542, GXE4596, NSB 503, nsb503, RGO 110443, S12-84, s12-84, 0001 362 020, 0001 362 093, 1873a010, 2873 A010, 2873a010, 2873a102, 2873d003, 26148, 26148a, 26148f, 26148h, 26148n, 26196, 26196a, 26196b, 26283, 26283a, 26283f, 26283h, 26283J, 26283k, 26283r, 26375, 26375a, 26375d, 26418, 26422, 26422a, 27417, 27417a, 27417b, 27417d, 27435, 27435a, 27467, 27471, 27472, 27478, 27486, 31179, 388186A1, 388186A2, 388186A3, 997267, 0001362020, 0001362093, 1447586M91, 1447773R1, 2873121, 2873141, 3542190M92, 26925194A, 26925194d, 73327998, 9000143413

  • Normalised article numbler
    adu1239, bso7004, cs693, cst10562, cst25105, drs3336, drs3473, f032110443, gnu4542, gxe4542, gxe4596, lrs00124, lrs02045, ms21, nsb503, rgo110443, s0762s, s1284, s4011, str25023, 8ea012527091, 8ea730209001, 1873a010, 2873a010, 2873a102, 2873d003, 4093, 8722, 10693, 17644, 17644n, 22301lu, 26148, 26148a, 26148f, 26148h, 26148n, 26196, 26196a, 26196b, 26283, 26283a, 26283f, 26283h, 26283j, 26283k, 26283r, 26375, 26375a, 26375d, 26418, 26422, 26422a, 27417, 27417a, 27417b, 27417d, 27435, 27435a, 27467, 27471, 27472, 27478, 27486, 30613r, 31179, 33834, 103540, 220741, 220741a, 250334, 251400, 388186a1, 388186a2, 388186a3, 997267, 0001362020, 0001362093, 1447586m91, 1447773r1, 2873121, 2873141, 3542190m92, 8212536, 11020000, 11090037, 20500124, 26925194a, 26925194d, 063227486, 73327998, 600017102, 644006102, 700518103, 700538103, 0986020001, 0986023510, 9000143413
  • Description
    Massy-F. Starter motor M45,12V-2.1kW 12V - 2.1kW, 10k A - 89mm, B - 30mm Alternative 4.2kW = 91-441-1160 for Yourex product order LU LRS 124

    Voltage: 12
    kW: 2.1
    Mounting flange: 89.00
    Drive distance: 29.50
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance/rear: 216.00
    Distance/front: 79.00
    Number of teeth: 10
    B+: M8
    Position/50: 10
    Terminal 50: 6.30
    Gear type: DD
    Distance 2: 126.50
    Distance 3: 89.50
    Distance mm: 89.50
    Rotation: CW
    Total length mm: 309.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      ADU1239, cs693, F032110443, GNU4542, GXE4542, GXE4596, NSB 503, nsb503, RGO 110443, S12-84, s12-84, 0001 362 020, 0001 362 093, 1873a010, 2873 A010, 2873a010, 2873a102, 2873d003, 26148, 26148a, 26148f, 26148h, 26148n, 26196, 26196a, 26196b, 26283, 26283a, 26283f, 26283h, 26283J, 26283k, 26283r, 26375, 26375a, 26375d, 26418, 26422, 26422a, 27417, 27417a, 27417b, 27417d, 27435, 27435a, 27467, 27471, 27472, 27478, 27486, 31179, 388186A1, 388186A2, 388186A3, 997267, 0001362020, 0001362093, 1447586M91, 1447773R1, 2873121, 2873141, 3542190M92, 26925194A, 26925194d, 73327998, 9000143413

    • Normalised article numbler
      adu1239, bso7004, cs693, cst10562, cst25105, drs3336, drs3473, f032110443, gnu4542, gxe4542, gxe4596, lrs00124, lrs02045, ms21, nsb503, rgo110443, s0762s, s1284, s4011, str25023, 8ea012527091, 8ea730209001, 1873a010, 2873a010, 2873a102, 2873d003, 4093, 8722, 10693, 17644, 17644n, 22301lu, 26148, 26148a, 26148f, 26148h, 26148n, 26196, 26196a, 26196b, 26283, 26283a, 26283f, 26283h, 26283j, 26283k, 26283r, 26375, 26375a, 26375d, 26418, 26422, 26422a, 27417, 27417a, 27417b, 27417d, 27435, 27435a, 27467, 27471, 27472, 27478, 27486, 30613r, 31179, 33834, 103540, 220741, 220741a, 250334, 251400, 388186a1, 388186a2, 388186a3, 997267, 0001362020, 0001362093, 1447586m91, 1447773r1, 2873121, 2873141, 3542190m92, 8212536, 11020000, 11090037, 20500124, 26925194a, 26925194d, 063227486, 73327998, 600017102, 644006102, 700518103, 700538103, 0986020001, 0986023510, 9000143413
