HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116559

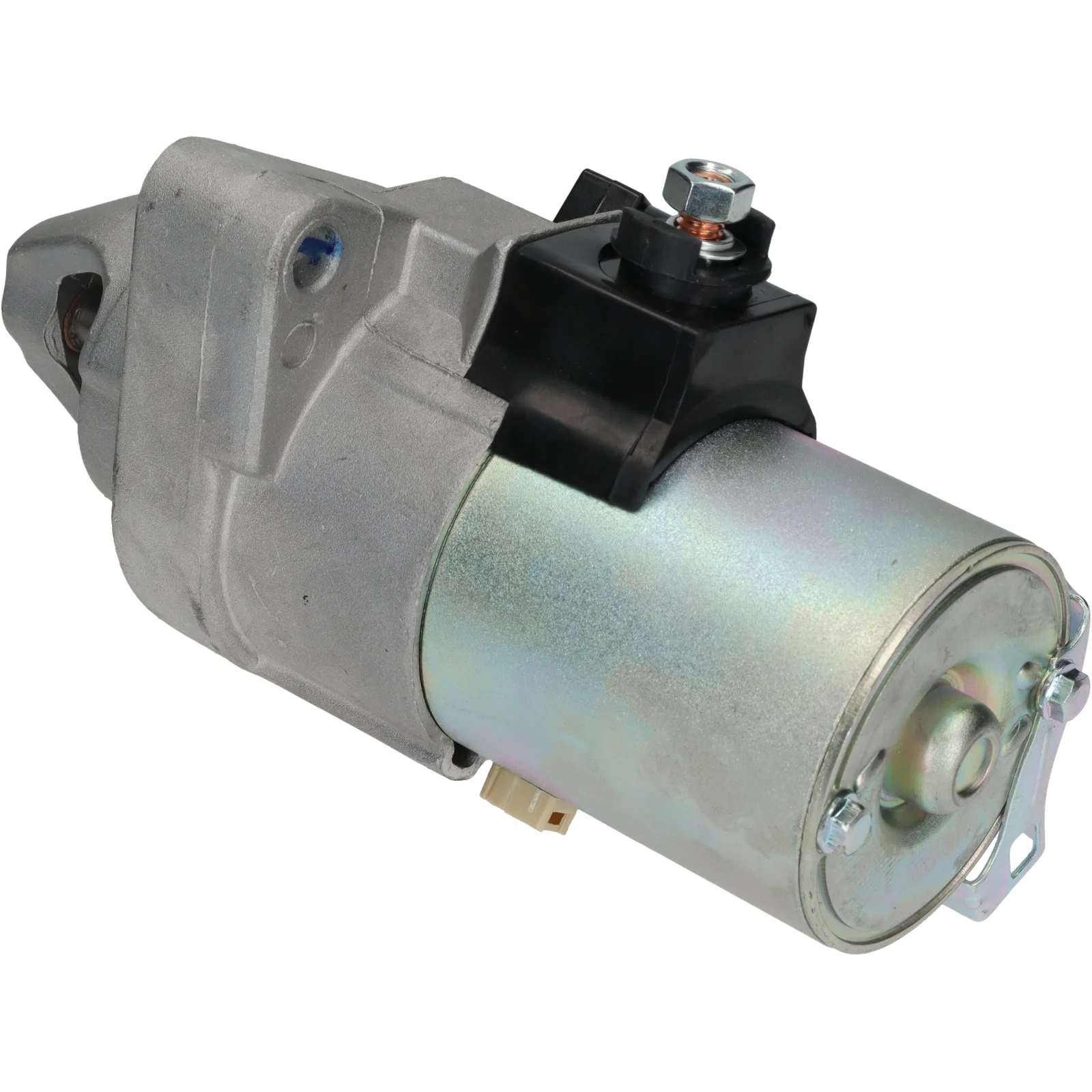

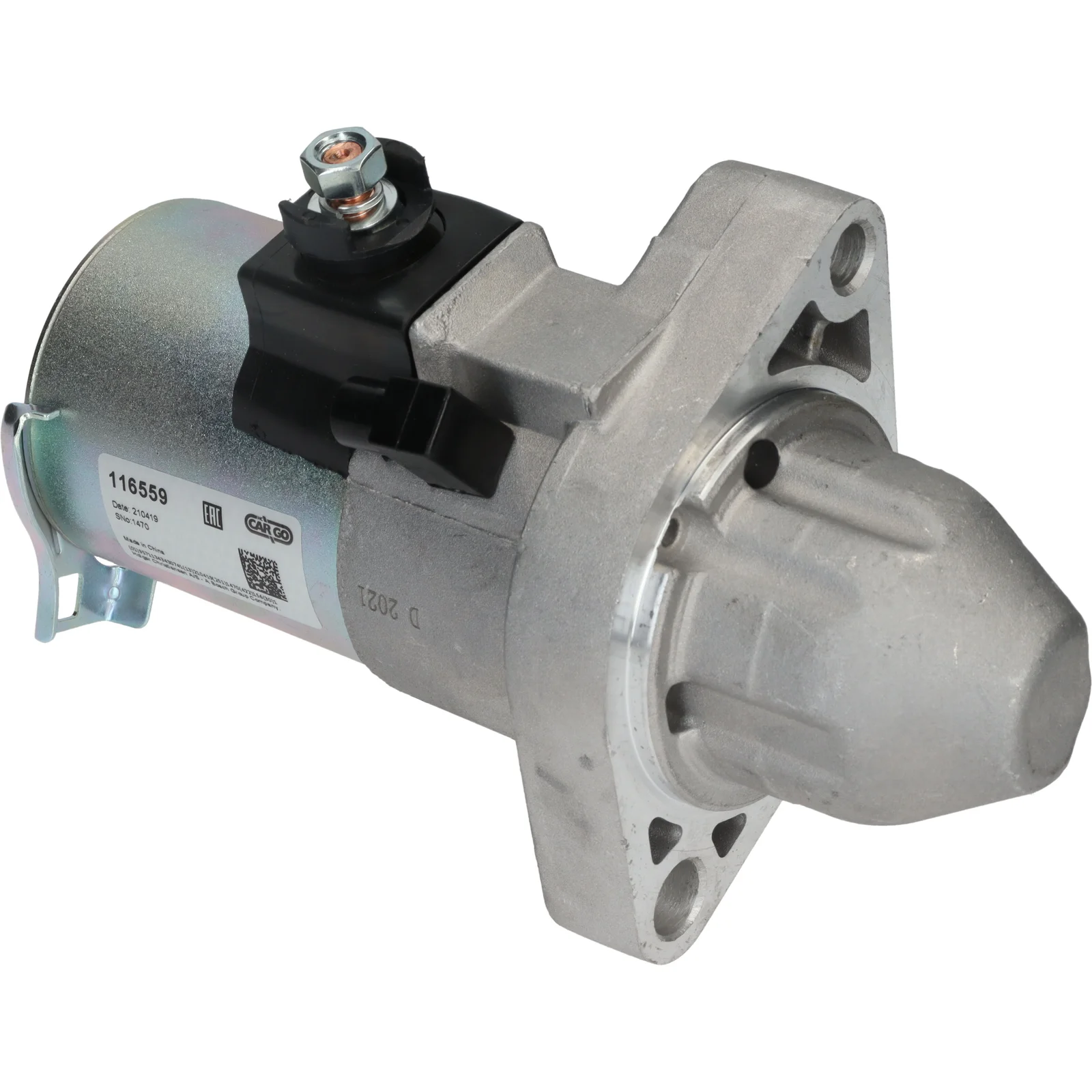

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 75.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 11.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 5
Terminal 50: Plug
Gear type: GR
Dist. mm: 115.50
Rotation: CW
Total length mm: 209.50
No./mount. holes: 2 (0)

Files

  • OEM
    F032116559, PND3J, sm612-05, sm612-10, 31200-PND-505, 31200-PND-A01, 31200-PND-A02, 31200-PND-A03, 31200-PND-A04, 31200-RAD-004, 31200-RAD-114, 31200-RTB-014

  • Normalised article numbler
    cst33126, f032116559, lrs02719, pnd3j, sm61205, sm61210, sr1332x, 0986jr1555, 17816, 17816n, 31200pnd505, 31200pnda01, 31200pnda02, 31200pnda03, 31200pnda04, 31200rad004, 31200rad114, 31200rtb014, 254392, 11040886, 120558092
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 75.00
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 11.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 5
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 115.50
    Rotation: CW
    Total length mm: 209.50
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116559, PND3J, sm612-05, sm612-10, 31200-PND-505, 31200-PND-A01, 31200-PND-A02, 31200-PND-A03, 31200-PND-A04, 31200-RAD-004, 31200-RAD-114, 31200-RTB-014

    • Normalised article numbler
      cst33126, f032116559, lrs02719, pnd3j, sm61205, sm61210, sr1332x, 0986jr1555, 17816, 17816n, 31200pnd505, 31200pnda01, 31200pnda02, 31200pnda03, 31200pnda04, 31200rad004, 31200rad114, 31200rtb014, 254392, 11040886, 120558092
