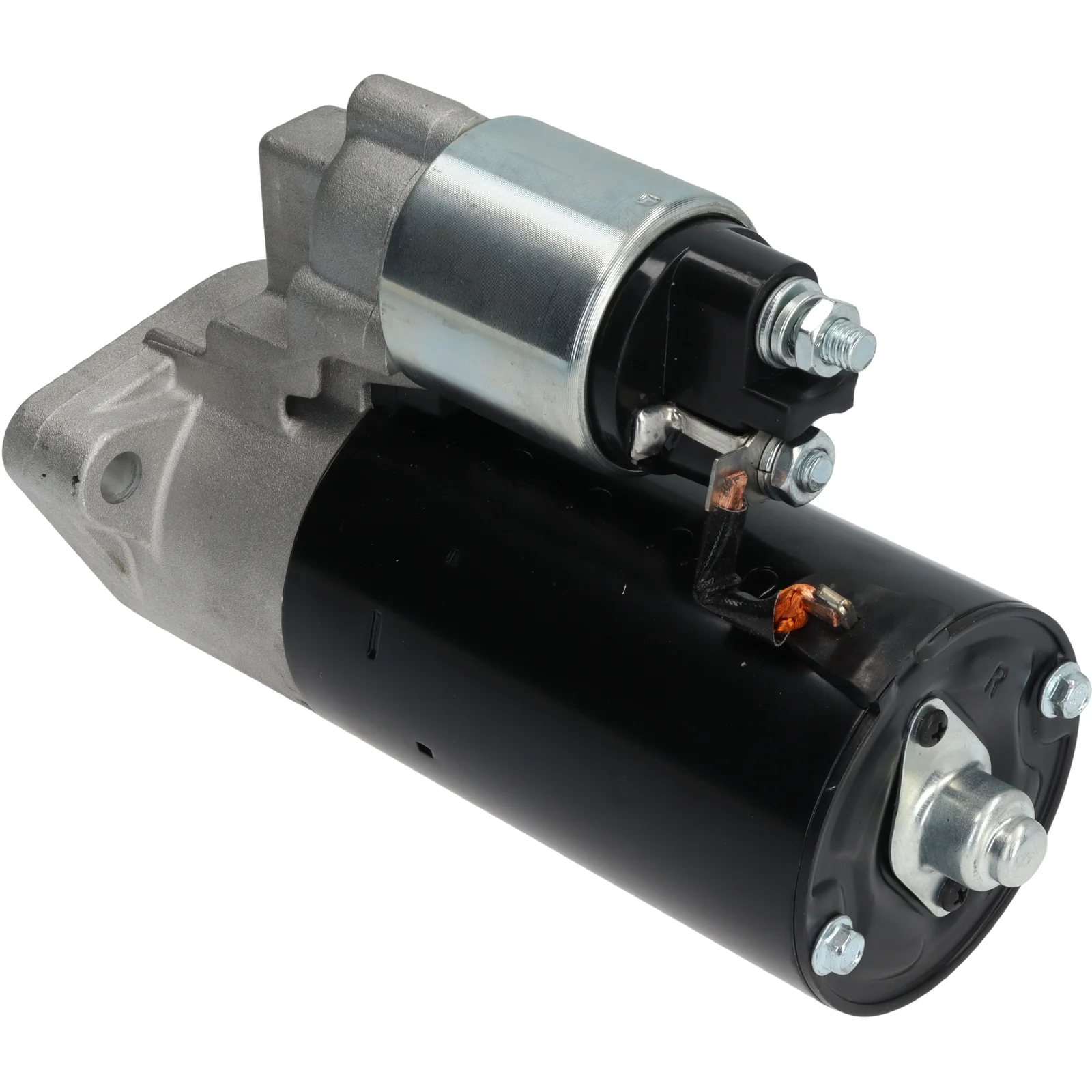

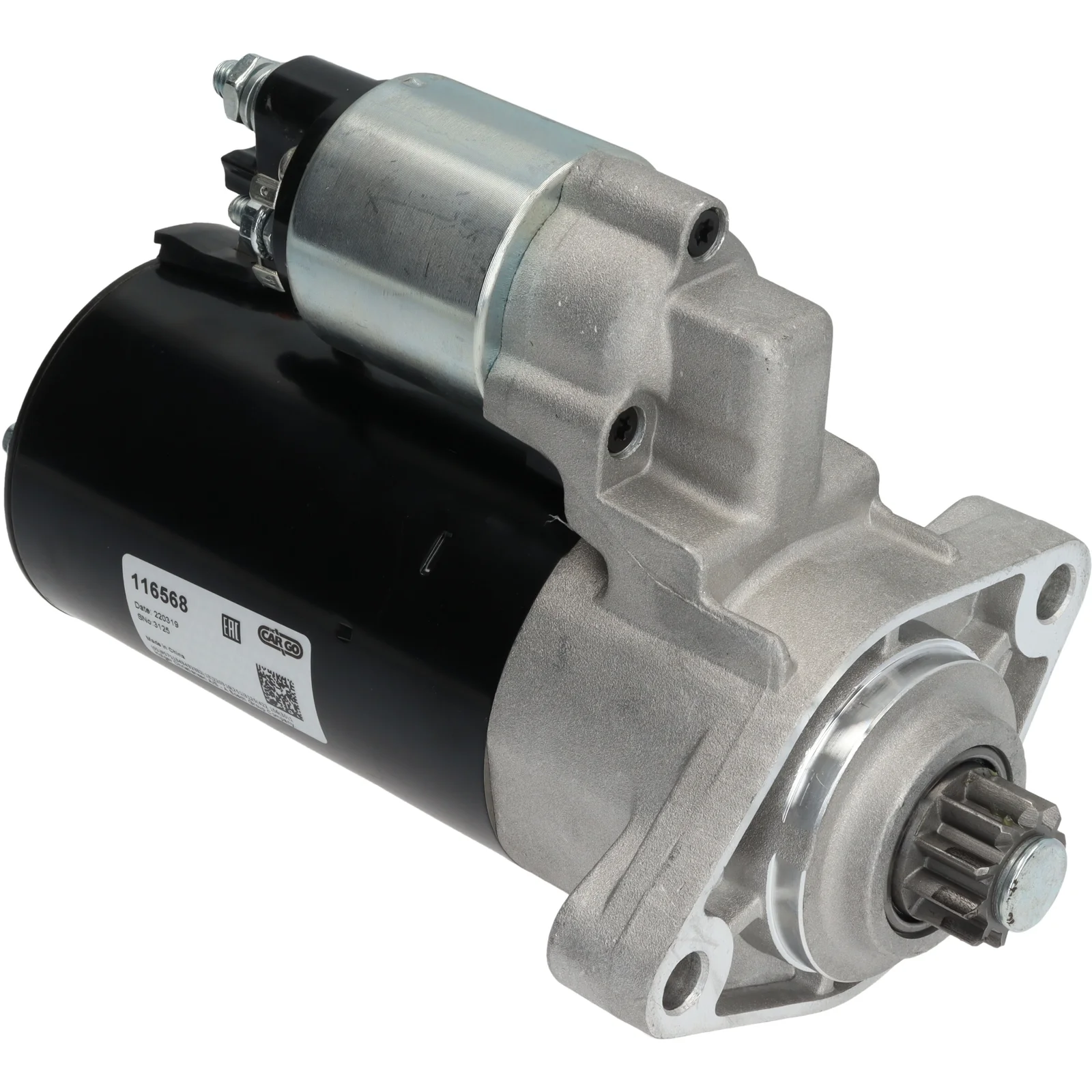

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116568

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 60.00
Drive dist.: 29.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 202.00
Dist./front: 32.00
No./teeth: 10
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 103.00
Rotation: CW
Total length mm: 234.00
No./mount. holes: 2 (0)

Files

  • OEM
    F00E100632, F032116568, 1986S00816, 1986S00817, 0001125057, 0001125058, 0001125059, 0001125060, 94860420600, 94860420601

  • Normalised article numbler
    cst10479, drs0437, f00e100632, f032116568, lrs02681, s0571, 8ea011612091, 1986s00816, 1986s00817, 19118n, 106946, 254353, 254716, 438588, 0001125057, 0001125058, 0001125059, 0001125060, 11090275, 11090334, 311293102, 480511102, 480512102, 0986024643, 94860420600, 94860420601
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 60.00
    Drive dist.: 29.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 202.00
    Dist./front: 32.00
    No./teeth: 10
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 103.00
    Rotation: CW
    Total length mm: 234.00
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F00E100632, F032116568, 1986S00816, 1986S00817, 0001125057, 0001125058, 0001125059, 0001125060, 94860420600, 94860420601

    • Normalised article numbler
      cst10479, drs0437, f00e100632, f032116568, lrs02681, s0571, 8ea011612091, 1986s00816, 1986s00817, 19118n, 106946, 254353, 254716, 438588, 0001125057, 0001125058, 0001125059, 0001125060, 11090275, 11090334, 311293102, 480511102, 480512102, 0986024643, 94860420600, 94860420601
