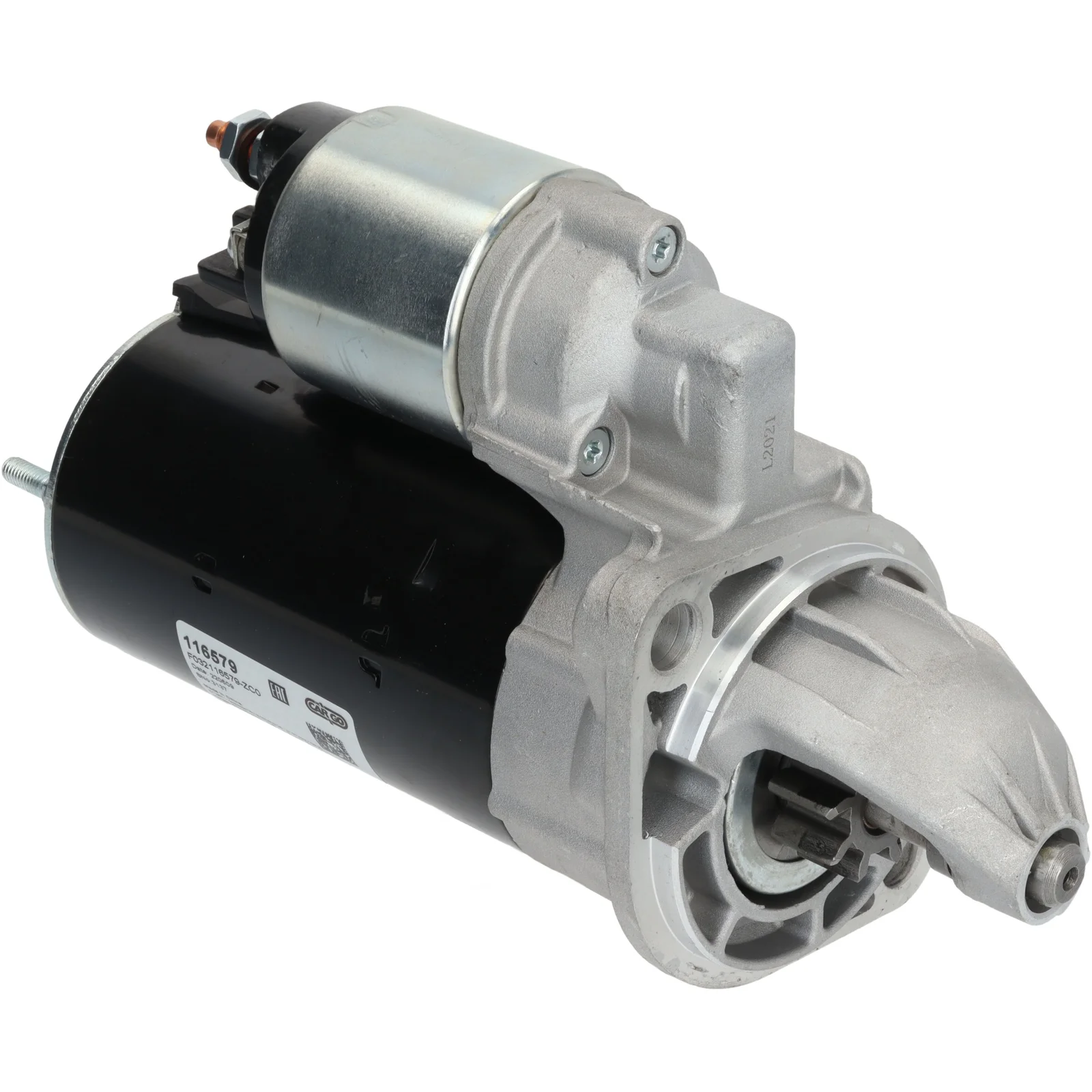

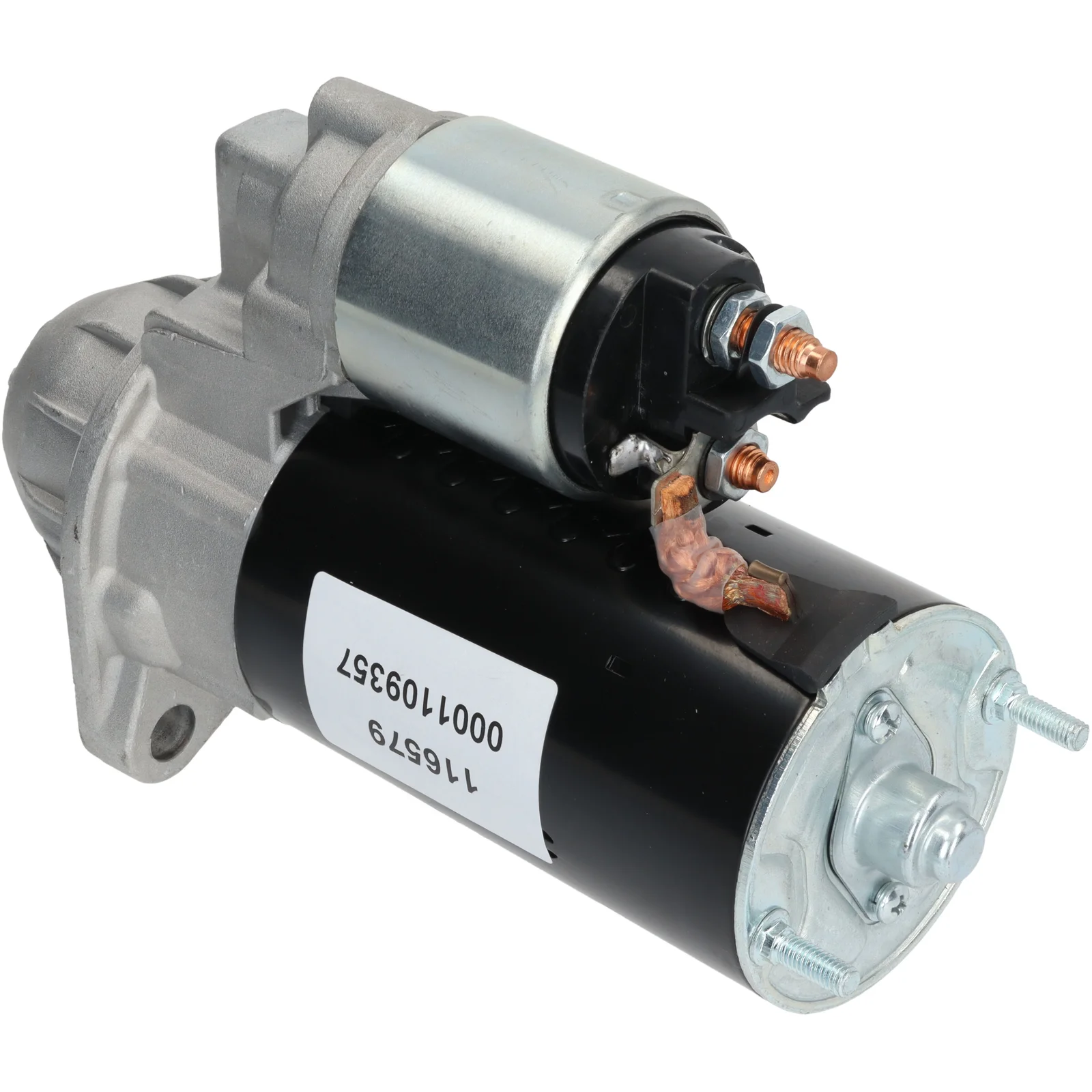

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116579

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 185.50
Dist./front: 60.50
No./teeth: 9
B+: M8
Position/B+: 60
Thread length mm: 14.50
Position/50: 15
Terminal 50: M4
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 246.00
No./mounting holes: 2 (0)

Files

  • Description
    Voltage: 12
    kW: 2.5
    Mount. flange: 82.50
    Drive dist.: 21.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 185.50
    Dist./front: 60.50
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Thread length mm: 14.50
    Position/50: 15
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 246.00
    No./mounting holes: 2 (0)

    Files

  • Suitable for these vehicles
