HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116584

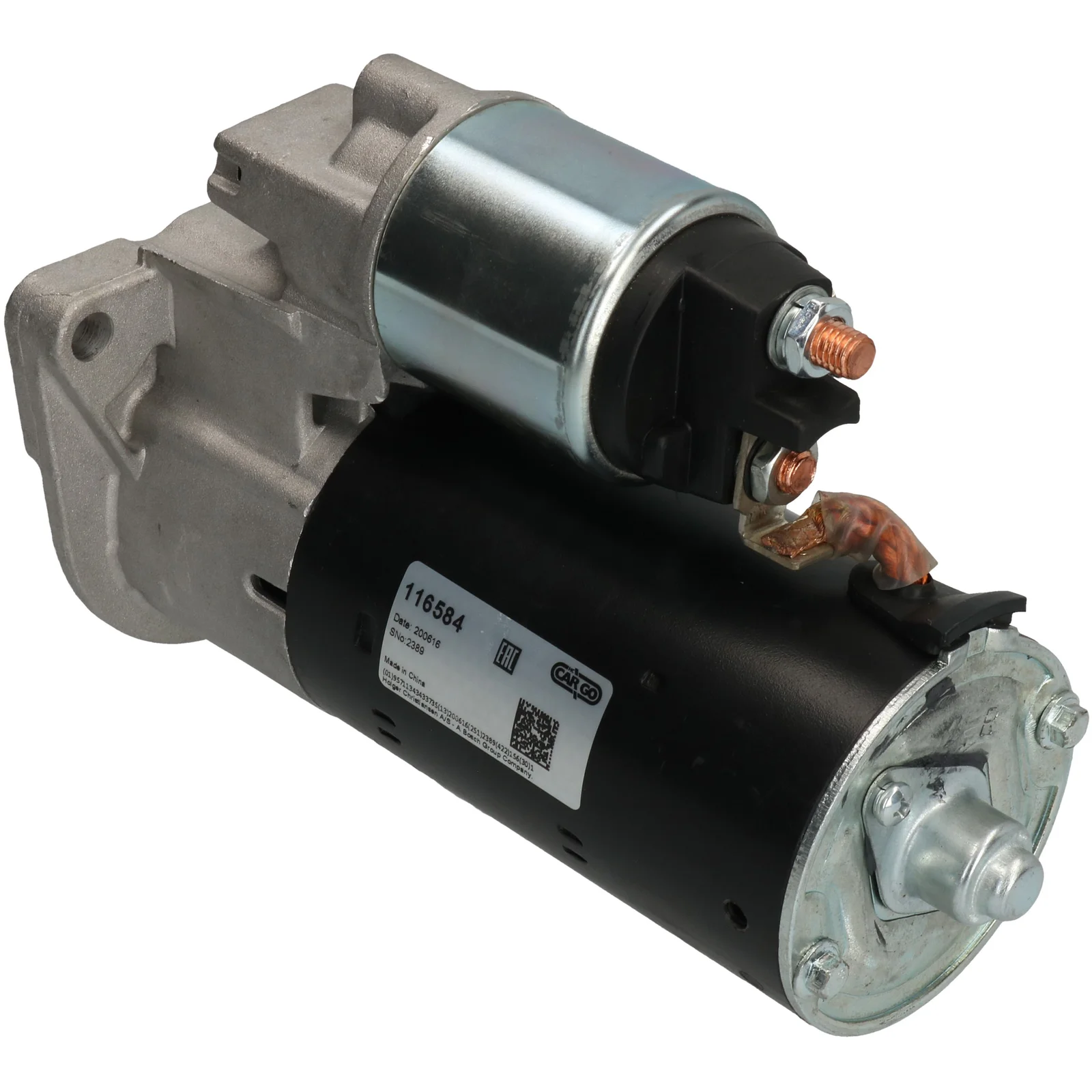

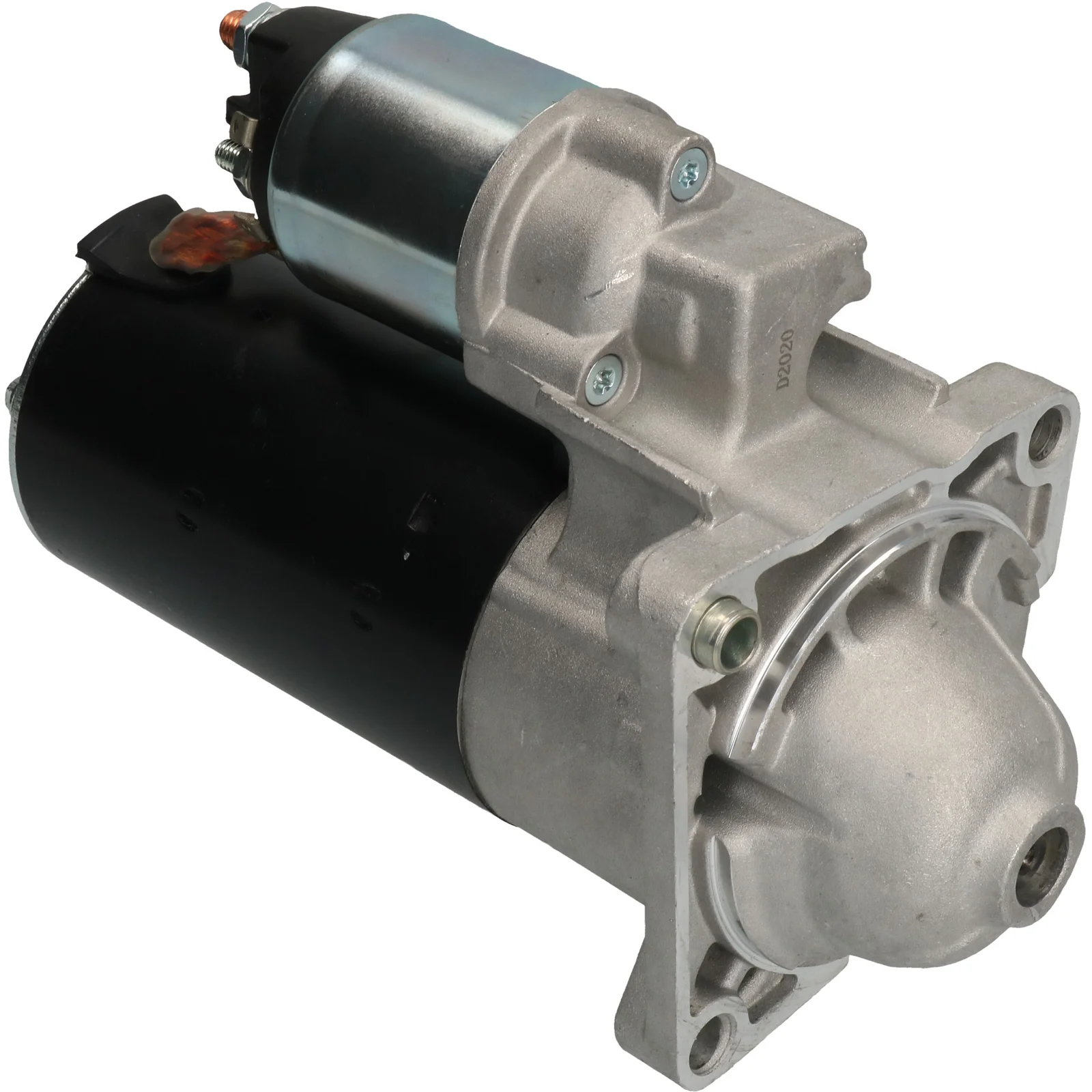

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 11, Rotation: CW

Description

HC-Cargo Starter motor 12V - 2.2kW, 11k

Voltage: 12
kW: 2.2
Mounting flange: 82.00
Drive distance: 4.50
Mounting hole 3 mm: 8.40
Mounting hole 2 mm: 9.50
Mounting hole 1 mm: 9.50
Distance / back: 197.50
Distance / front: 39.50
No. / teeth: 11
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 82.50
Distance 3: 82.50
Distance mm: 116.00
Rotation: CW
Total length mm: 237.00
No. / mounting holes: 3 (0)

Files

  • OEM
    F032116584, 0001 148 003, 0001 148 004, 1986S00860, 116584, 0001148003, 0001148004, 1202216, 55572065

  • Normalised article numbler
    cst10534, drs0549, f032116584, lrs02591, s0621s, 1986s00860, 19241n, 116584, 220806, 220806a, 254263, 255278, 438573, 0001148003, 0001148004, 1202216, 11090192, 42025550, 55572065, 130563113, 328071112, 0986025550
  • Description
    HC-Cargo Starter motor 12V - 2.2kW, 11k

    Voltage: 12
    kW: 2.2
    Mounting flange: 82.00
    Drive distance: 4.50
    Mounting hole 3 mm: 8.40
    Mounting hole 2 mm: 9.50
    Mounting hole 1 mm: 9.50
    Distance / back: 197.50
    Distance / front: 39.50
    No. / teeth: 11
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 82.50
    Distance 3: 82.50
    Distance mm: 116.00
    Rotation: CW
    Total length mm: 237.00
    No. / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116584, 0001 148 003, 0001 148 004, 1986S00860, 116584, 0001148003, 0001148004, 1202216, 55572065

    • Normalised article numbler
      cst10534, drs0549, f032116584, lrs02591, s0621s, 1986s00860, 19241n, 116584, 220806, 220806a, 254263, 255278, 438573, 0001148003, 0001148004, 1202216, 11090192, 42025550, 55572065, 130563113, 328071112, 0986025550
