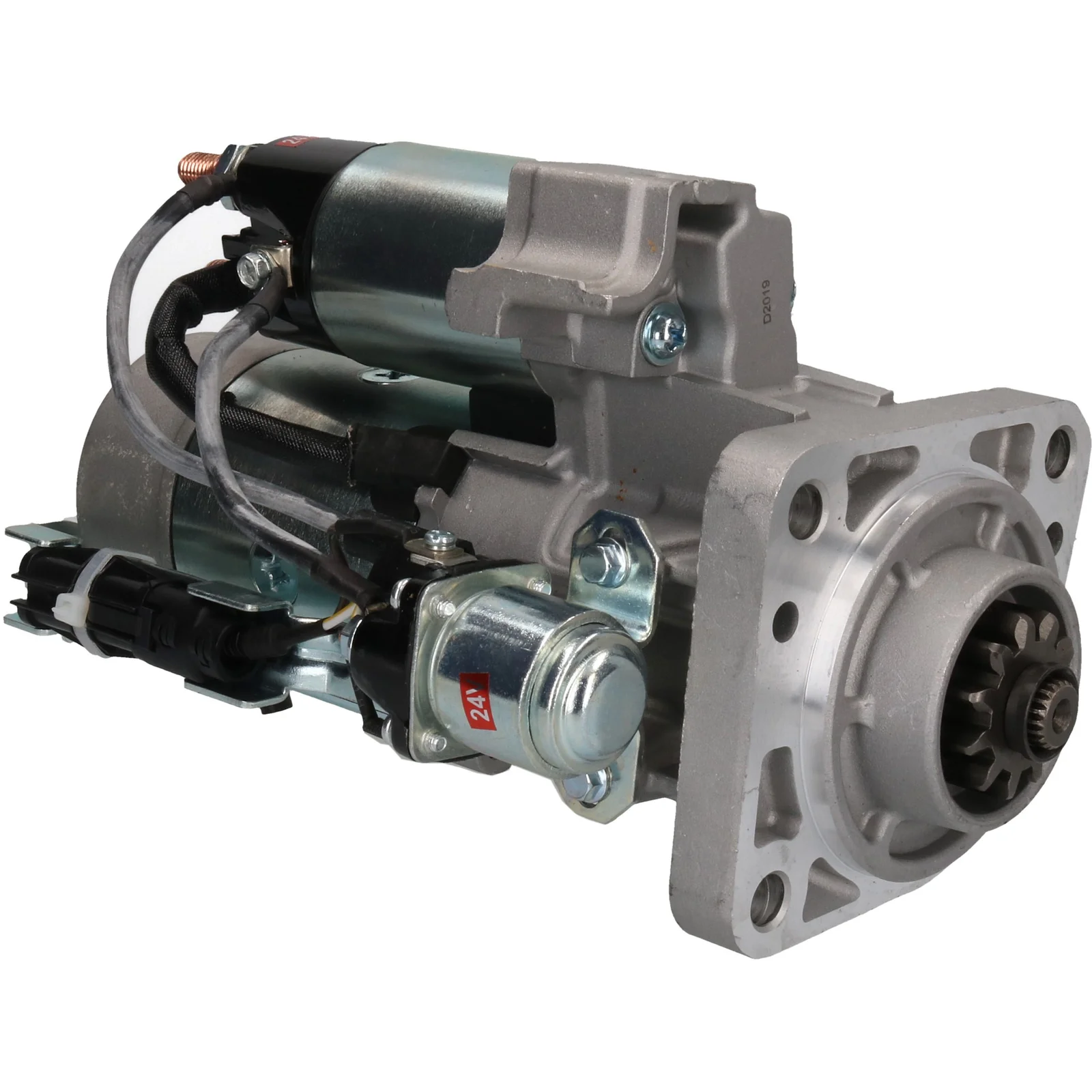

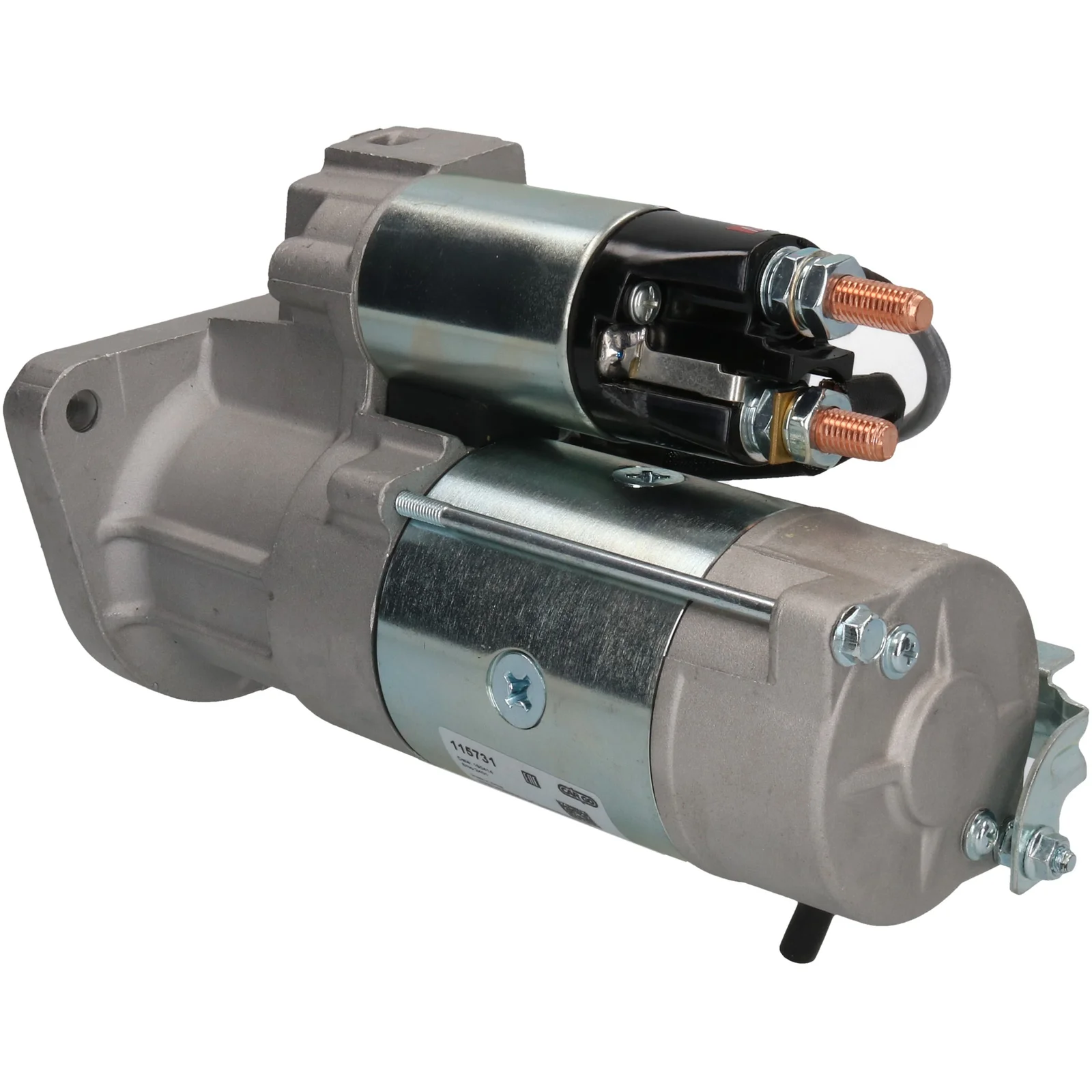

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115731

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.0, No./teeth: 11, Rotation: CW

Description

MAN Starter motor 24V-5.0kW 24V - 5.0kW, 11t. CW A - 89mm, B - 28mm For Yourex product order 91-336-7237

Voltage: 24
kW: 5.0
Mounting flange: 89.00
Drive distance: 27.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 265.00
Distance / front: 35.00
Number / teeth: 11
B+: M10
Position / 50: 15
Terminal 50: Plug
Gear type: GR
Distance 2: 81.50
Distance 3: 93.50
Distance mm: 127.00
Rotation: CW
Total length mm: 300.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032115731, M008T62771, M8T-62771, M8T62771, 51.26201-7237, 51.26201-9237, 51262017237

  • Normalised article numbler
    cst35664, drs0781, f032115731, lrs02496, m008t62771, m85r3002se, m8t62771, s5244mitsubishi, s5244s, 30289, 106266, 454168, 8823210, 51262017237, 51262019237
  • Description
    MAN Starter motor 24V-5.0kW 24V - 5.0kW, 11t. CW A - 89mm, B - 28mm For Yourex product order 91-336-7237

    Voltage: 24
    kW: 5.0
    Mounting flange: 89.00
    Drive distance: 27.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 265.00
    Distance / front: 35.00
    Number / teeth: 11
    B+: M10
    Position / 50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 81.50
    Distance 3: 93.50
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 300.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115731, M008T62771, M8T-62771, M8T62771, 51.26201-7237, 51.26201-9237, 51262017237

    • Normalised article numbler
      cst35664, drs0781, f032115731, lrs02496, m008t62771, m85r3002se, m8t62771, s5244mitsubishi, s5244s, 30289, 106266, 454168, 8823210, 51262017237, 51262019237
