HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116689

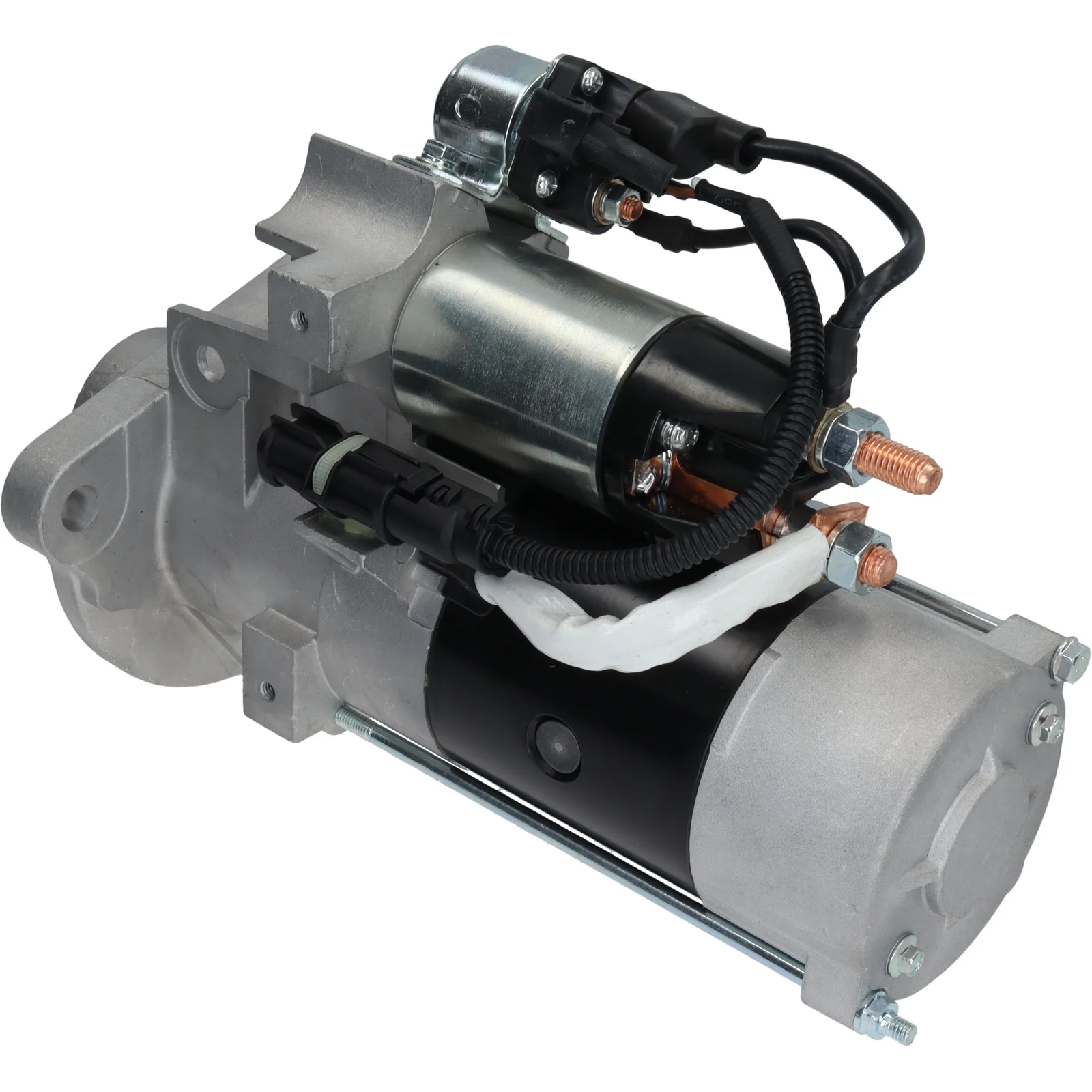

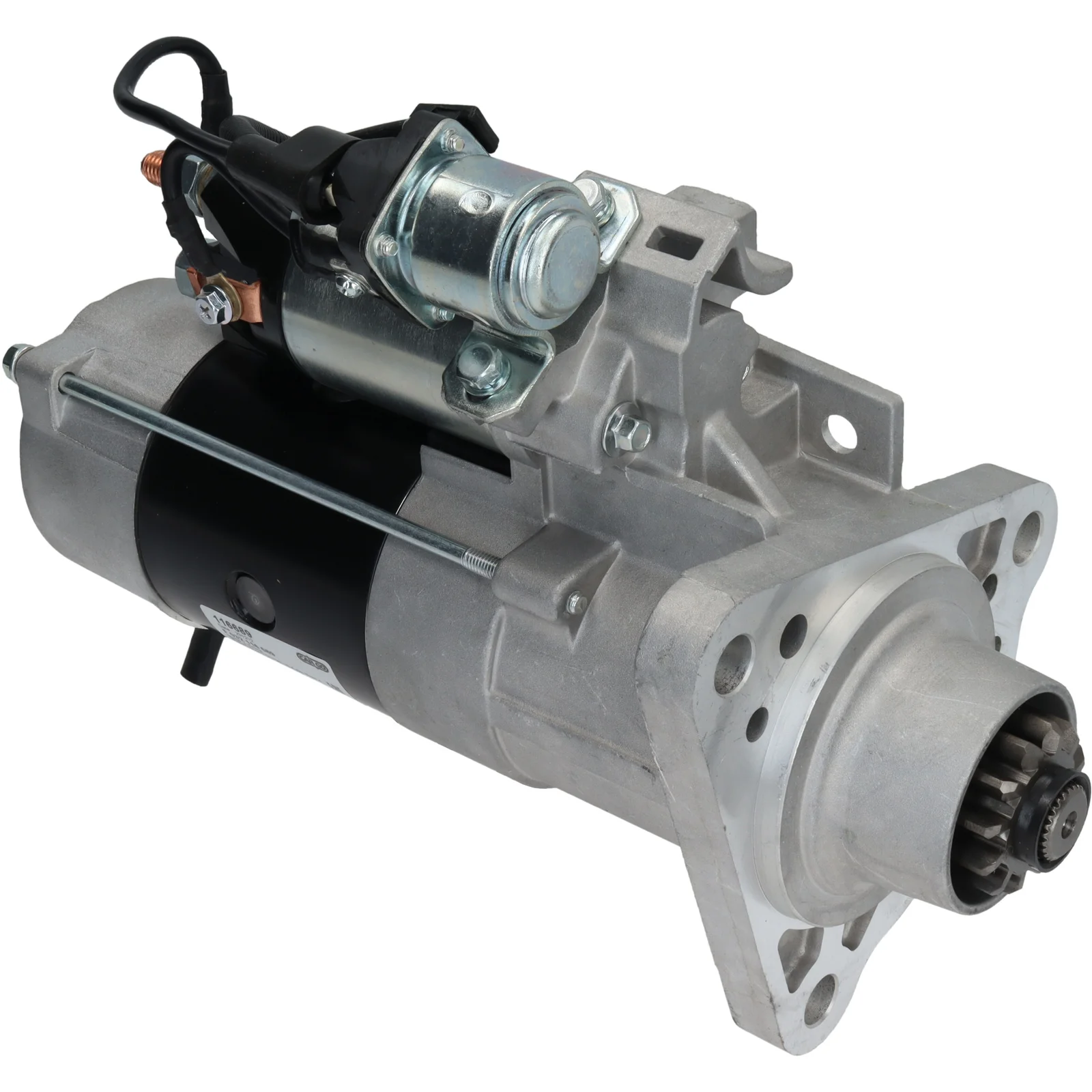

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.5, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 5.5
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 267.00
Dist./front: 55.00
No./teeth: 12
B+: M10
Position/B+: 60
Terminal 50: Plug
Gear type: GR
Rotation: CW
Total length mm: 322.00
No./mount. holes: 3 (0)

Files

  • OEM
    AZF4902, F032116689, M009T62971, M009T62971AM, M009T62971ZZ9, M90R3548, M90R3548SE, M9T62971, M9T62971AM, M9T62971ZZ9, 11.139.190, 51.26201-7226, 51.26201-9226

  • Normalised article numbler
    azf4902, cst35648, drs0777, f032116689, is9488, lrs04173, m009t62971, m009t62971am, m009t62971zz9, m90r3548, m90r3548se, m9t62971, m9t62971am, m9t62971zz9, ms929, s5206, 30479n, 107158, 220690, 220690a, 254702, 455336, 11090274, 11139190, 551536123, 551552123, 51262017226, 51262019226
  • Description
    Voltage: 24
    kW: 5.5
    Mount. flange: 92.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 267.00
    Dist./front: 55.00
    No./teeth: 12
    B+: M10
    Position/B+: 60
    Terminal 50: Plug
    Gear type: GR
    Rotation: CW
    Total length mm: 322.00
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4902, F032116689, M009T62971, M009T62971AM, M009T62971ZZ9, M90R3548, M90R3548SE, M9T62971, M9T62971AM, M9T62971ZZ9, 11.139.190, 51.26201-7226, 51.26201-9226

    • Normalised article numbler
      azf4902, cst35648, drs0777, f032116689, is9488, lrs04173, m009t62971, m009t62971am, m009t62971zz9, m90r3548, m90r3548se, m9t62971, m9t62971am, m9t62971zz9, ms929, s5206, 30479n, 107158, 220690, 220690a, 254702, 455336, 11090274, 11139190, 551536123, 551552123, 51262017226, 51262019226
