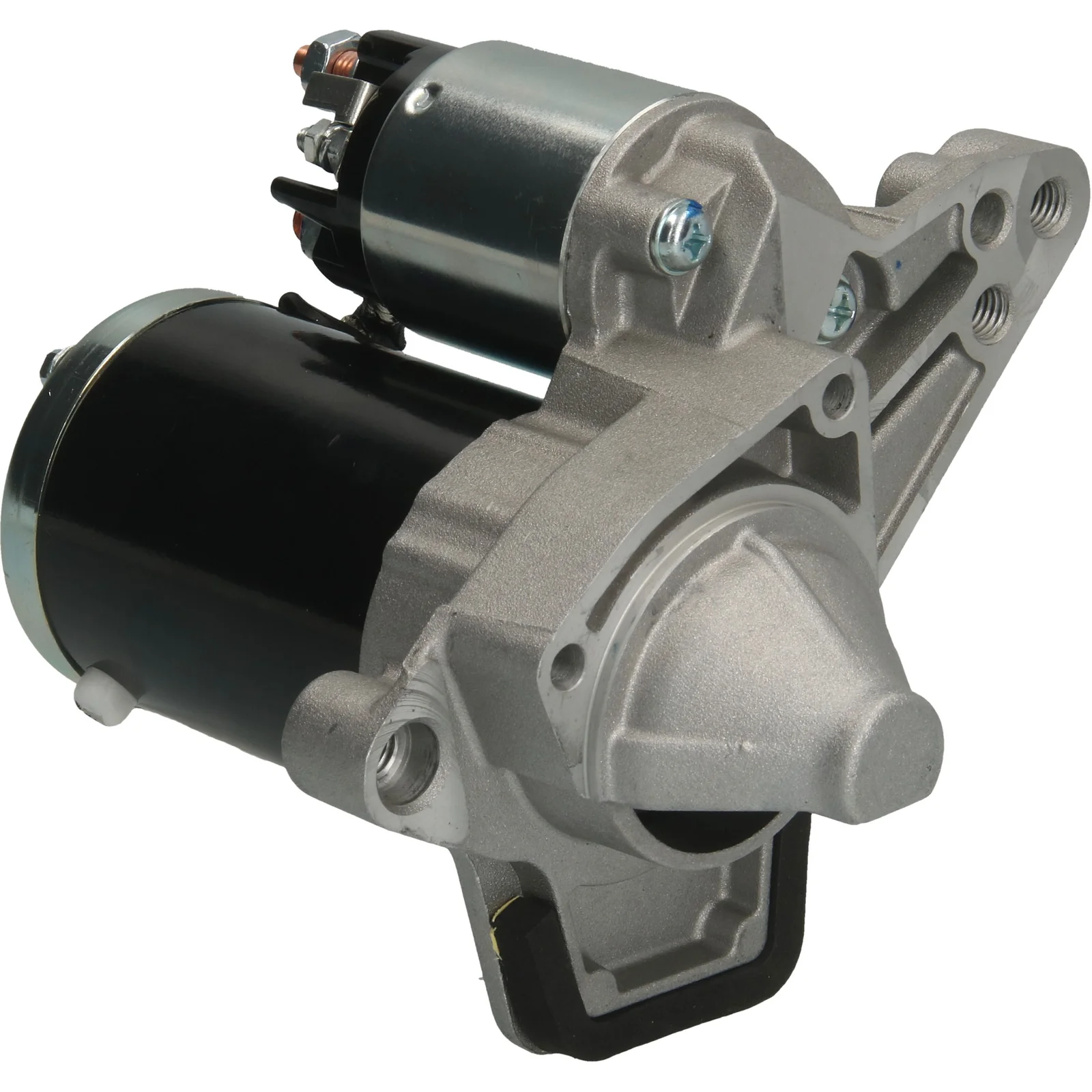

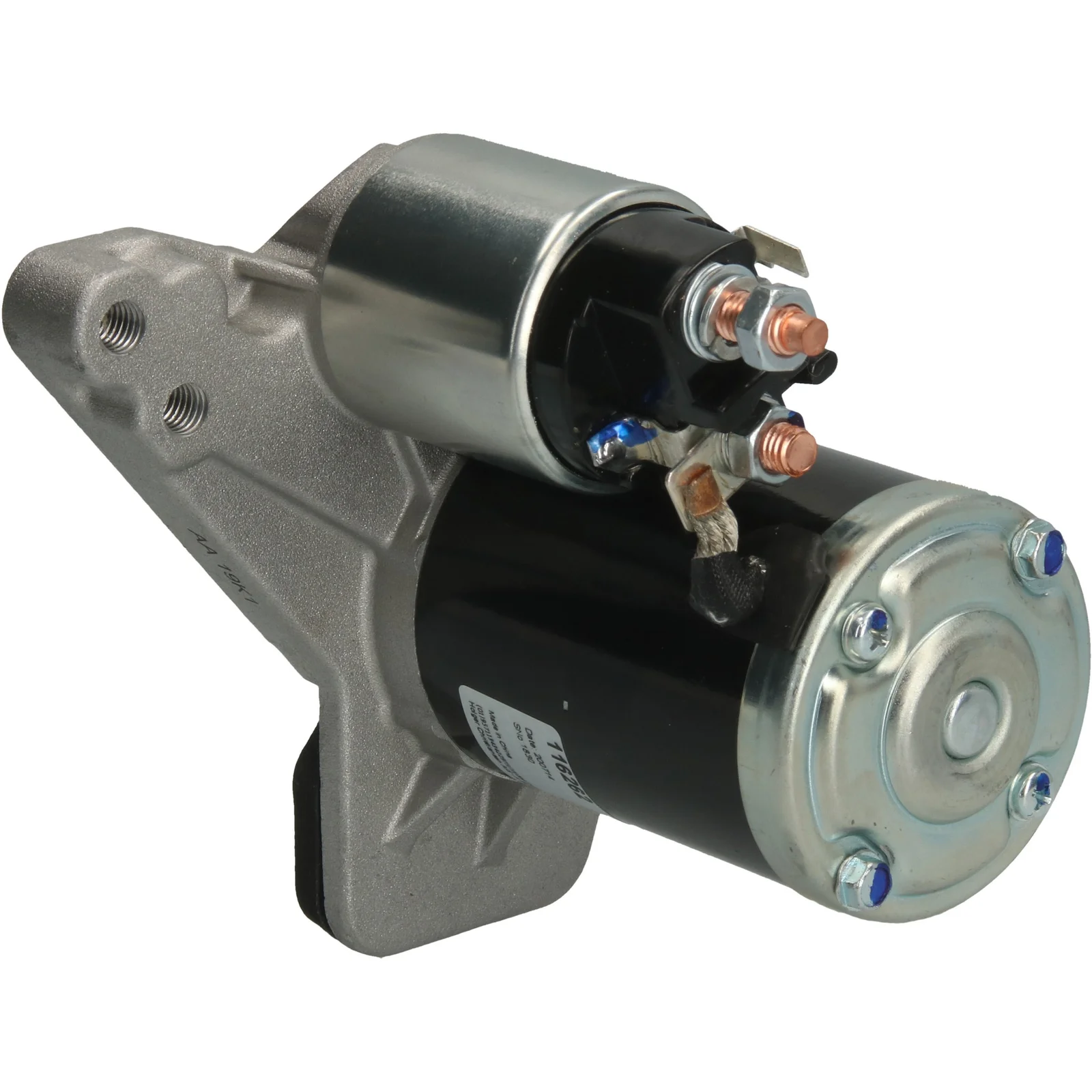

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116262

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Starter motor 12V-0.8kW 12V - 0.8kW, 9k A - 64mm, B - 20mm Cars WITHOUT Stop/Start! For Yourex product order 91-480-0779

Voltage: 12
kW: 0.8
Mounting flange: 64.00
Drive distance: 0.50
Mounting hole 3 mm: M10
Distance/back: 143.00
Distance/front: 34.00
Number of teeth: 9
B+: M8
Position/B+: 60
Position/50: 17
Terminal 50: M5
Gear type: DD
Distance 2: 135.00
Distance 3: 153.50
Distance in mm: 20.00
Rotation: CW
Total length in mm: 177.00
Number of mounting holes: 3 (3)

Files

  • OEM
    A 453 906 42 00, A4159064700, A4159065400, A4539064700, A4539065400, A4539067500, A453906750080, CST35348, DRS1053, F032116262, M000T46571, M000T46571ZT, M000T46572, M000T46572AM, M000T46572ZT, M000T46575ZT, M0T-46571ZT, M0T-46572ZT, M0T46571, M0T46571ZT, M0T46572, M0T46572AM, M0T46572ZT, M0T46575ZT, S5396S, 570.584.093, 0986 026 250, 23300-00Q3D, 23300-0779R, 23300-3307R, 33360N, 220790, 220790A, 458967, 11090422, 42005000, 233000557R, 233000779R, 233001071, 233001071R, 233003847R, 233003965R, 233007970, 233007970R, 233009161R, 0986026250, 4159064700, 4539064200, 4539064700, 4539065400, 4539067500

  • Normalised article numbler
    a4159064700, a4159065400, a4539064200, a4539064700, a4539065400, a4539067500, a453906750080, cst35348, drs1053, f032116262, m000t46571, m000t46571zt, m000t46572, m000t46572am, m000t46572zt, m000t46575zt, m0t46571, m0t46571zt, m0t46572, m0t46572am, m0t46572zt, m0t46575zt, s5396s, 33360n, 220790, 220790a, 458967, 2330000q3d, 11090422, 42005000, 233000557r, 233000779r, 233001071, 233001071r, 233003307r, 233003847r, 233003965r, 233007970, 233007970r, 233009161r, 570584093, 0986026250, 4159064700, 4539064200, 4539064700, 4539065400, 4539067500
  • Description
    Starter motor 12V-0.8kW 12V - 0.8kW, 9k A - 64mm, B - 20mm Cars WITHOUT Stop/Start! For Yourex product order 91-480-0779

    Voltage: 12
    kW: 0.8
    Mounting flange: 64.00
    Drive distance: 0.50
    Mounting hole 3 mm: M10
    Distance/back: 143.00
    Distance/front: 34.00
    Number of teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 17
    Terminal 50: M5
    Gear type: DD
    Distance 2: 135.00
    Distance 3: 153.50
    Distance in mm: 20.00
    Rotation: CW
    Total length in mm: 177.00
    Number of mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      A 453 906 42 00, A4159064700, A4159065400, A4539064700, A4539065400, A4539067500, A453906750080, CST35348, DRS1053, F032116262, M000T46571, M000T46571ZT, M000T46572, M000T46572AM, M000T46572ZT, M000T46575ZT, M0T-46571ZT, M0T-46572ZT, M0T46571, M0T46571ZT, M0T46572, M0T46572AM, M0T46572ZT, M0T46575ZT, S5396S, 570.584.093, 0986 026 250, 23300-00Q3D, 23300-0779R, 23300-3307R, 33360N, 220790, 220790A, 458967, 11090422, 42005000, 233000557R, 233000779R, 233001071, 233001071R, 233003847R, 233003965R, 233007970, 233007970R, 233009161R, 0986026250, 4159064700, 4539064200, 4539064700, 4539065400, 4539067500

    • Normalised article numbler
      a4159064700, a4159065400, a4539064200, a4539064700, a4539065400, a4539067500, a453906750080, cst35348, drs1053, f032116262, m000t46571, m000t46571zt, m000t46572, m000t46572am, m000t46572zt, m000t46575zt, m0t46571, m0t46571zt, m0t46572, m0t46572am, m0t46572zt, m0t46575zt, s5396s, 33360n, 220790, 220790a, 458967, 2330000q3d, 11090422, 42005000, 233000557r, 233000779r, 233001071, 233001071r, 233003307r, 233003847r, 233003965r, 233007970, 233007970r, 233009161r, 570584093, 0986026250, 4159064700, 4539064200, 4539064700, 4539065400, 4539067500
