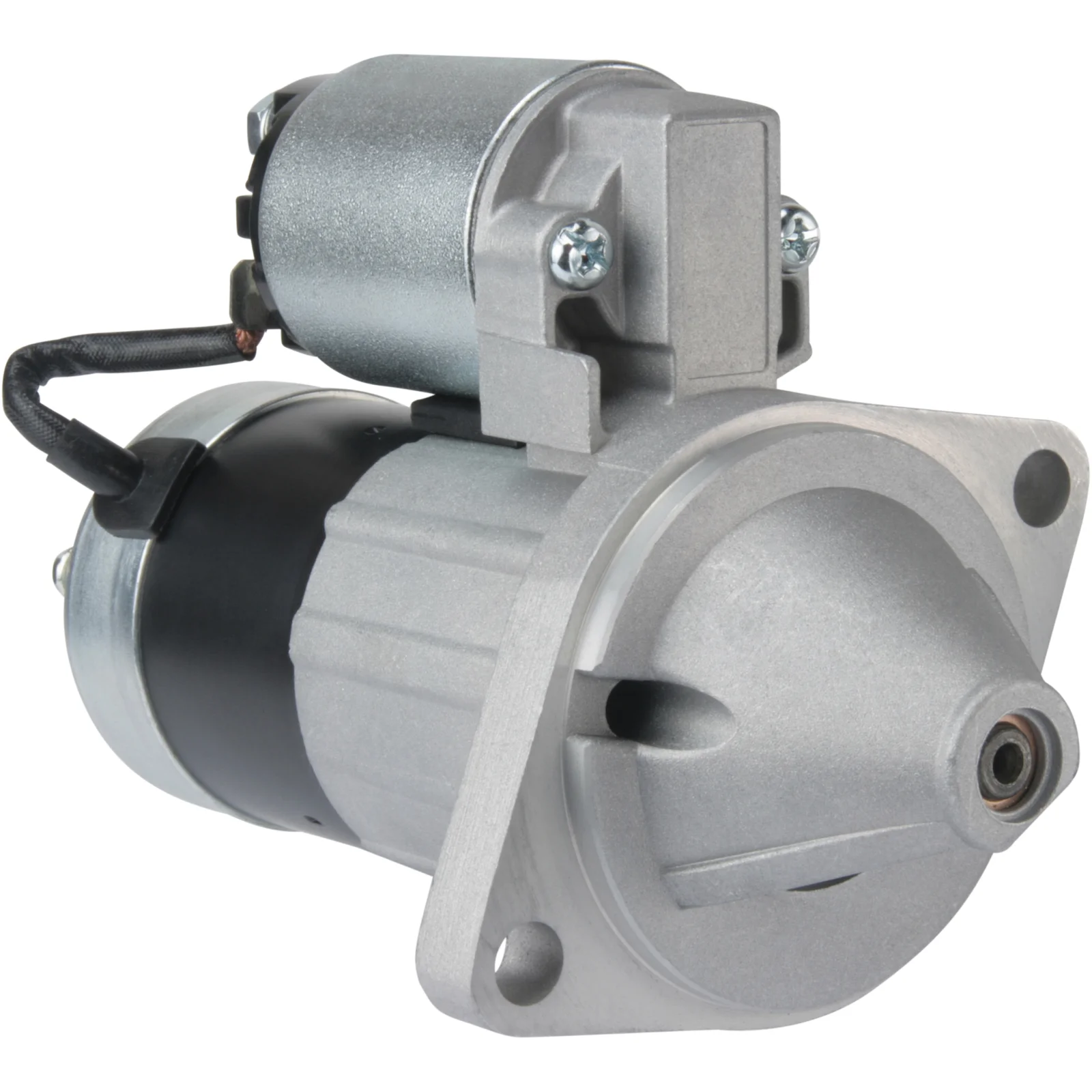

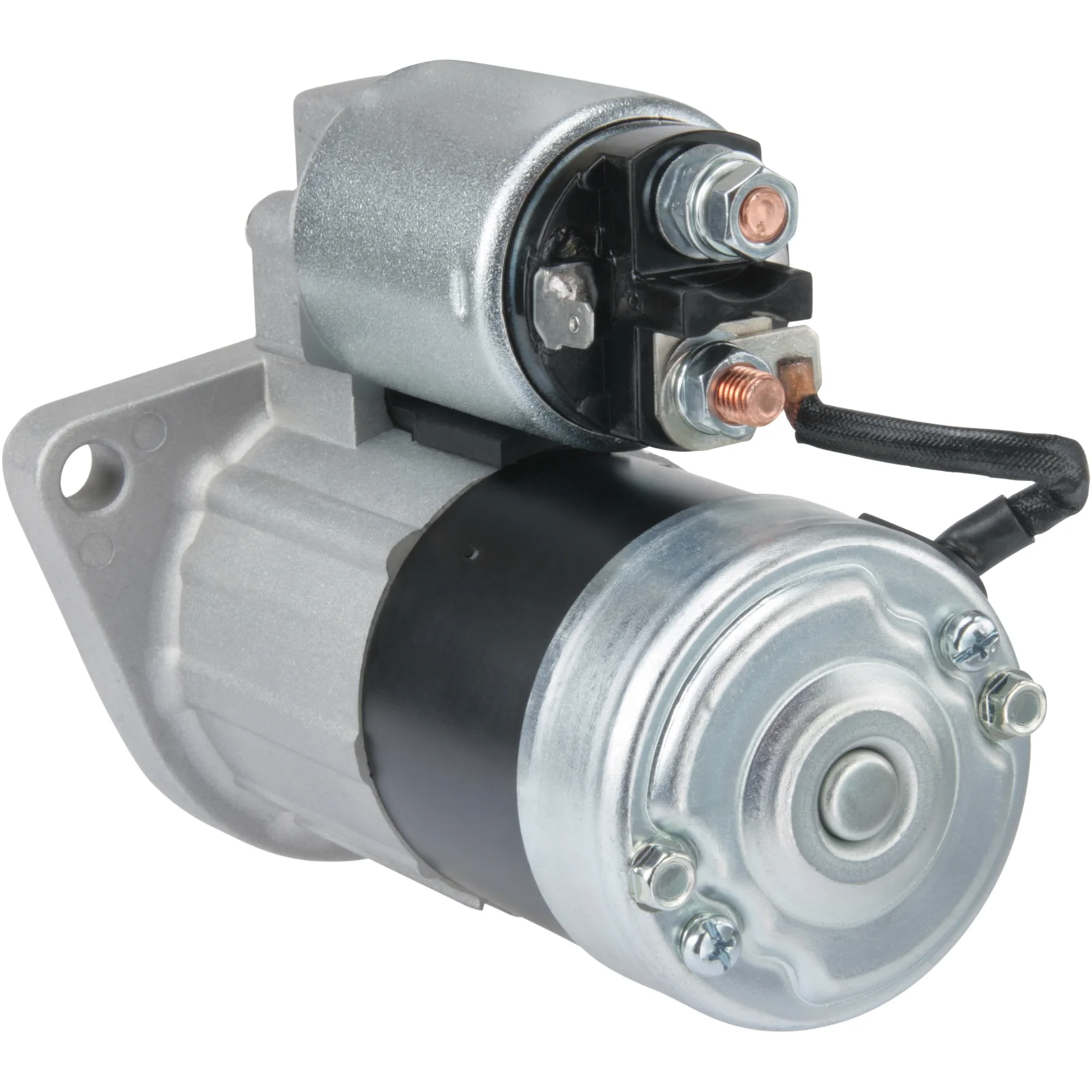

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110155

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.85, No./teeth: 8, Rotation: CW

Description

HC-Cargo Starter motor

Voltage: 12
kW: 0.85
Mounting flange: 83.00
Drive distance: 7.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 145.50
Distance / front: 46.00
Number / teeth: 8
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: 6.30
Gear type: DD/GR
Distance mm: 110.00
Rotation: CW
Total length mm: 191.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032110155, js343, M003T11272, m3t11272, me-y1r, mea13-1, mea13-2, med02-1, med02-2, mey1r, mey3r, s114-91, s114-91k, 23300-15800, 23300-15805, 23300-15810, 23300-15815, 23300-a3200, 23300-p5110, 23300-p5111

  • Normalised article numbler
    ads127, ads139, bso7029, cst20140, drs2931, f032110155, f042001125, f042s01125, js343, lrs00320, m003t11272, m3t11272, mea131, mea132, med021, med022, mey1r, mey3r, s11491, s11491k, sr138x, str3567, 8ea726435001, 4185, 16201, 20343, 21741hi, 21741mi, 23300a3200, 23300p5110, 23300p5111, 33487, 217411, 220071, 220071a, 250007, 250480, 455908, 455910, 2852105, 11040131, 66925216, 66925309, 327016092, 2330015800, 2330015805, 2330015810, 2330015815
  • Description
    HC-Cargo Starter motor

    Voltage: 12
    kW: 0.85
    Mounting flange: 83.00
    Drive distance: 7.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 145.50
    Distance / front: 46.00
    Number / teeth: 8
    B+: M8
    Position / B+: 60
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance mm: 110.00
    Rotation: CW
    Total length mm: 191.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110155, js343, M003T11272, m3t11272, me-y1r, mea13-1, mea13-2, med02-1, med02-2, mey1r, mey3r, s114-91, s114-91k, 23300-15800, 23300-15805, 23300-15810, 23300-15815, 23300-a3200, 23300-p5110, 23300-p5111

    • Normalised article numbler
      ads127, ads139, bso7029, cst20140, drs2931, f032110155, f042001125, f042s01125, js343, lrs00320, m003t11272, m3t11272, mea131, mea132, med021, med022, mey1r, mey3r, s11491, s11491k, sr138x, str3567, 8ea726435001, 4185, 16201, 20343, 21741hi, 21741mi, 23300a3200, 23300p5110, 23300p5111, 33487, 217411, 220071, 220071a, 250007, 250480, 455908, 455910, 2852105, 11040131, 66925216, 66925309, 327016092, 2330015800, 2330015805, 2330015810, 2330015815
