HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110156

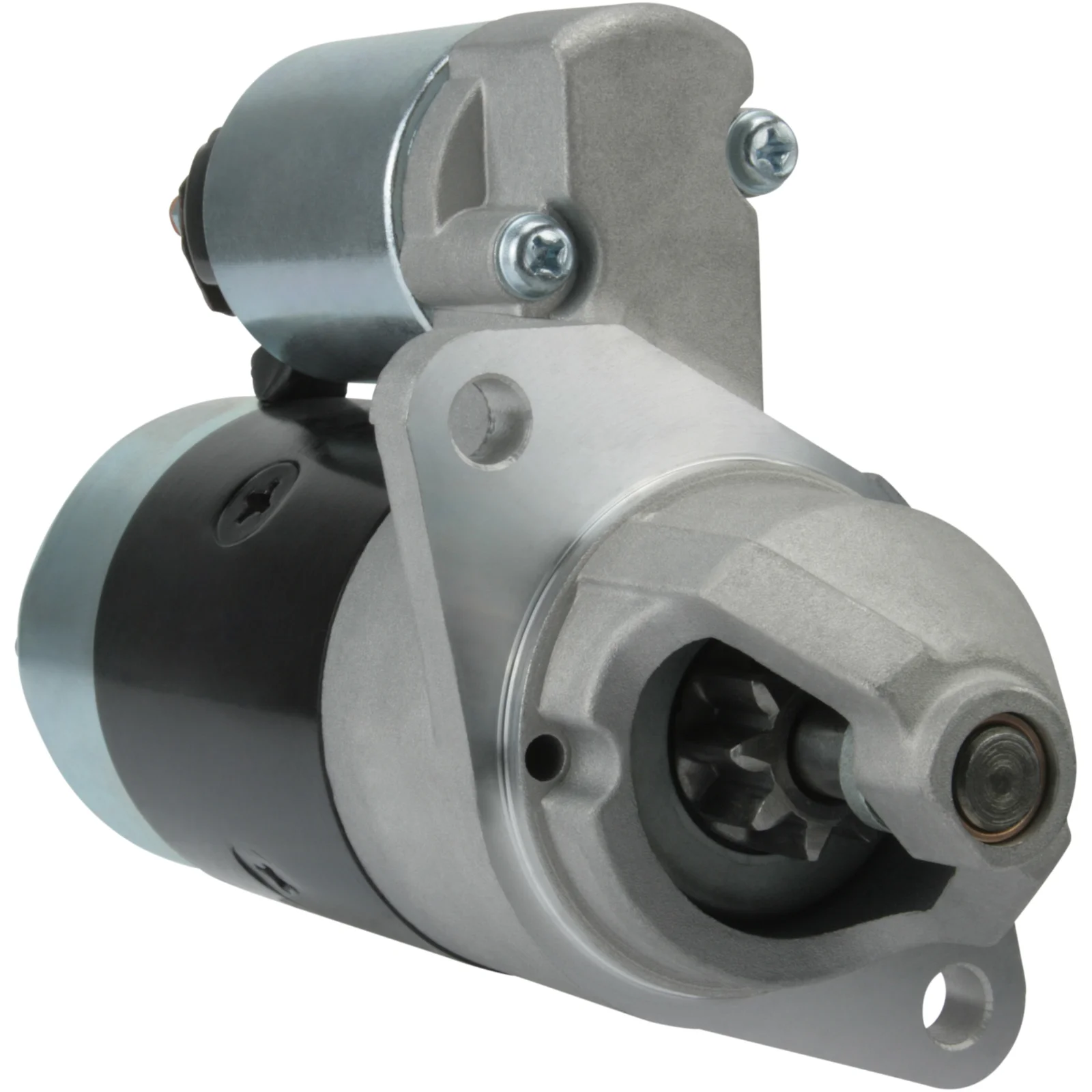

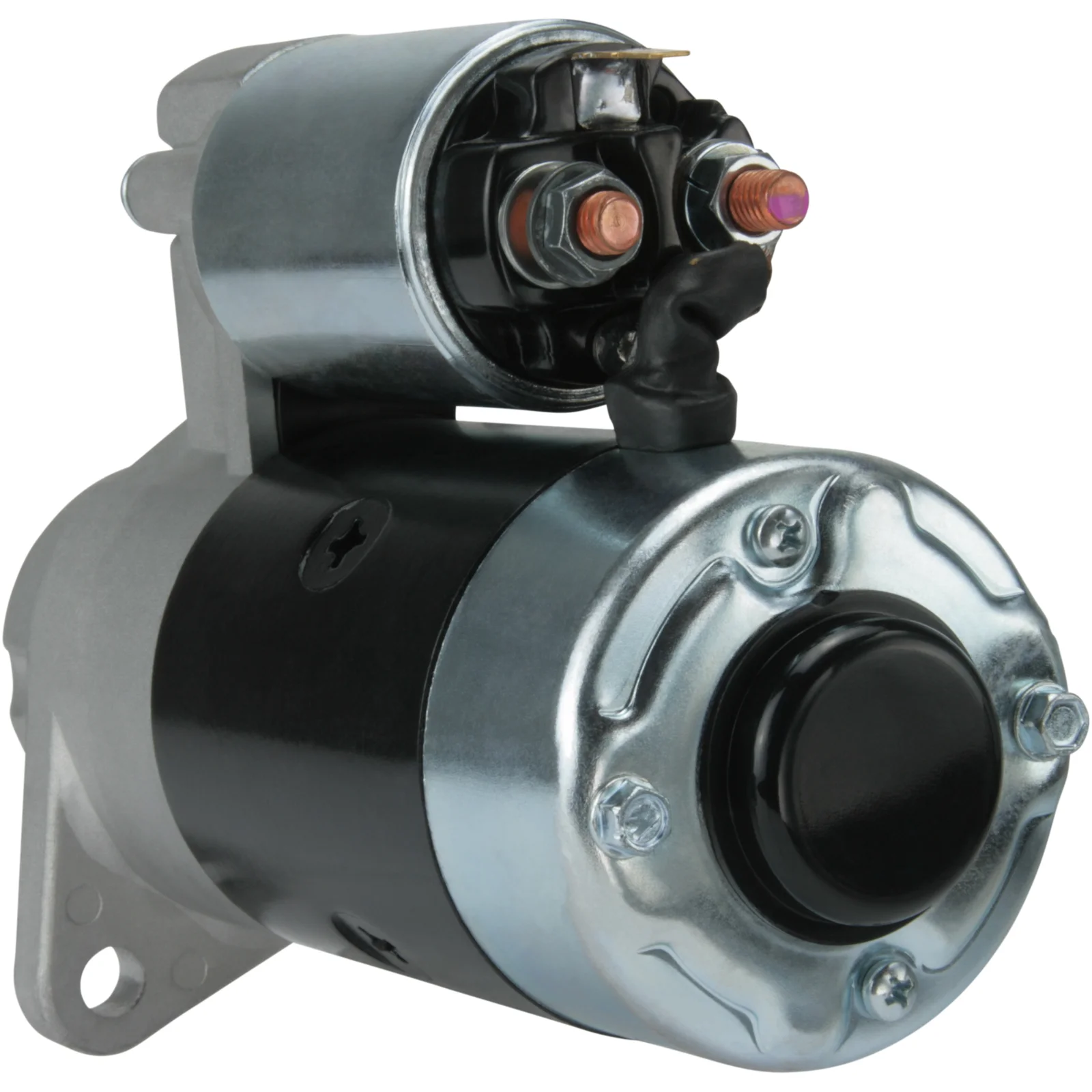

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

HC-Cargo Starter motor For more information see the find on the HC-Cargo website.

Voltage: 12
kW: 0.8
Mounting flange: 70.00
Drive length: 21.00
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 156.00
Distance / front: 56.00
No. / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: 6.30
Gear type: DD/GR
Distance mm: 110.00
Rotation: CW
Total length mm: 218.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
No. / mounting holes: 2 (0)

Files

  • OEM
    F032110156, js340, s114-150, s114-150l, s114-151, s114-151l, s114-164, s114-164a, 44-0340, 91-400-4164, 23300-09600, 23300-09601, 23300-47601, 23300-48301, 23300-b0700, 110156

  • Normalised article numbler
    ads155, cst20216, drs2933, f032110156, j5215010, js340, lrs02190, s114150, s114150l, s114151, s114151l, s114164, s114164a, s8255, sd0018r, sd0021r, str23011, 8ea726433001, 4183, 11247, 16197, 16207, 16207n, 16271, 20340, 21274hi1, 21724hi, 21724hi1, 21924hi, 23300b0700, 103845, 110156, 250483, 440340, 2752510, 2852106, 8052510, 11040357, 91251082, 627001092, 914004164, 2330009600, 2330009601, 2330047601, 2330048301
  • Description
    HC-Cargo Starter motor For more information see the find on the HC-Cargo website.

    Voltage: 12
    kW: 0.8
    Mounting flange: 70.00
    Drive length: 21.00
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 156.00
    Distance / front: 56.00
    No. / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance mm: 110.00
    Rotation: CW
    Total length mm: 218.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    No. / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110156, js340, s114-150, s114-150l, s114-151, s114-151l, s114-164, s114-164a, 44-0340, 91-400-4164, 23300-09600, 23300-09601, 23300-47601, 23300-48301, 23300-b0700, 110156

    • Normalised article numbler
      ads155, cst20216, drs2933, f032110156, j5215010, js340, lrs02190, s114150, s114150l, s114151, s114151l, s114164, s114164a, s8255, sd0018r, sd0021r, str23011, 8ea726433001, 4183, 11247, 16197, 16207, 16207n, 16271, 20340, 21274hi1, 21724hi, 21724hi1, 21924hi, 23300b0700, 103845, 110156, 250483, 440340, 2752510, 2852106, 8052510, 11040357, 91251082, 627001092, 914004164, 2330009600, 2330009601, 2330047601, 2330048301
