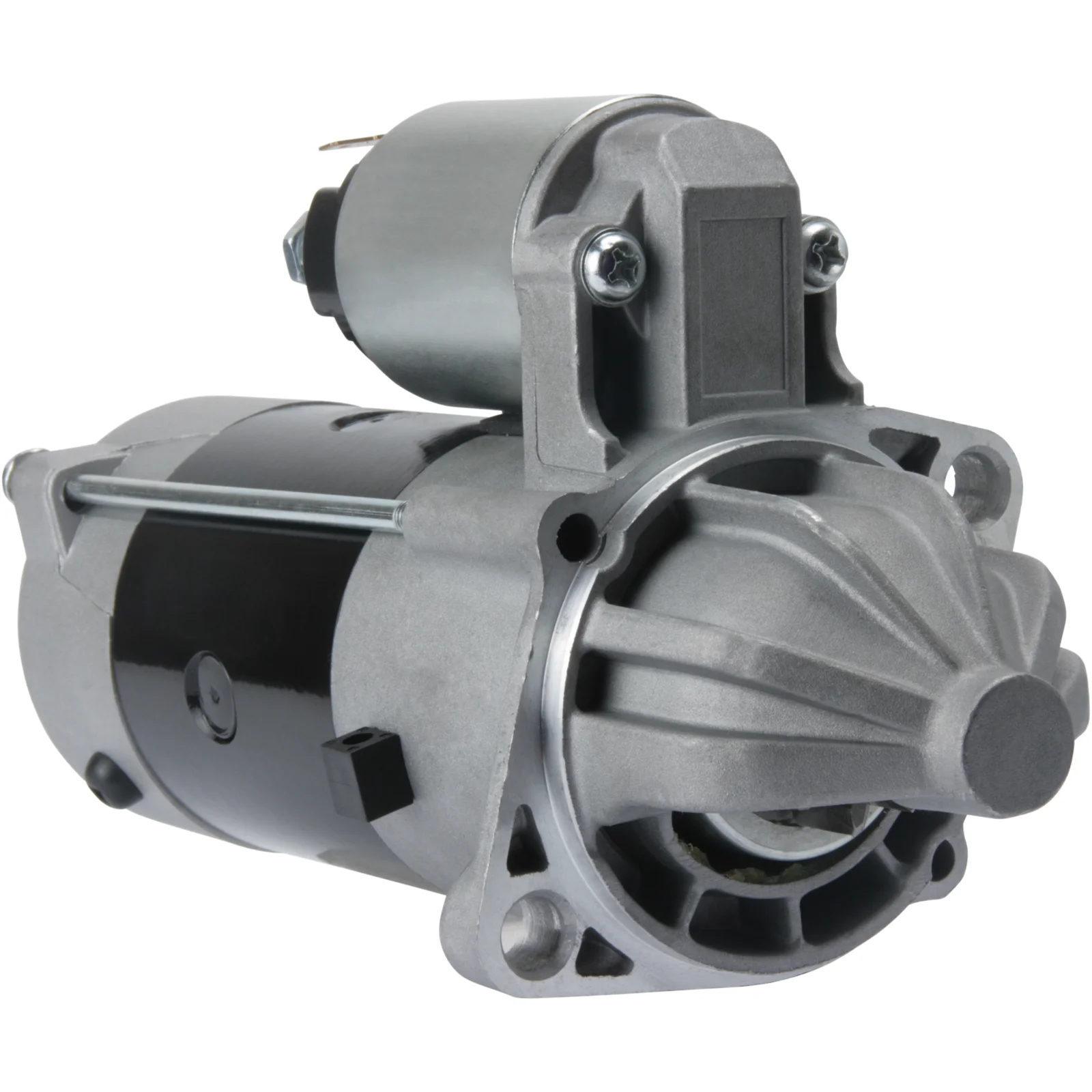

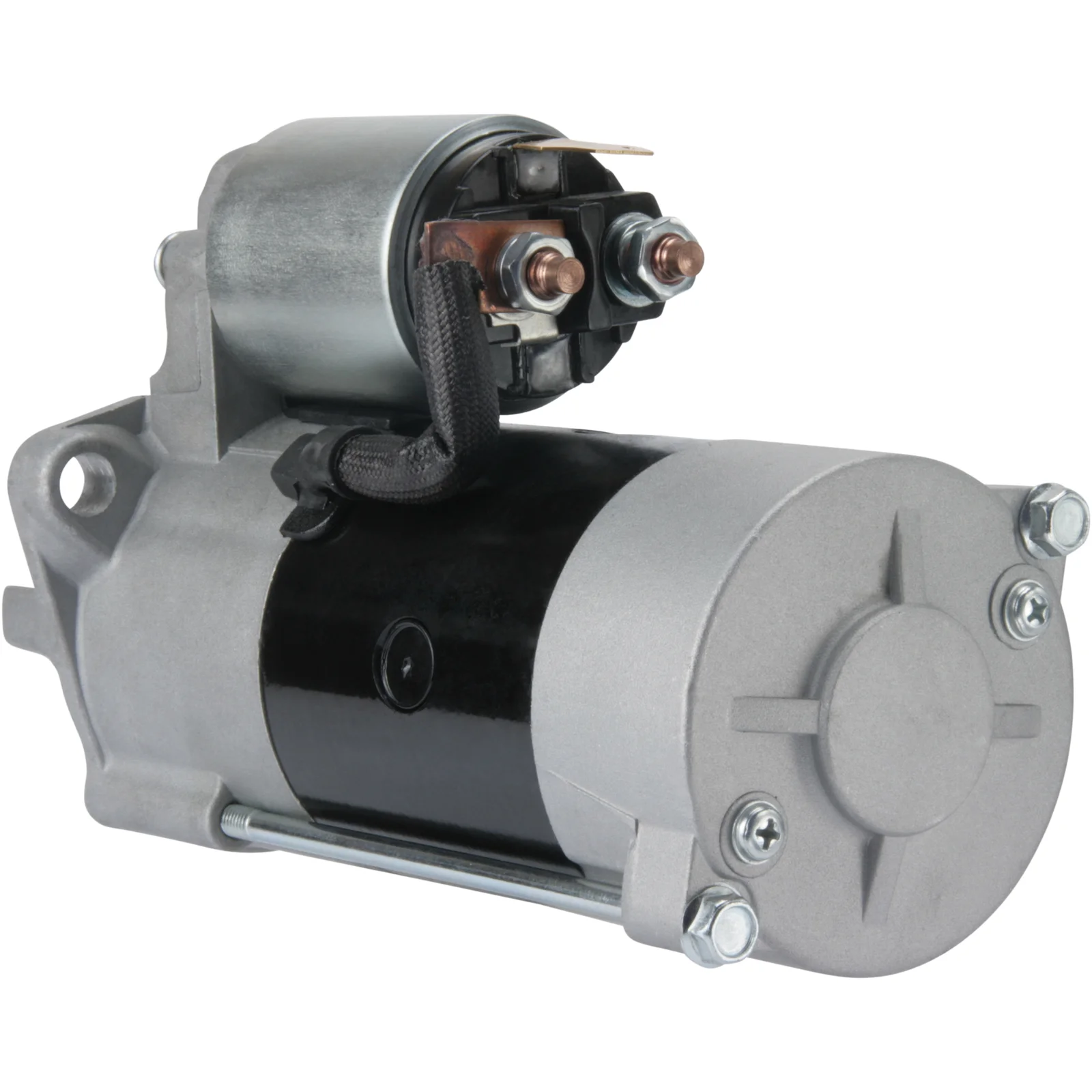

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110245

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.7
Mounting flange: 82.50
Drive distance: 26.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/backup: 162.00
Distance/front: 37.00
Number of teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 103.00
Rotation: CW
Total length in millimeters: 196.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    E5500-6301, F032110245, M40237, mg117559, MG120559, TM000A07101, 155-016-3011, 15221-63010, 15221-63014, 15221-63015, 15221-63016, 15221-63017, 15221-63018, 15321-63015, 15321-63016, 15321-63017, 15435-63012, 15501-63010, 15501-63011, 15501-63012, 15501-63013, 15501-63014, 15707-63011, 17311-63010, 17311-63011, 17311-63012, 17331-63010, 17331-63011, 17331-63012, 028000-3360, 028000-3361, 028000-7480, 028000-7481, 028000-8430, 028000-8431, 028000-8432, 028000-8434, 128000-6620, 128000-6621, 128000-6840, 128000-6841, 128000-6843

  • Normalised article numbler
    cst32140, cst40184, cst40250, cst40329, drs3225, e55006301, e55006314, f032110245, lrs01012, m40237, mg117559, mg120559, pbns3040, s9367s, smg117559, smn0006, str70117, tm000a07101, 8ea730263001, 8ea737133001, 4246, 4344, 16583, 17355, 17363, 17868n, 18146n, 19601, 19601n, 20675, 20932, 21929nd, 250104, 251084, 254649, 255240, 600350, 20513040, 0280003360, 0280003361, 0280007480, 0280007481, 0280008430, 0280008431, 0280008432, 0280008434, 683014092, 683015092, 1280006620, 1280006621, 1280006840, 1280006841, 1280006843, 1522163010, 1522163014, 1522163015, 1522163016, 1522163017, 1522163018, 1532163015, 1532163016, 1532163017, 1543563012, 1550163010, 1550163011, 1550163012, 1550163013, 1550163014, 1570763011, 1731163010, 1731163011, 1731163012, 1733163010, 1733163011, 1733163012
  • Description
    Voltage: 12
    kW: 1.7
    Mounting flange: 82.50
    Drive distance: 26.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/backup: 162.00
    Distance/front: 37.00
    Number of teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 103.00
    Rotation: CW
    Total length in millimeters: 196.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      E5500-6301, F032110245, M40237, mg117559, MG120559, TM000A07101, 155-016-3011, 15221-63010, 15221-63014, 15221-63015, 15221-63016, 15221-63017, 15221-63018, 15321-63015, 15321-63016, 15321-63017, 15435-63012, 15501-63010, 15501-63011, 15501-63012, 15501-63013, 15501-63014, 15707-63011, 17311-63010, 17311-63011, 17311-63012, 17331-63010, 17331-63011, 17331-63012, 028000-3360, 028000-3361, 028000-7480, 028000-7481, 028000-8430, 028000-8431, 028000-8432, 028000-8434, 128000-6620, 128000-6621, 128000-6840, 128000-6841, 128000-6843

    • Normalised article numbler
      cst32140, cst40184, cst40250, cst40329, drs3225, e55006301, e55006314, f032110245, lrs01012, m40237, mg117559, mg120559, pbns3040, s9367s, smg117559, smn0006, str70117, tm000a07101, 8ea730263001, 8ea737133001, 4246, 4344, 16583, 17355, 17363, 17868n, 18146n, 19601, 19601n, 20675, 20932, 21929nd, 250104, 251084, 254649, 255240, 600350, 20513040, 0280003360, 0280003361, 0280007480, 0280007481, 0280008430, 0280008431, 0280008432, 0280008434, 683014092, 683015092, 1280006620, 1280006621, 1280006840, 1280006841, 1280006843, 1522163010, 1522163014, 1522163015, 1522163016, 1522163017, 1522163018, 1532163015, 1532163016, 1532163017, 1543563012, 1550163010, 1550163011, 1550163012, 1550163013, 1550163014, 1570763011, 1731163010, 1731163011, 1731163012, 1733163010, 1733163011, 1733163012
