Article no.: F032110356

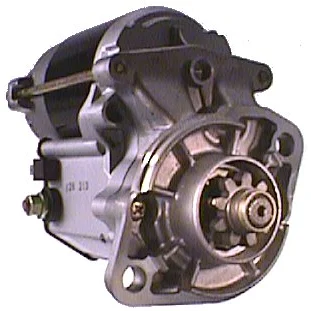

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 82.50
Drive distance: 25.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 118.50
Distance / front: 38.00
Number / teeth: 9
B+: M8
Position / 50: 10
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 190.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032110356, 25-39868-00, 16661-63011, 16661-63013, 16661-63015, 19616-63011, 19616-63012, 128000-2130, 128000-2131, 228000-1050, 228000-1052

  • Normalised article numbler
    cst40175, drs3233, f032110356, lrs01137, str30015, str8019, 8ea730266001, 4249, 18146, 18146n, 18147, 18277, 18277n, 104143, 251097, 252126, 253986800, 683006092, 1280002130, 1280002131, 1666163011, 1666163013, 1666163015, 1961663011, 1961663012, 2280001050, 2280001052
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 82.50
    Drive distance: 25.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 118.50
    Distance / front: 38.00
    Number / teeth: 9
    B+: M8
    Position / 50: 10
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 190.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110356, 25-39868-00, 16661-63011, 16661-63013, 16661-63015, 19616-63011, 19616-63012, 128000-2130, 128000-2131, 228000-1050, 228000-1052

    • Normalised article numbler
      cst40175, drs3233, f032110356, lrs01137, str30015, str8019, 8ea730266001, 4249, 18146, 18146n, 18147, 18277, 18277n, 104143, 251097, 252126, 253986800, 683006092, 1280002130, 1280002131, 1666163011, 1666163013, 1666163015, 1961663011, 1961663012, 2280001050, 2280001052
