Article no.: F032110415

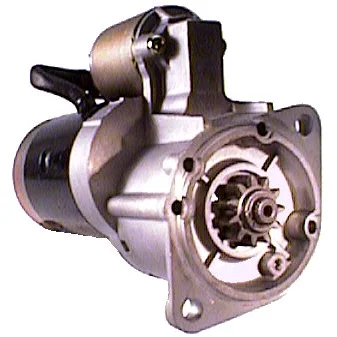

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 82.50
Drive distance: 8.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 196.50
Distance/front: 18.00
Number of teeth: 11
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 109.50
Rotation: CW
Total length in millimeters: 221.00
Drive type: Steel
Product info: Reman
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    F032110415, M002T58381, m2t58381, 23300-20h12

  • Normalised article numbler
    ads157, drs3363, f032110415, lrs01319, m002t58381, m2t58381, 8ea730268001, 4251, 16935, 16935n, 20728, 21733mi, 103862, 252091, 2330020h12, 11040361, 627005112
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 82.50
    Drive distance: 8.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 196.50
    Distance/front: 18.00
    Number of teeth: 11
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 109.50
    Rotation: CW
    Total length in millimeters: 221.00
    Drive type: Steel
    Product info: Reman
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110415, M002T58381, m2t58381, 23300-20h12

    • Normalised article numbler
      ads157, drs3363, f032110415, lrs01319, m002t58381, m2t58381, 8ea730268001, 4251, 16935, 16935n, 20728, 21733mi, 103862, 252091, 2330020h12, 11040361, 627005112
