Article no.: F032110438

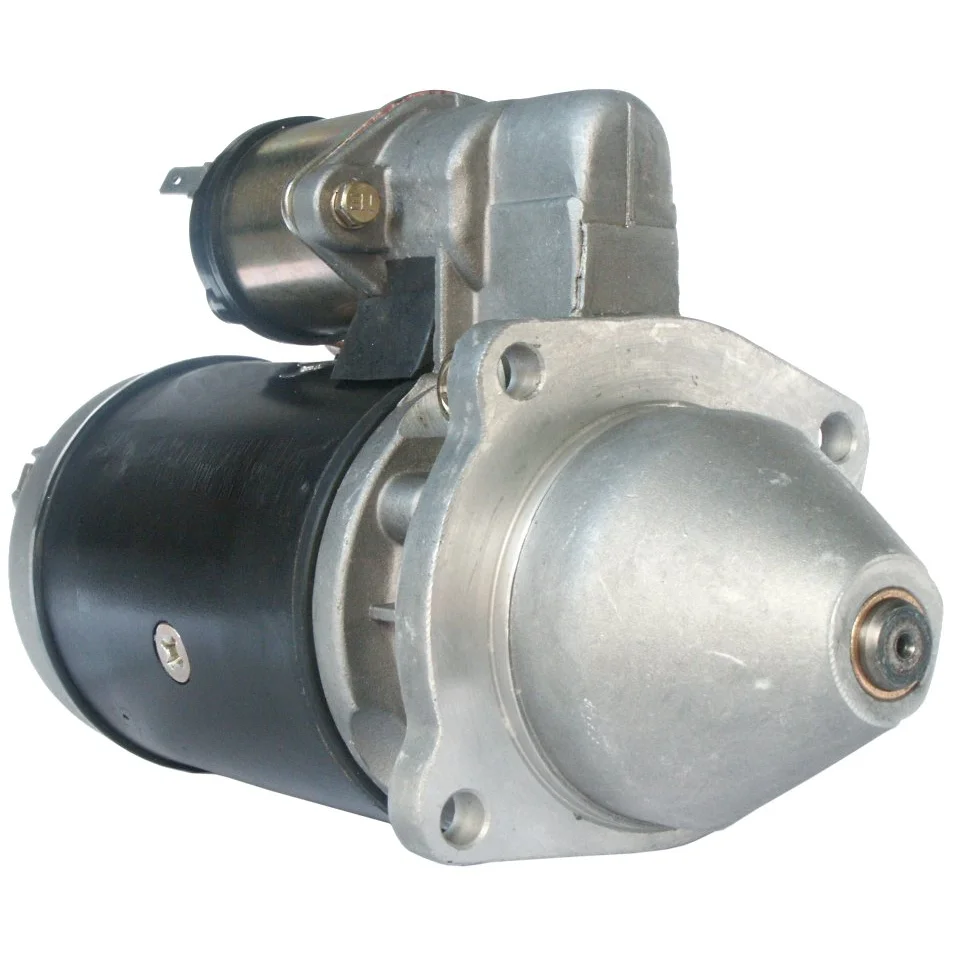

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.1, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.1
Mounting flange: 89.00
Drive distance: 19.50
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / rear: 225.50
Distance / front: 66.00
Number / teeth: 10
B+: M8
Position / 50: 10
Terminal 50: 9.50
Gear type: DD
Distance 2: 90.50
Distance 3: 90.50
Distance mm: 126.50
Rotation: CW
Total length mm: 309.00
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    F032110438, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 26925188A, 26925188d

  • Normalised article numbler
    bso7033, cst25104, drs3396, f032110438, lrs00172, lrs01008, str25011, 16660, 16660n, 17660, 22038lu, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 33393, 250076, 251119, 8213601, 26925188a, 26925188d, 685002102, 685030102
  • Description
    Voltage: 12
    kW: 2.1
    Mounting flange: 89.00
    Drive distance: 19.50
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / rear: 225.50
    Distance / front: 66.00
    Number / teeth: 10
    B+: M8
    Position / 50: 10
    Terminal 50: 9.50
    Gear type: DD
    Distance 2: 90.50
    Distance 3: 90.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 309.00
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110438, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 26925188A, 26925188d

    • Normalised article numbler
      bso7033, cst25104, drs3396, f032110438, lrs00172, lrs01008, str25011, 16660, 16660n, 17660, 22038lu, 26193, 26193a, 26193d, 26288, 26288a, 26288e, 26288f, 27420, 27420a, 27420b, 33393, 250076, 251119, 8213601, 26925188a, 26925188d, 685002102, 685030102
