Article no.: F032110439

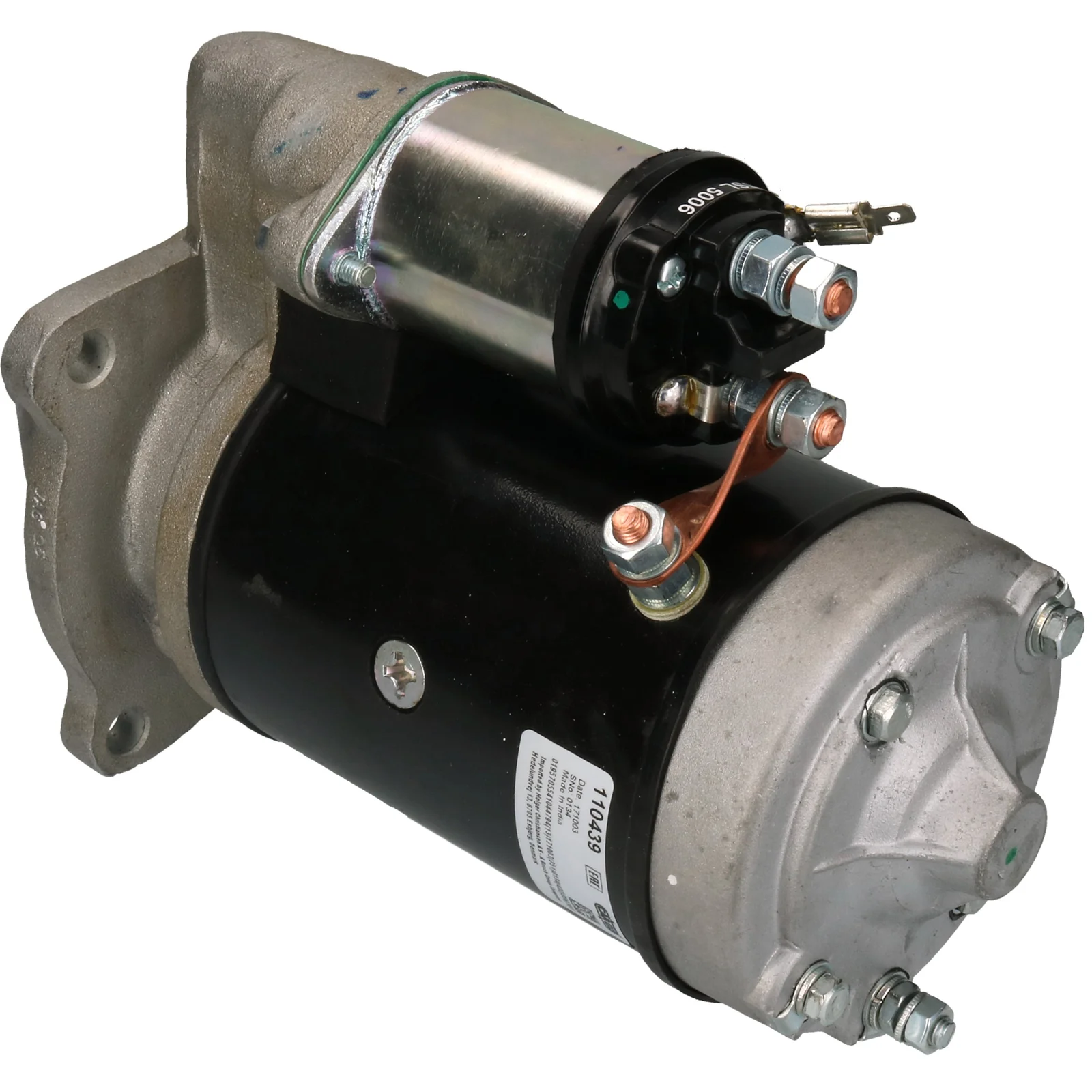

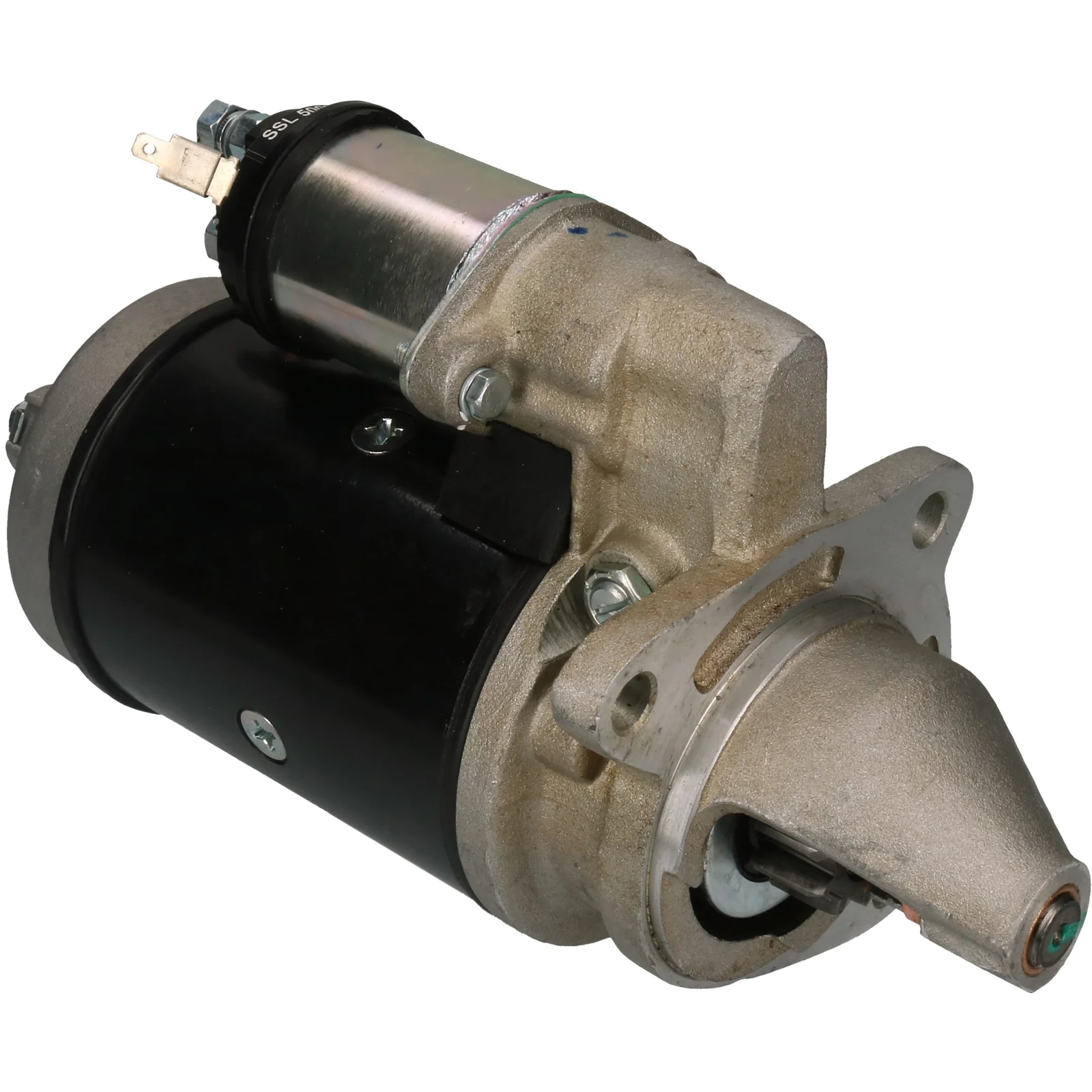

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Description

Massy-F.Start. M45, 12V-2.0kW 12V - 2.0kW, 10k A - 92mm, B - 24mm Alternative: 91-355-0301 or LU LRS 301, For Yourex product order LU LRS 190.

Voltage: 12
kW: 2.0
Mounting flange: 92.00
Drive distance: 25.00
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance/behind: 219.00
Distance/in front: 71.00
Number of teeth: 10
B+: M8
Position/B+: 60
Position/50: 10
Terminal 50: 6.30
Gear type: DD
Distance 2: 146.00
Distance 3: 103.00
Distance mm: 103.00
Rotation: CW
Total length mm: 309.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 3 (0)
  • OEM

    azj0404, azj3114, azj3248, azj3531, AZJ3544, azk5111, cs109, CT6005706622, d11e141, d11e155, d11e84, F032110439, LRS190, nsb509, s12-85, s12-87, 0001 362 008, 0001 362 084, 10.130.141, 11.130.074, 11.130.194, 11.130.408, 11.130.711, 0520, 1873a012, 2873a012, 2873A012T, 2873a017, 2873a104, 2873d005, 6127, 6127C, 6232, 6232a, 26145, 26145a, 26145h, 26145n, 26154, 26154a, 26154h, 26154j, 26154L, 26154M, 26154n, 26186, 26186a, 26200, 26200a, 26200B, 26208, 26208e, 26220, 26220a, 26233, 26233A, 26233a, 26233B, 26233F, 26233H, 26233j, 26233K, 26233k, 26233L, 26233m, 26264, 26264E, 26264H, 26264J, 26391, 26391A, 26391a, 26412, 26412a, 27408, 27409, 27409a, 27409b, 27409d, 27421, 27432, 27432a, 27432r, 27459, 27459a, 27469, 27469a, 27470, 27470A, 27470a, 27470b, 27470D, 27470H, 27474, 27474a, 27474b, 27480, 27480A, 27480B, 27488, 27488A, 110439, 432567, 432570, 432571, 433313, 535388M91, 579395M91, 887057R2, 898090M1, 1109257, 0001362008, 1447698M1, 1680064M1, 1680065M2, 1680065M3, 1680065R3, 1808449M2, 1893611M91, 1903119M91, 2873116, 2873118, 2873143, 3539389M91, 3542184M91, 3542184M92, 3546390M91, 3597426R2, 3650746M91, 3930505R1, 26925189A, 26925189d, 63227470, 63227480, 63227488, 6005706622, 9000143400, 9000143404
  • Normalised article numbler

    azj0404, azj3114, azj3248, azj3531, azj3544, azk5111, bso7001, cs109, cst21114, cst21123, cst21175, cst21208, cst25100, ct6005706622, d11e141, d11e155, d11e84, drs1150, drs3286, f032110439, is0408, is0520, is0711, les0015, lrs00190, lrs00301, lrs190, ms204, ms205, ms343, nd079, nsb509, s1285, s1287, s4018, s9447letrika, str25020, 8ea015642621, 8ea725965001, 0520, 1873a012, 2873a012, 2873a012t, 2873a017, 2873a104, 2873d005, 4003, 6127, 6127c, 6232, 6232a, 10109, 17639, 17639n, 19658n, 22302lu, 26145, 26145a, 26145h, 26145n, 26154, 26154a, 26154h, 26154j, 26154l, 26154m, 26154n, 26186, 26186a, 26200, 26200a, 26200b, 26208, 26208e, 26220, 26220a, 26233, 26233a, 26233b, 26233f, 26233h, 26233j, 26233k, 26233l, 26233m, 26264, 26264e, 26264h, 26264j, 26391, 26391a, 26412, 26412a, 27408, 27409, 27409a, 27409b, 27409d, 27421, 27432, 27432a, 27432r, 27459, 27459a, 27469, 27469a, 27470, 27470a, 27470b, 27470d, 27470h, 27474, 27474a, 27474b, 27480, 27480a, 27480b, 27488, 27488a, 33380, 33536, 103906, 106517, 110439, 220738, 220738a, 250040, 251073, 432567, 432570, 432571, 433313, 535388m91, 579395m91, 887057r2, 898090m1, 1109257, 0001362008, 0001362084, 1447698m1, 1680064m1, 1680065m2, 1680065m3, 1680065r3, 1808449m2, 1893611m91, 1903119m91, 2873116, 2873118, 2873143, 3539389m91, 3542184m91, 3542184m92, 3546390m91, 3597426r2, 3650746m91, 3930505r1, 8212244, 10130141, 11090035, 11130074, 11130194, 11130408, 11130711, 20500190, 26925189a, 26925189d, 063227421, 063227470, 63227470, 63227480, 063227488, 63227488, 66925050, 344001102, 600223102, 620004132, 943226391, 0986023440, 6005706622, 9000143400, 9000143404, 063227470010, 063227488010
