Article no.: F032110444

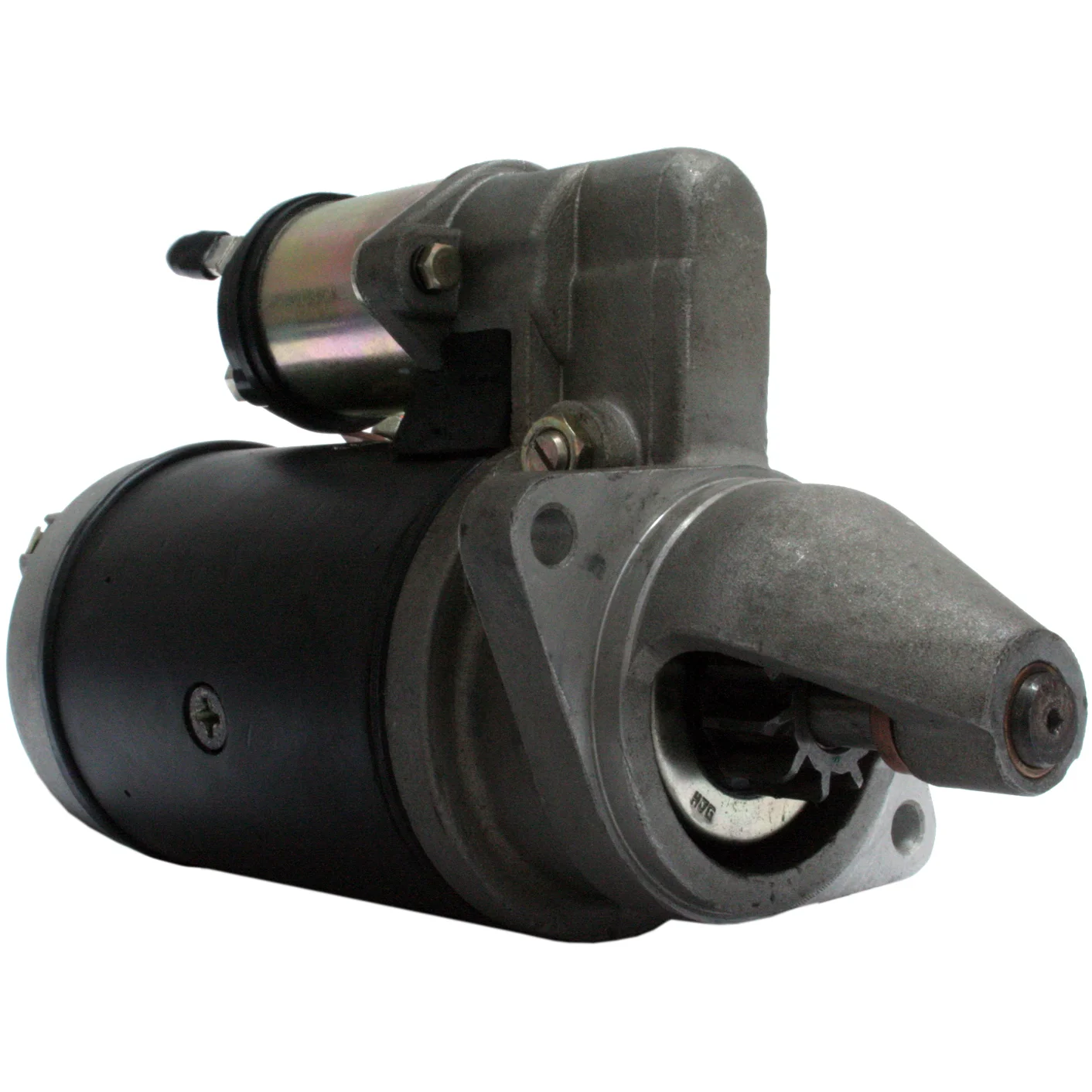

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.1, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.1
Mount. flange: 89.00
Drive dist.: 23.50
Mount. hole 2 mm: 10.70
Mount. hole 1 mm: 10.70
Dist./back: 223.00
Dist./front: 73.00
No./teeth: 10
B+: M8
Position/50: 10
Terminal 50: 9.50
Gear type: DD
Dist. mm: 127.00
Rotation: CW
Total length mm: 309.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032110444, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 028000-2260, 028000-2264, 028000-2265, 028000-9861

  • Normalised article numbler
    ats1761, bso7180, drs3423, drs3561, f032110444, les0020, lrs00261, qs0362, str25034, vs178, 8ea737092001, 4157, 10947, 18063, 18263, 18263n, 22296lu, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 33621, 250083, 0280002260, 0280002264, 0280002265, 0280009861, 314002102, 335108092
  • Description
    Voltage: 12
    kW: 2.1
    Mount. flange: 89.00
    Drive dist.: 23.50
    Mount. hole 2 mm: 10.70
    Mount. hole 1 mm: 10.70
    Dist./back: 223.00
    Dist./front: 73.00
    No./teeth: 10
    B+: M8
    Position/50: 10
    Terminal 50: 9.50
    Gear type: DD
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 309.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110444, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 028000-2260, 028000-2264, 028000-2265, 028000-9861

    • Normalised article numbler
      ats1761, bso7180, drs3423, drs3561, f032110444, les0020, lrs00261, qs0362, str25034, vs178, 8ea737092001, 4157, 10947, 18063, 18263, 18263n, 22296lu, 26371, 26371a, 26371d, 26371e, 26371f, 26400, 26400a, 26400b, 26400d, 27431, 27431a, 27431b, 33621, 250083, 0280002260, 0280002264, 0280002265, 0280009861, 314002102, 335108092
