HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110447

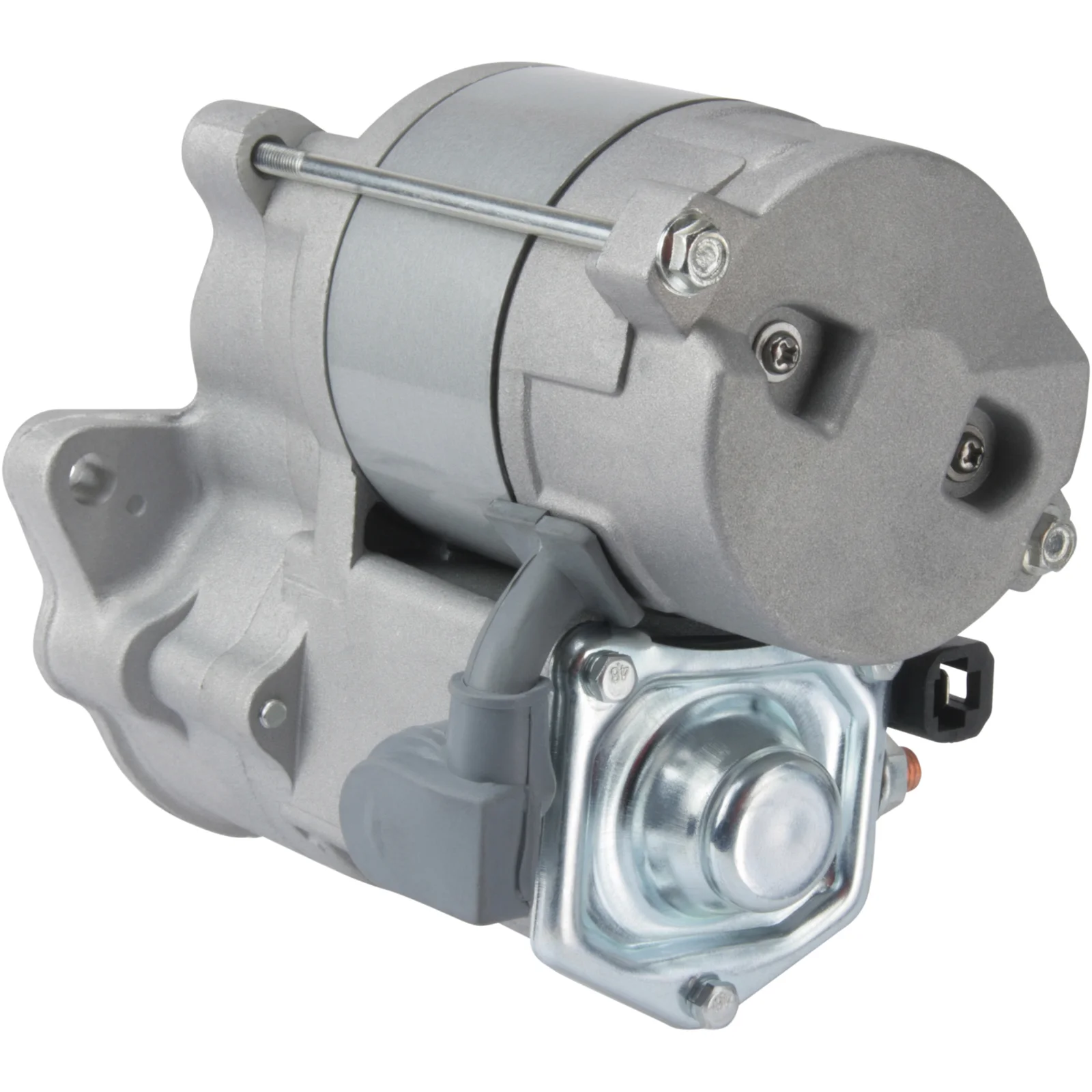

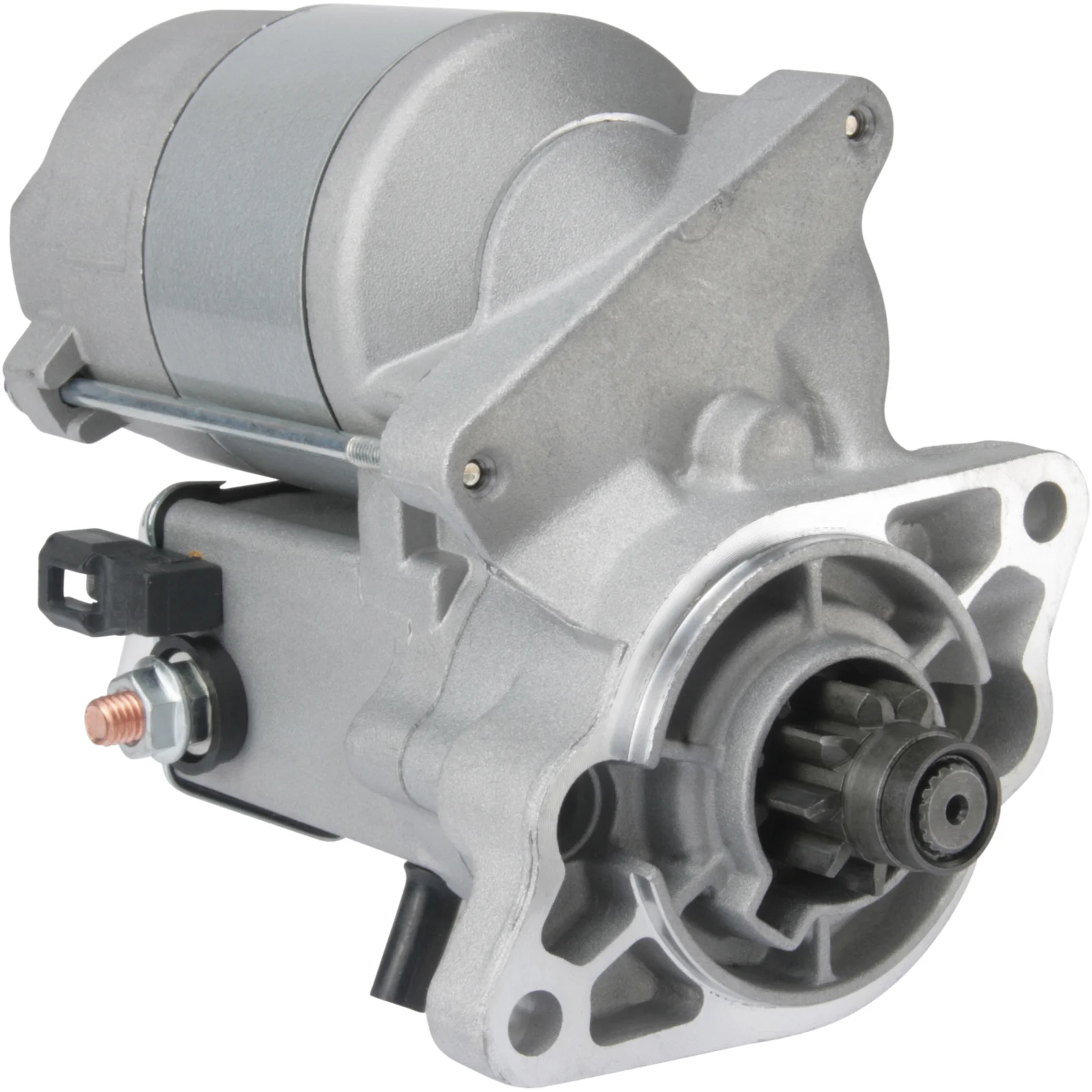

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Kubota Starter motor 12V-1.4kW, 9k 12V - 1.4kW, 9k Fits Kubota engines: D722 D650 D902 D905 V1105 V1305 V1505 V1505T Z400 D600 D1105 D1103 D1005-E. Alternative: 91-293-6320 = (13 gear), For Yourex product order 91-293-8320

Voltage: 12
kW: 1.0
Mounting flange: 66.00
Drive distance: 17.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance/back: 126.00
Distance/front: 30.00
Number/teeth: 9
B+: M8
Position/B+: 15
Position/50: 10
Terminal 50: 6.30
Gear type: GR
Distance mm: 109.50
Rotation: CW
Total length mm: 200.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (0)

Files

  • OEM
    F032110447, js730, k3511-81410, K7571-96800, K7571-96810, 25-15370-00, 98-9705, 15471-63011, 15504-63010, 15504-63011, 15504-63012, 15741-63010, 15741-63011, 16285-63010, 16611-63011, 16611-63012, 16611-63013, 16612-63010, 16612-63011, 16612-63012, 16695-63011, 16695-63012, 16695-63013, 16781-63011, 16871-63010, 16871-63011, 16871-63012, 19090-17861, 19215-63012, 19215-63013, 19269-63010, 19269-63011, 19269-63012, 19269-63013, 19400-63011, 19420-63012, 028000-8320, 028000-8321, 028000-8322, 37560-63010, 37560-63011, 37560-63012, 110447, 128000-0050, 128000-3590, 128000-3591, 128000-5260, 128000-5261, 128000-9950, 128000-9951, 128000-9958, 228000-0790, 228000-0791, 228000-0800, 228000-0951, 228000-0970, 228000-0971, 228000-0980, 228000-0981, 228000-0990, 228000-0991, 228000-1060, 228000-1061, 228000-1530, 228000-1531, 228000-2060, 228000-2061, 228000-3660, 228000-7150, 228000-7151, 428000-2640, 1959380C1, 9141327, 9722809-106, 01527853002S, 1627163013

  • Normalised article numbler
    cst40143, drs3229, drs3966, dsn2079, f032110447, f042000195, f042001127, f042s00195, f042s01127, js730, k351181410, k757196800, k757196810, les0281, lrs01169, s6045, str30012, str3569, str8110, 8ea012527111, 8ea730270001, 4253, 17028, 17028n, 17098n, 18400n, 18400r, 18414, 18414n, 18417n, 18419n, 20730, 22036nd, 110447, 251164, 252194, 253157, 255267, 989705, 1959380c1, 9141327, 11040508, 251537000, 0280008320, 0280008321, 0280008322, 683010092, 683031092, 690509092, 690546092, 0986023460, 1280000050, 1280003590, 1280003591, 1280005260, 1280005261, 1280009950, 1280009951, 1280009958, 01527853002s, 1547163011, 1550463010, 1550463011, 1550463012, 1574163010, 1574163011, 1627163013, 1628563010, 1661163011, 1661163012, 1661163013, 1661263010, 1661263011, 1661263012, 1669563011, 1669563012, 1669563013, 1678163011, 1687163010, 1687163011, 1687163012, 1909017861, 1921563012, 1921563013, 1926963010, 1926963011, 1926963012, 1926963013, 1940063011, 1942063012, 2280000790, 2280000791, 2280000800, 2280000951, 2280000970, 2280000971, 2280000980, 2280000981, 2280000990, 2280000991, 2280001060, 2280001061, 2280001530, 2280001531, 2280002060, 2280002061, 2280003660, 2280007150, 2280007151, 3756063010, 3756063011, 3756063012, 4280002640, 9722809106
  • Description
    Kubota Starter motor 12V-1.4kW, 9k 12V - 1.4kW, 9k Fits Kubota engines: D722 D650 D902 D905 V1105 V1305 V1505 V1505T Z400 D600 D1105 D1103 D1005-E. Alternative: 91-293-6320 = (13 gear), For Yourex product order 91-293-8320

    Voltage: 12
    kW: 1.0
    Mounting flange: 66.00
    Drive distance: 17.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance/back: 126.00
    Distance/front: 30.00
    Number/teeth: 9
    B+: M8
    Position/B+: 15
    Position/50: 10
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 109.50
    Rotation: CW
    Total length mm: 200.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110447, js730, k3511-81410, K7571-96800, K7571-96810, 25-15370-00, 98-9705, 15471-63011, 15504-63010, 15504-63011, 15504-63012, 15741-63010, 15741-63011, 16285-63010, 16611-63011, 16611-63012, 16611-63013, 16612-63010, 16612-63011, 16612-63012, 16695-63011, 16695-63012, 16695-63013, 16781-63011, 16871-63010, 16871-63011, 16871-63012, 19090-17861, 19215-63012, 19215-63013, 19269-63010, 19269-63011, 19269-63012, 19269-63013, 19400-63011, 19420-63012, 028000-8320, 028000-8321, 028000-8322, 37560-63010, 37560-63011, 37560-63012, 110447, 128000-0050, 128000-3590, 128000-3591, 128000-5260, 128000-5261, 128000-9950, 128000-9951, 128000-9958, 228000-0790, 228000-0791, 228000-0800, 228000-0951, 228000-0970, 228000-0971, 228000-0980, 228000-0981, 228000-0990, 228000-0991, 228000-1060, 228000-1061, 228000-1530, 228000-1531, 228000-2060, 228000-2061, 228000-3660, 228000-7150, 228000-7151, 428000-2640, 1959380C1, 9141327, 9722809-106, 01527853002S, 1627163013

    • Normalised article numbler
      cst40143, drs3229, drs3966, dsn2079, f032110447, f042000195, f042001127, f042s00195, f042s01127, js730, k351181410, k757196800, k757196810, les0281, lrs01169, s6045, str30012, str3569, str8110, 8ea012527111, 8ea730270001, 4253, 17028, 17028n, 17098n, 18400n, 18400r, 18414, 18414n, 18417n, 18419n, 20730, 22036nd, 110447, 251164, 252194, 253157, 255267, 989705, 1959380c1, 9141327, 11040508, 251537000, 0280008320, 0280008321, 0280008322, 683010092, 683031092, 690509092, 690546092, 0986023460, 1280000050, 1280003590, 1280003591, 1280005260, 1280005261, 1280009950, 1280009951, 1280009958, 01527853002s, 1547163011, 1550463010, 1550463011, 1550463012, 1574163010, 1574163011, 1627163013, 1628563010, 1661163011, 1661163012, 1661163013, 1661263010, 1661263011, 1661263012, 1669563011, 1669563012, 1669563013, 1678163011, 1687163010, 1687163011, 1687163012, 1909017861, 1921563012, 1921563013, 1926963010, 1926963011, 1926963012, 1926963013, 1940063011, 1942063012, 2280000790, 2280000791, 2280000800, 2280000951, 2280000970, 2280000971, 2280000980, 2280000981, 2280000990, 2280000991, 2280001060, 2280001061, 2280001530, 2280001531, 2280002060, 2280002061, 2280003660, 2280007150, 2280007151, 3756063010, 3756063011, 3756063012, 4280002640, 9722809106
