Article no.: F032110460

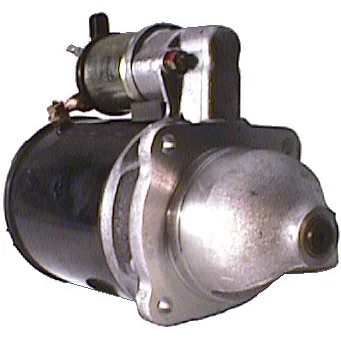

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.8, No./teeth: 10, Rotation: CW

Description

JCB Starter motor 12V-2.8kW, 10k 12V - 2.8kW, 10k A - 89mm, B - 29mm Suggestion: 91-441-0635 (4.0kW), For Yourrex product order LU LRS 137 Voltage: 12 kW: 2.8 Mounting flange: 89.00 Drive distance: 29.50 Mounting hole 3 mm: 10.50 Mounting hole 2 mm: 10.50 Mounting hole 1 mm: 10.50 Distance / back: 217.50 Distance / front: 76.00 Number / teeth: 10 B+: M8 Position / 50: 10 Terminal 50: 6.30 Gear type: DD Distance 2: 89.50 Distance 3: 89.50 Distance mm: 126.50 Rotation: CW Total length mm: 307.50 Drive type: Steel Production info: BN Waterproof: No Oil sealed: No Number / mounting holes: 3 (0)

Files

  • OEM
    AL35519, F032110460, LRS 137, LRS 162, LRS 305, LRS 306, LRS 436, LRS137, 0001 359 126, 0001 367 022, 7X1361, 2873B053, 2873b053, 26274, 26295, 26295a, 26295b, 26295d, 26295e, 26295f, 26295m, 26295r, 26358, 26358a, 26358b, 26358h, 26358r, 26374, 26408, 26408a, 26408d, 26408e, 26408r, 26436, 26436a, 26436b, 27503, 27503a, 27503d, 27519, 27519a, 27519d, 27537, 27537a, 27537b, 27541, 27559, 27559a, 27559e, 27590A, 27629, 110460, 0001354104, 0001359064, 0001359126, 0001367022, 0001369002, 0001369006, 2873002, 0035752300, 73154290, 73159536

  • Normalised article numbler
    al35519, drs3447, f032110460, lrs00137, lrs00162, lrs00305, lrs01520, lrs137, lrs162, lrs305, lrs306, lrs436, s0486, 7x1361, 2873b053, 10948, 17650, 17651, 17652n, 22340lu, 26274, 26295, 26295a, 26295b, 26295d, 26295e, 26295f, 26295m, 26295r, 26358, 26358a, 26358b, 26358h, 26358r, 26374, 26408, 26408a, 26408d, 26408e, 26408r, 26436, 26436a, 26436b, 27503, 27503a, 27503d, 27519, 27519a, 27519d, 27537, 27537a, 27537b, 27541, 27559, 27559a, 27559e, 27590a, 27629, 33411, 110460, 251022, 252494, 0001354104, 0001359064, 0001359126, 0001367022, 0001369002, 0001369006, 2873002, 11090243, 0035752300, 063227559, 73154290, 73159536, 600012102, 672003102, 700023103
  • Description
    JCB Starter motor 12V-2.8kW, 10k 12V - 2.8kW, 10k A - 89mm, B - 29mm Suggestion: 91-441-0635 (4.0kW), For Yourrex product order LU LRS 137 Voltage: 12 kW: 2.8 Mounting flange: 89.00 Drive distance: 29.50 Mounting hole 3 mm: 10.50 Mounting hole 2 mm: 10.50 Mounting hole 1 mm: 10.50 Distance / back: 217.50 Distance / front: 76.00 Number / teeth: 10 B+: M8 Position / 50: 10 Terminal 50: 6.30 Gear type: DD Distance 2: 89.50 Distance 3: 89.50 Distance mm: 126.50 Rotation: CW Total length mm: 307.50 Drive type: Steel Production info: BN Waterproof: No Oil sealed: No Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AL35519, F032110460, LRS 137, LRS 162, LRS 305, LRS 306, LRS 436, LRS137, 0001 359 126, 0001 367 022, 7X1361, 2873B053, 2873b053, 26274, 26295, 26295a, 26295b, 26295d, 26295e, 26295f, 26295m, 26295r, 26358, 26358a, 26358b, 26358h, 26358r, 26374, 26408, 26408a, 26408d, 26408e, 26408r, 26436, 26436a, 26436b, 27503, 27503a, 27503d, 27519, 27519a, 27519d, 27537, 27537a, 27537b, 27541, 27559, 27559a, 27559e, 27590A, 27629, 110460, 0001354104, 0001359064, 0001359126, 0001367022, 0001369002, 0001369006, 2873002, 0035752300, 73154290, 73159536

    • Normalised article numbler
      al35519, drs3447, f032110460, lrs00137, lrs00162, lrs00305, lrs01520, lrs137, lrs162, lrs305, lrs306, lrs436, s0486, 7x1361, 2873b053, 10948, 17650, 17651, 17652n, 22340lu, 26274, 26295, 26295a, 26295b, 26295d, 26295e, 26295f, 26295m, 26295r, 26358, 26358a, 26358b, 26358h, 26358r, 26374, 26408, 26408a, 26408d, 26408e, 26408r, 26436, 26436a, 26436b, 27503, 27503a, 27503d, 27519, 27519a, 27519d, 27537, 27537a, 27537b, 27541, 27559, 27559a, 27559e, 27590a, 27629, 33411, 110460, 251022, 252494, 0001354104, 0001359064, 0001359126, 0001367022, 0001369002, 0001369006, 2873002, 11090243, 0035752300, 063227559, 73154290, 73159536, 600012102, 672003102, 700023103
