Article no.: F032110461

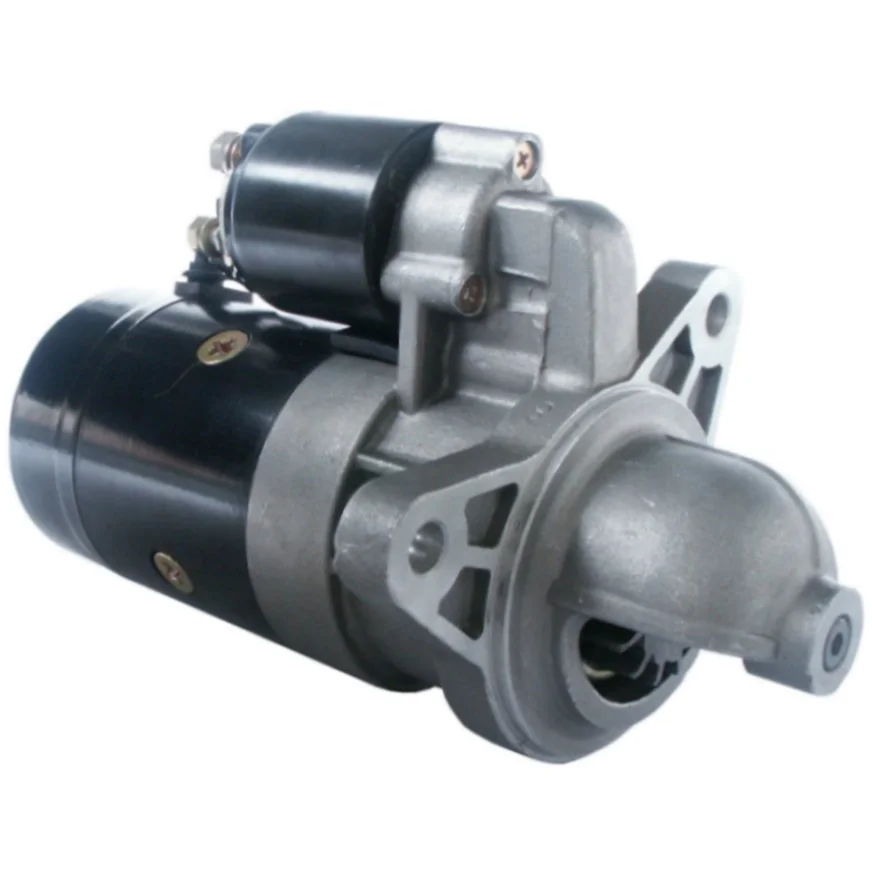

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.8, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kilowatt: 2.8
Mount. flange: 92.00
Drive distance: 21.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Distance/backup: 201.50
Distance/front: 61.00
Number/teeth: 12
B+: M8
Position/50: 17
Terminal 50: M6
Gear type: DD
Distance 2: 145.00
Distance 3: 117.00
Distance mm: 76.50
Rotation: CW
Total length mm: 272.00
Terminal 30h: M5
Position/30h: 30
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mount. holes: 3 (0)

Files

  • OEM
    azj3279, cs337, ESA1255R, ESA255, F032110461, nsb521, P81DBE218K75AB, R755F11000BB, R835X11000AC1, 11.130.769, 98VB11000BB, 715F11000JA, 715f11000ma, 755f11000aa, 755f11000ab, 835X11000AC, 26355, 26356, 26388, 26407, 27501, 27501a, 27501b, 27501e, 27531, 27567, 27577, 27577A, 0001358200, 0001358201, 0001358202, 0001362307, 1416198, 1416252, 1507703, 1516738R, 1626195, 1653206, 1653210, 5003643, 6144117, 6154907, 9142724, 9142860, 63227501

  • Normalised article numbler
    azj3279, bso7007, cs337, cst25107, drs0950, drs0950n, drs0950x, drs3789, esa1255r, esa255, f032110461, f032us0001, frs565, is0769, lrs00304, lrs00673, lrs00739, lrs01326, lrt00176, ms318, nsb521, p81dbe218k75ab, qs0774, r755f11000bb, r835x11000ac1, s4007, str10003, str10003an, str10037, strb407, vs128, 8ea011610361, 8ea726085001, 98vb11000bb, 715f11000ja, 715f11000ma, 755f11000aa, 755f11000ab, 835x11000ac, 1526, 3818, 3879, 11432, 11433, 26355, 26356, 26388, 26407, 27501, 27501a, 27501b, 27501e, 27531, 27567, 27577, 27577a, 30670n, 32512n, 32512r, 220020, 220020a, 250280, 433292, 726107, 726907, 0001358200, 0001358201, 0001358202, 0001362307, 1416198, 1416252, 1507703, 1516738r, 1626195, 1653206, 1653210, 2010950, 5003643, 6144117, 6154907, 8010950, 9142724, 9142860, 11010950, 11130769, 20500673, 063227501, 63227501, 320006132, 620003132, 0986010950, 0986010952, 0986010953, 0986020181, 0986034670, 0986034673, 0986034674
  • Description
    Voltage: 12
    kilowatt: 2.8
    Mount. flange: 92.00
    Drive distance: 21.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Distance/backup: 201.50
    Distance/front: 61.00
    Number/teeth: 12
    B+: M8
    Position/50: 17
    Terminal 50: M6
    Gear type: DD
    Distance 2: 145.00
    Distance 3: 117.00
    Distance mm: 76.50
    Rotation: CW
    Total length mm: 272.00
    Terminal 30h: M5
    Position/30h: 30
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3279, cs337, ESA1255R, ESA255, F032110461, nsb521, P81DBE218K75AB, R755F11000BB, R835X11000AC1, 11.130.769, 98VB11000BB, 715F11000JA, 715f11000ma, 755f11000aa, 755f11000ab, 835X11000AC, 26355, 26356, 26388, 26407, 27501, 27501a, 27501b, 27501e, 27531, 27567, 27577, 27577A, 0001358200, 0001358201, 0001358202, 0001362307, 1416198, 1416252, 1507703, 1516738R, 1626195, 1653206, 1653210, 5003643, 6144117, 6154907, 9142724, 9142860, 63227501

    • Normalised article numbler
      azj3279, bso7007, cs337, cst25107, drs0950, drs0950n, drs0950x, drs3789, esa1255r, esa255, f032110461, f032us0001, frs565, is0769, lrs00304, lrs00673, lrs00739, lrs01326, lrt00176, ms318, nsb521, p81dbe218k75ab, qs0774, r755f11000bb, r835x11000ac1, s4007, str10003, str10003an, str10037, strb407, vs128, 8ea011610361, 8ea726085001, 98vb11000bb, 715f11000ja, 715f11000ma, 755f11000aa, 755f11000ab, 835x11000ac, 1526, 3818, 3879, 11432, 11433, 26355, 26356, 26388, 26407, 27501, 27501a, 27501b, 27501e, 27531, 27567, 27577, 27577a, 30670n, 32512n, 32512r, 220020, 220020a, 250280, 433292, 726107, 726907, 0001358200, 0001358201, 0001358202, 0001362307, 1416198, 1416252, 1507703, 1516738r, 1626195, 1653206, 1653210, 2010950, 5003643, 6144117, 6154907, 8010950, 9142724, 9142860, 11010950, 11130769, 20500673, 063227501, 63227501, 320006132, 620003132, 0986010950, 0986010952, 0986010953, 0986020181, 0986034670, 0986034673, 0986034674
