Article no.: F032110465

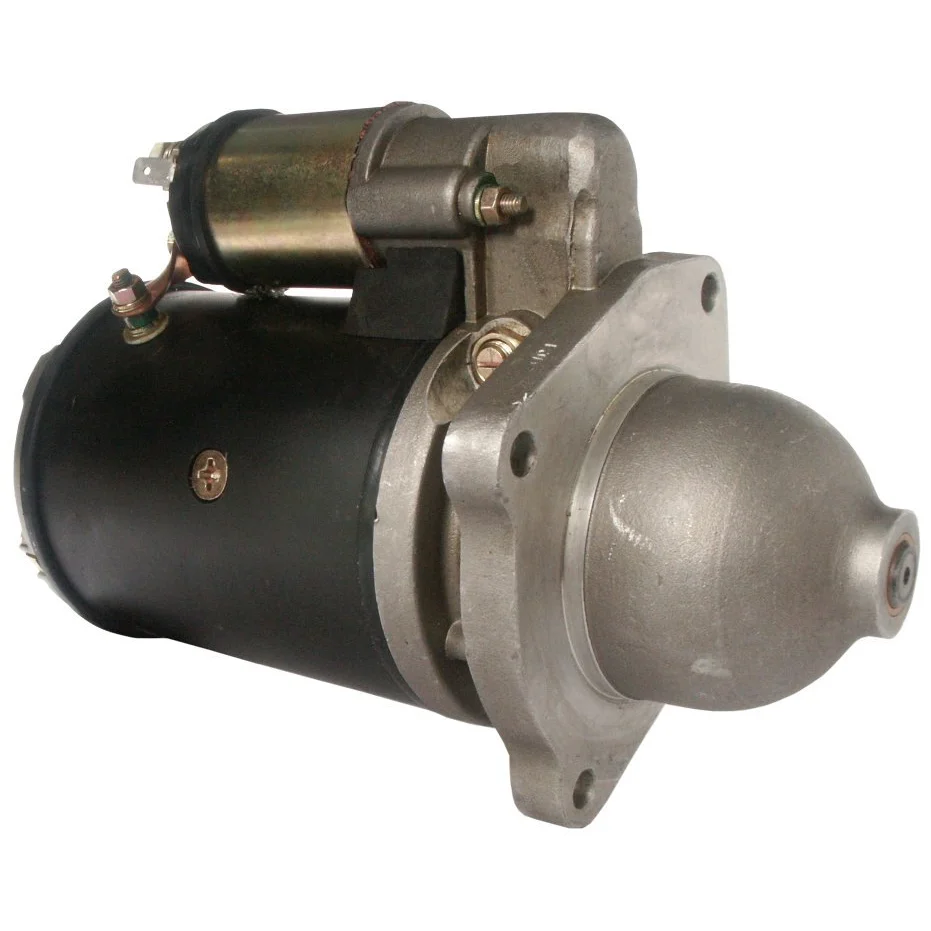

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.8, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.8
Mount. flange: 92.00
Drive dist.: 20.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 226.50
Dist./front: 71.50
No./teeth: 10
B+: M8
Position/50: 10
Gear type: DD
Dist. 2: 103.50
Dist. 3: 103.50
Dist. mm: 145.50
Rotation: CW
Position/b-: 40
B-: M8
Total length mm: 320.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Files

  • OEM
    cs336, F032110465, nsb535, 733F11000AA, 26265, 26311, 26341, 26341b, 26341d, 26341j, 26342b, 26342l, 26360, 26431, 26431a, 26431b, 27511, 27511a, 27554, 27554a, 27554b, 0001359082, 1516740R, 1526103, 1624968, 20500107

  • Normalised article numbler
    bso7015, cs336, cst25121, drs2470, drs3289, drs3407, drs3408, drs3409, f032110465, les0002, lrs00107, lrs00375, lrs00479, lrs00620, ms21, msn196, nsb535, s4006, str25009, vs234, 8ea726084001, 733f11000aa, 4028, 10336, 10339, 17647, 17647n, 22687lu, 22687lu1, 26265, 26311, 26341, 26341b, 26341d, 26341j, 26342b, 26342l, 26360, 26431, 26431a, 26431b, 27511, 27511a, 27554, 27554a, 27554b, 33437, 250070, 250484, 0001359082, 1516740r, 1526103, 1624968, 8812470, 11012470, 20500107, 063227554, 619001102, 619024102, 0986012470, 063227554010
  • Description
    Voltage: 12
    kW: 2.8
    Mount. flange: 92.00
    Drive dist.: 20.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 226.50
    Dist./front: 71.50
    No./teeth: 10
    B+: M8
    Position/50: 10
    Gear type: DD
    Dist. 2: 103.50
    Dist. 3: 103.50
    Dist. mm: 145.50
    Rotation: CW
    Position/b-: 40
    B-: M8
    Total length mm: 320.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs336, F032110465, nsb535, 733F11000AA, 26265, 26311, 26341, 26341b, 26341d, 26341j, 26342b, 26342l, 26360, 26431, 26431a, 26431b, 27511, 27511a, 27554, 27554a, 27554b, 0001359082, 1516740R, 1526103, 1624968, 20500107

    • Normalised article numbler
      bso7015, cs336, cst25121, drs2470, drs3289, drs3407, drs3408, drs3409, f032110465, les0002, lrs00107, lrs00375, lrs00479, lrs00620, ms21, msn196, nsb535, s4006, str25009, vs234, 8ea726084001, 733f11000aa, 4028, 10336, 10339, 17647, 17647n, 22687lu, 22687lu1, 26265, 26311, 26341, 26341b, 26341d, 26341j, 26342b, 26342l, 26360, 26431, 26431a, 26431b, 27511, 27511a, 27554, 27554a, 27554b, 33437, 250070, 250484, 0001359082, 1516740r, 1526103, 1624968, 8812470, 11012470, 20500107, 063227554, 619001102, 619024102, 0986012470, 063227554010
