Article no.: F032110469

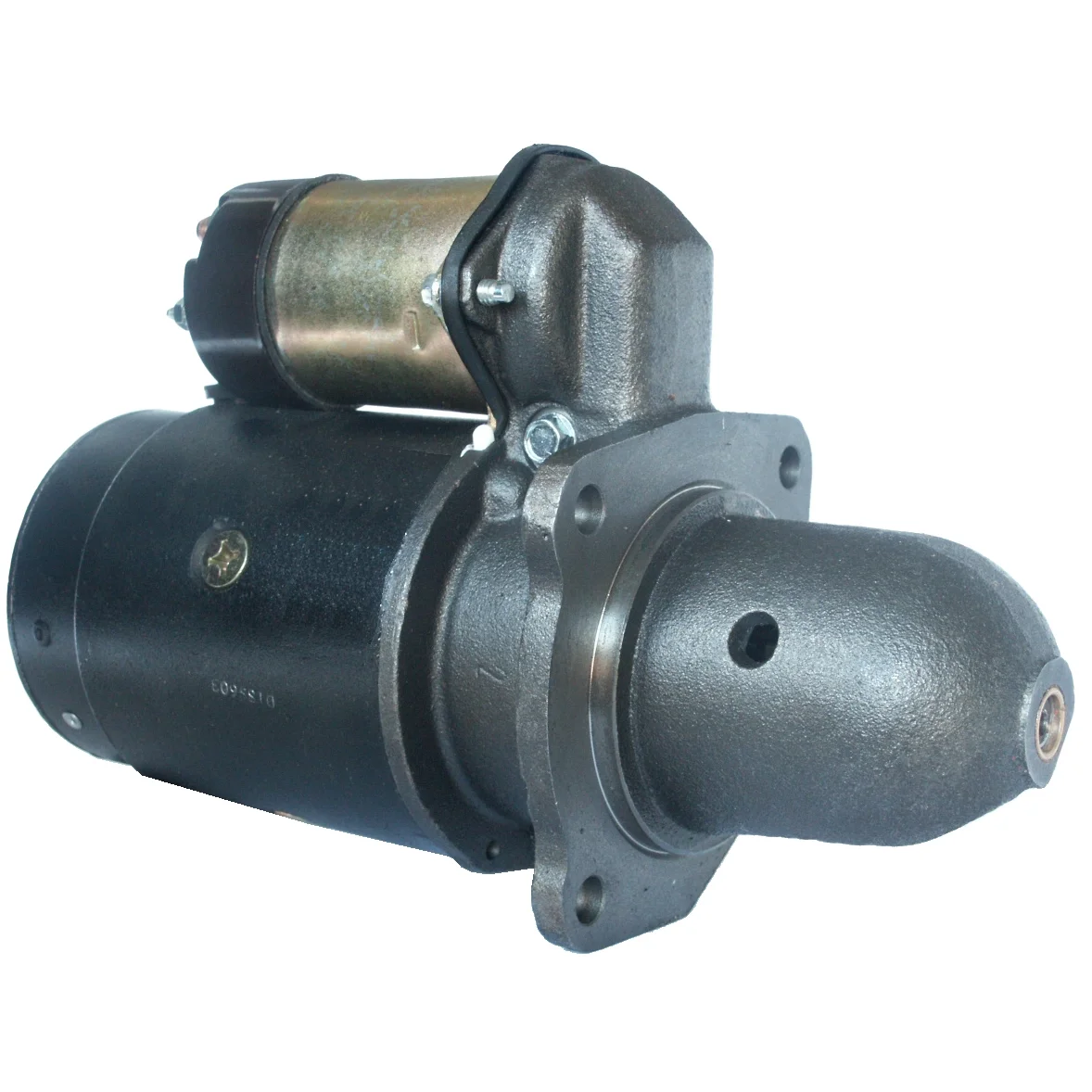

HC-Cargo Starter motor

Technical info:

Voltage: 12, No./teeth: 9, Rotation: CW, Mount. flange: 89.00

Description

Voltage: 12
Mounting flange: 89.00
Drive distance: 44.50
Mounting hole 3 mm: 10.80
Mounting hole 2 mm: 10.80
Mounting hole 1 mm: 10.80
Distance / back: 216.00
Distance / front: 89.50
Number / teeth: 9
B+: M10
Position / 15a: 50
Terminal 15a: M5
Position / 50: 7
Terminal 50: M5
Gear type: DD
Distance 2: 89.00
Distance 3: 89.00
Distance mm: 127.00
Rotation: CW
Total length mm: 306.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: 10MT.
Number / mounting holes: 3 (0)

Files

  • OEM
    F032110469, us833, 1107203, 1108421, 1109093, 1998269, 1998270, 1998281, 6599152, 6658835, 6658841, 6671014, 10455304, 10455340, 10455355

  • Normalised article numbler
    bso7197r, bsx1440016, cst60119, drz5123, f032110469, lrs01173, s1189s, str20021, us833, 8ea730311001, 4167, 4254, 4374, 6148, 21921a, 60833, 251173, 1107203, 1108421, 1109093, 1998269, 1998270, 1998281, 6599152, 6658835, 6658841, 6671014, 10455304, 10455340, 10455355, 91014247, 692002092
  • Description
    Voltage: 12
    Mounting flange: 89.00
    Drive distance: 44.50
    Mounting hole 3 mm: 10.80
    Mounting hole 2 mm: 10.80
    Mounting hole 1 mm: 10.80
    Distance / back: 216.00
    Distance / front: 89.50
    Number / teeth: 9
    B+: M10
    Position / 15a: 50
    Terminal 15a: M5
    Position / 50: 7
    Terminal 50: M5
    Gear type: DD
    Distance 2: 89.00
    Distance 3: 89.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 306.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: 10MT.
    Number / mounting holes: 3 (0)
