Article no.: F032110506

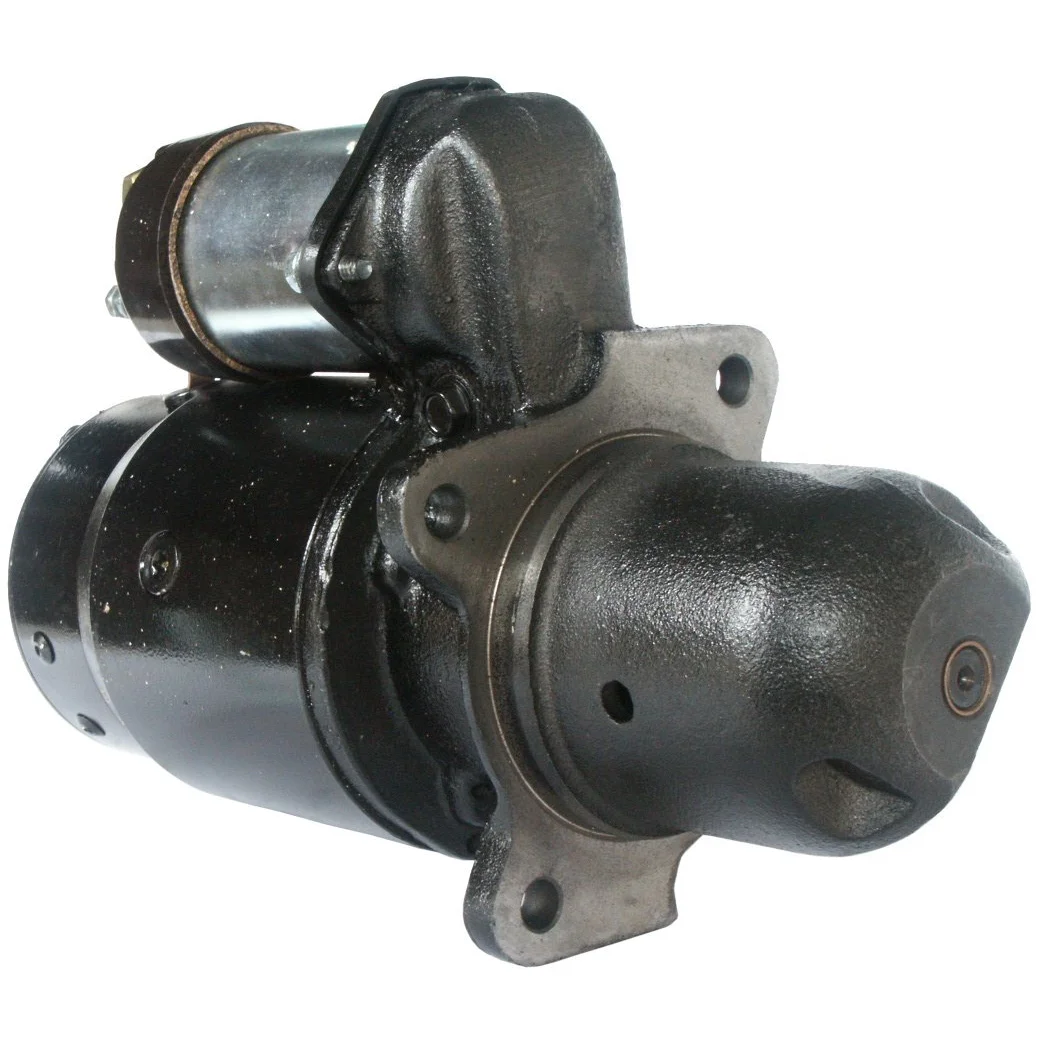

HC-Cargo Starter motor

Technical info:

Voltage: 12, No./teeth: 9, Rotation: CW, Mount. flange: 89.00

Description

Voltage: 12
Mounting flange: 89.00
Drive distance: 47.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 191.00
Distance / front: 89.50
Number / teeth: 9
B+: M10
Position / 15a: 15
Terminal 15a: M4
Position / 50: 40
Terminal 50: M4
Gear type: DD
Distance 2: 89.50
Distance 3: 89.50
Distance millimeter: 127.00
Rotation: CW
Total length millimeter: 305.00
Clutch type: Wet
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 10MT.
Number / mounting holes: 3 (0)

Files

  • OEM
    F032110506, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271

  • Normalised article numbler
    bsx1440017, drz5129, f032110506, lrs01122, str80027, 8ea730317001, 4337, 4337n, 4337r, 4380, 4383, 60839, 251056, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271, 540014093, 692114092
  • Description
    Voltage: 12
    Mounting flange: 89.00
    Drive distance: 47.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 191.00
    Distance / front: 89.50
    Number / teeth: 9
    B+: M10
    Position / 15a: 15
    Terminal 15a: M4
    Position / 50: 40
    Terminal 50: M4
    Gear type: DD
    Distance 2: 89.50
    Distance 3: 89.50
    Distance millimeter: 127.00
    Rotation: CW
    Total length millimeter: 305.00
    Clutch type: Wet
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 10MT.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110506, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271

    • Normalised article numbler
      bsx1440017, drz5129, f032110506, lrs01122, str80027, 8ea730317001, 4337, 4337n, 4337r, 4380, 4383, 60839, 251056, 1107194, 1107204, 1107205, 1107287, 1107295, 1108422, 1108423, 1109095, 1998271, 540014093, 692114092
