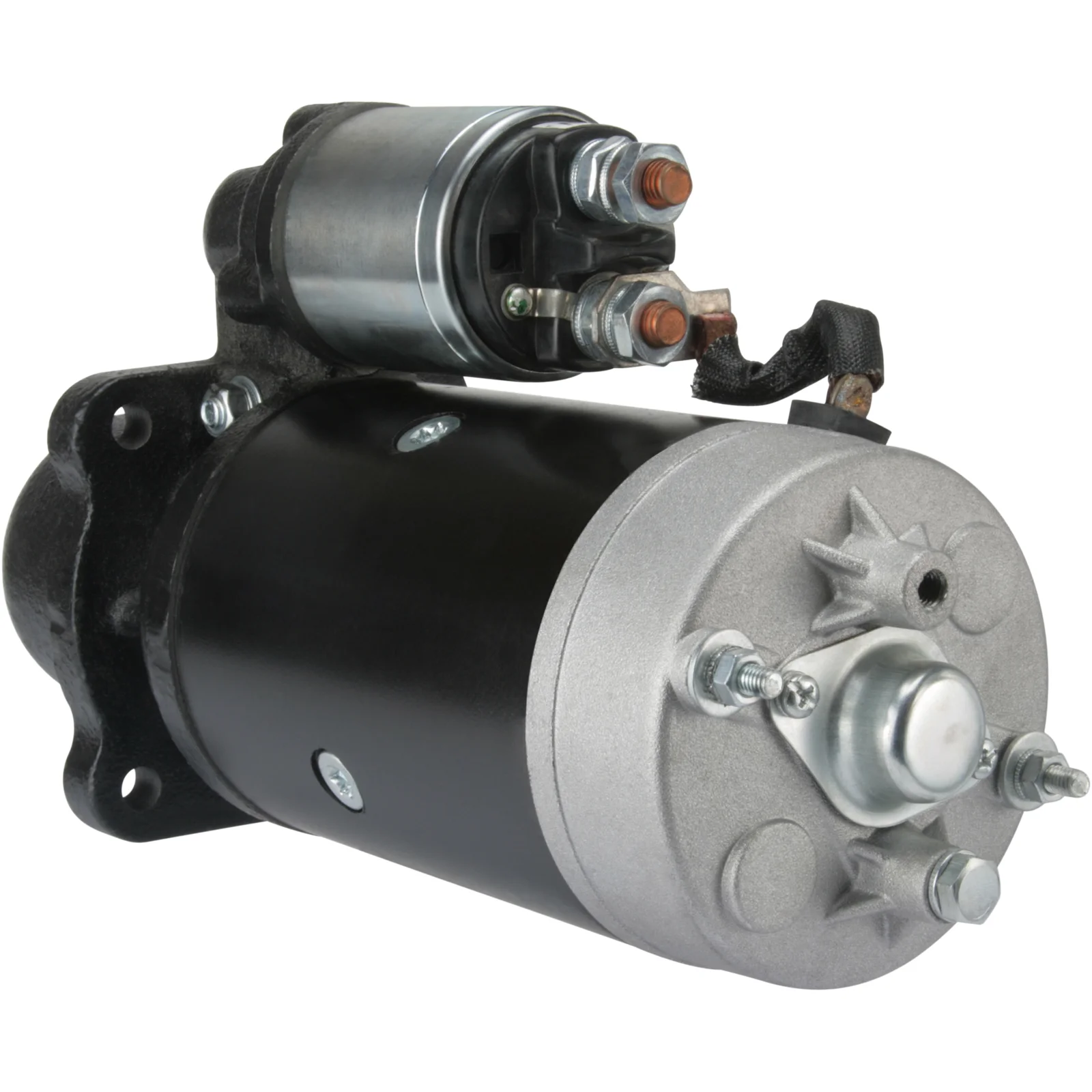

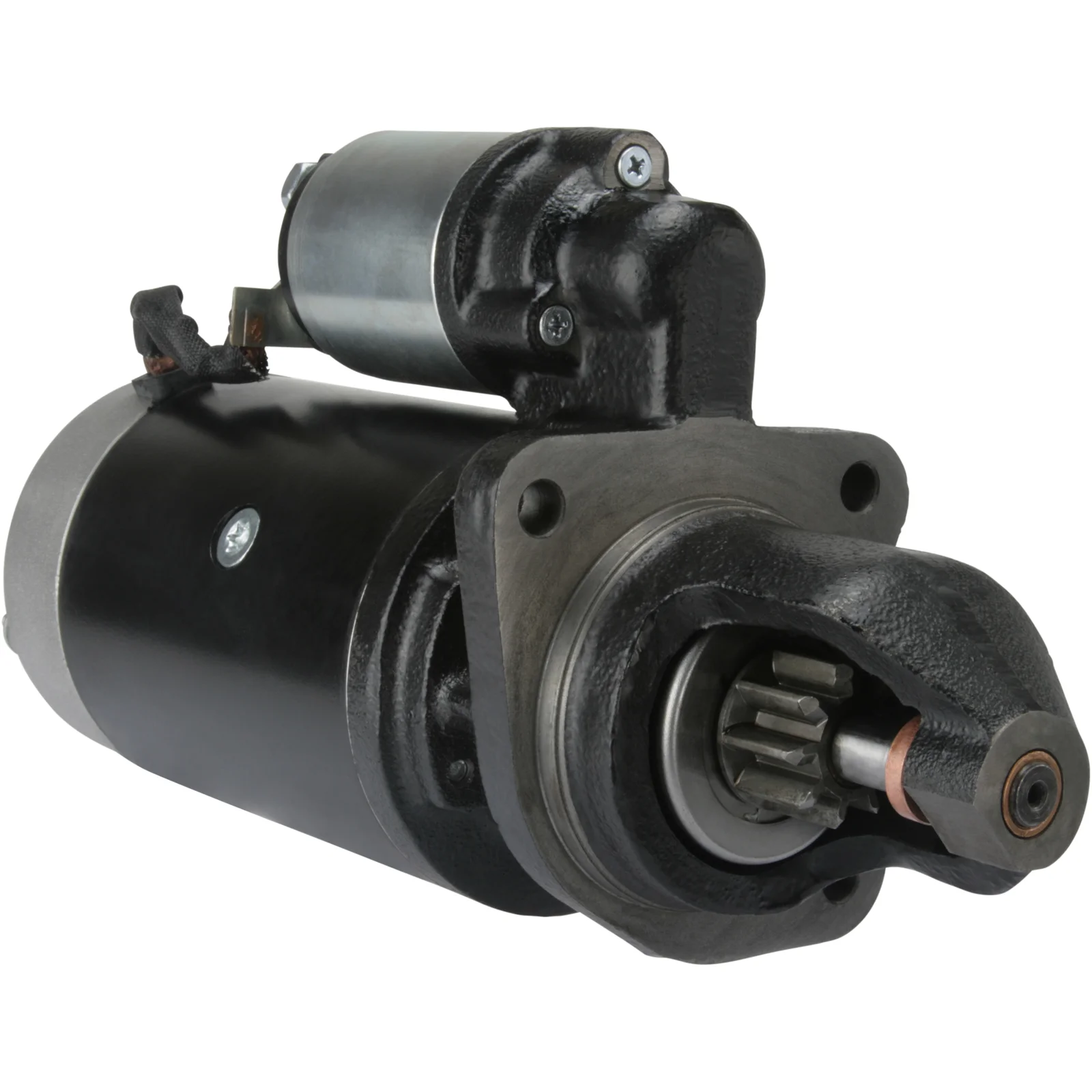

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110519

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 233.00
Dist./front: 96.00
No./teeth: 9
B+: M10
Position/50: 45
Terminal 50: M4-6.30
Gear type: DD
Dist. 2: 127.00
Dist. 3: 90.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 340.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Files

  • OEM
    azj3299, F032110519, mt68b, mt68ba, R23.27, 11.130.862, 22626, 0001359071, 0001367030, 2022518, 4713805, 4737758, 4755112, 8962687, 9142744, 012270774, 12270774, 19024229, 63216802, 63216833, 63217116, 88205018, 296190900, 296191500, 41200090001, 41200090004

  • Normalised article numbler
    azj3299, cst10190, cst10267, cst10306, cst30176, drs1220, f032110519, is0862, lrs00848, ms269, ms280, ms366, msn220, mt68b, mt68ba, r2327, s0673s, s0737s, s9054, str52030, 8043, 18237, 18462, 22626, 33347, 33447, 220237, 220237a, 251070, 254089, 0001359071, 0001367030, 2022518, 4713805, 4737758, 4755112, 8962687, 9142744, 11011250, 11130862, 012270774, 12270774, 19024229, 63216802, 063216833, 63216833, 63217116, 88205018, 296190900, 296191500, 318010092, 338012092, 500563093, 618001092, 0986001251, 0986011230, 0986011231, 41200090001, 41200090004, 943252232010
  • Description
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 233.00
    Dist./front: 96.00
    No./teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: M4-6.30
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 90.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 340.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3299, F032110519, mt68b, mt68ba, R23.27, 11.130.862, 22626, 0001359071, 0001367030, 2022518, 4713805, 4737758, 4755112, 8962687, 9142744, 012270774, 12270774, 19024229, 63216802, 63216833, 63217116, 88205018, 296190900, 296191500, 41200090001, 41200090004

    • Normalised article numbler
      azj3299, cst10190, cst10267, cst10306, cst30176, drs1220, f032110519, is0862, lrs00848, ms269, ms280, ms366, msn220, mt68b, mt68ba, r2327, s0673s, s0737s, s9054, str52030, 8043, 18237, 18462, 22626, 33347, 33447, 220237, 220237a, 251070, 254089, 0001359071, 0001367030, 2022518, 4713805, 4737758, 4755112, 8962687, 9142744, 11011250, 11130862, 012270774, 12270774, 19024229, 63216802, 063216833, 63216833, 63217116, 88205018, 296190900, 296191500, 318010092, 338012092, 500563093, 618001092, 0986001251, 0986011230, 0986011231, 41200090001, 41200090004, 943252232010
