Article no.: F032110529

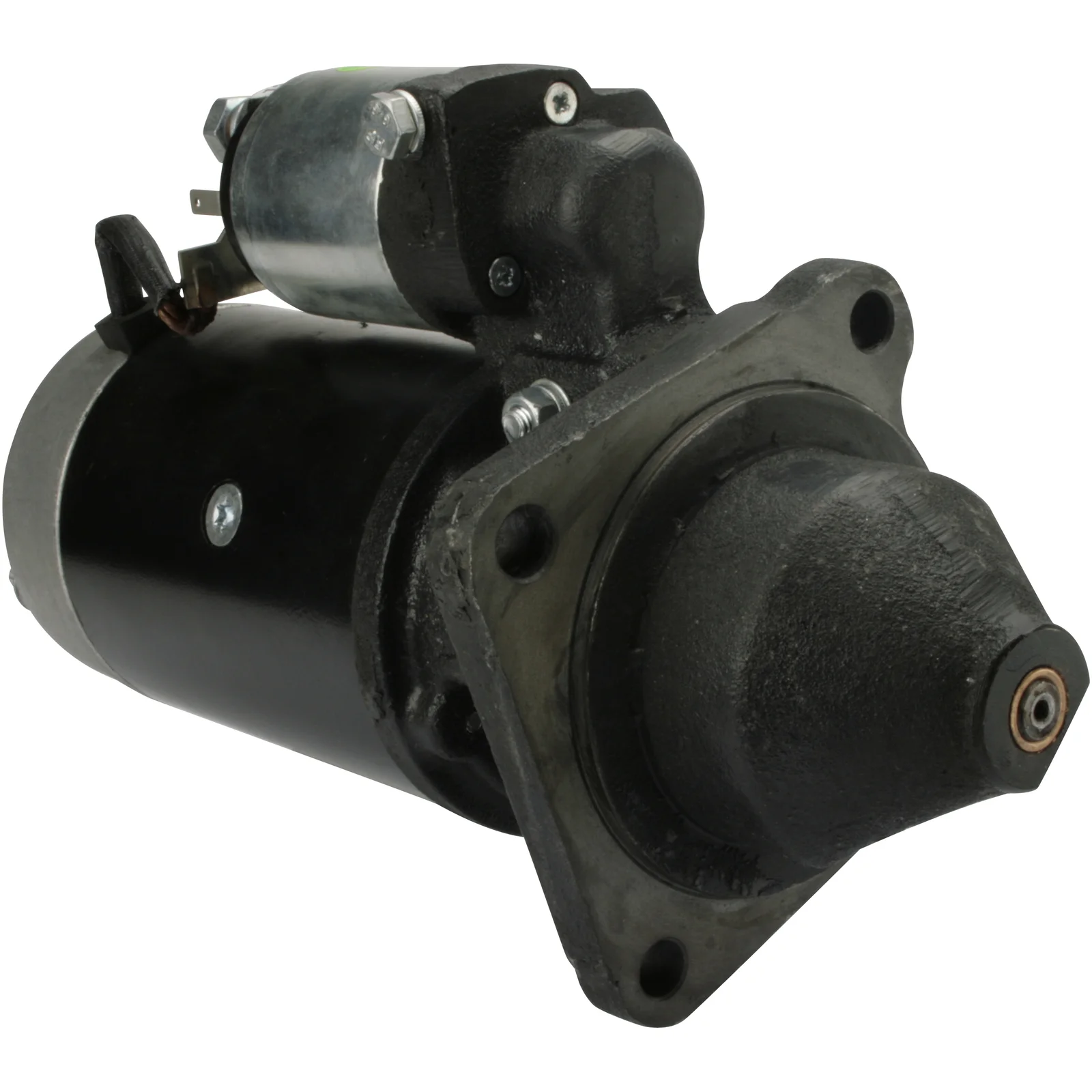

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Description

Fiat/Iveco Tractor Starter. 12V 12V - 3.0kW, 9k Alternative: 91-255-1898 gear ratio: Yourex product order 91-165-1122

Voltage: 12
kW: 3.0
Mounting flange: 110.00
Drive distance: 27.00
Mounting hole 3 mm: 12.00
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance/length: 255.00
Distance/front: 73.00
Number/of teeth: 9
B+: M10
Position/50: 45
Terminal 50: 6.30
Gear type: DD
Distance 2: 103.00
Distance 3: 103.00
Distance mm: 146.00
Rotation: CW
Total length mm: 340.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Gear reduction: HC-CARGO 113182
Number/mounting holes: 3 (0)

Files

  • OEM
    azj3110, azj3535, azj3582, cs240, dm2138, F032110529, LRS 847, m125-3/12, m125m3-z9(3/12), M125M3Z9, MT 68A, MT 68AA, MT 68AC, MT 68AD, MT38TB, MT62A, mt62ba, MT68A, mt68a, mt68aa, mt68ab, mt68ac, mt68ad, mt68ma, mt68mb, mt71ac, r11.07, r11w, 0001 359 102, 0001 367 028, 11.130.403, 0403, 0986 011 220, 0986 011 221, 1986S10072, 11370, 417213, 436073, 0001359021, 0001359102, 0001367023, 0001367028, 0001367082, 2022506, 2022507, 2998200, 4169093, 4172113, 4692478, 4699705, 4702248, 4703751, 4737755, 4755109, 4763996, 4807375, 4832942, 9144744, 9972215, 19024230, 19024272, 30380301, 035530712A, 35530712A, 63213815, 63216800, 63216825, 63216826, 63216827, 63216831, 63216874, 63224600, 87376493, 88205006, 99449113, 500333271, 500338952, 0000504059251, 5003332711, 063216827010, 063216831000, 063216831010, 063216831020, 063296847000

  • Normalised article numbler
    azj3110, azj3535, azj3582, bso7110, cs240, cst10375, cst30101, cst30172, dm2138, drs0023, drs1220, drs2670, f032110529, f042002158, f042s02158, lrs00847, lrs00850, lrs847, m125312, m125m3z9, m125m3z9312, ms207, ms224, msn219, mt38tb, mt62a, mt62ba, mt68a, mt68aa, mt68ab, mt68ac, mt68ad, mt68ma, mt68mb, mt71ac, r1107, r11w, s0116, s4026, s9055, s9198letrika, sr914x, str22062, str22092, str2302, 8ea012526081, 8ea726032001, 0403, 1620, 1986s10072, 6850xx092, 8656, 10240, 11370, 16659, 17111, 17325, 18029, 18029n, 25226, 25339, 33342, 33422, 33444, 33542, 103434, 220077, 220077a, 250226, 250339, 254171, 417213, 436073, 436074, 509101, 509303, 0001359021, 0001359102, 0001367023, 0001367028, 0001367082, 2022506, 2022507, 2998200, 4169093, 4172113, 4692478, 4699705, 4702248, 4703751, 4737755, 4755109, 4763996, 4807375, 4832942, 5091011, 8811220, 8812670, 9144744, 9972215, 11011220, 11130403, 19024230, 19024272, 20500847, 30380301, 035530712a, 35530712a, 63213815, 63216800, 63216825, 63216826, 63216827, 063216831, 63216831, 63216874, 063217126, 63224600, 87376493, 88205006, 99449113, 318038092, 500333271, 500338952, 0000504059251, 618003092, 943216831, 943216861, 0986011220, 0986011221, 0986011227, 0986012670, 5003332711, 063216827010, 063216831000, 063216831010, 063216831020, 063296847000, 063523620390
  • Description
    Fiat/Iveco Tractor Starter. 12V 12V - 3.0kW, 9k Alternative: 91-255-1898 gear ratio: Yourex product order 91-165-1122

    Voltage: 12
    kW: 3.0
    Mounting flange: 110.00
    Drive distance: 27.00
    Mounting hole 3 mm: 12.00
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance/length: 255.00
    Distance/front: 73.00
    Number/of teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD
    Distance 2: 103.00
    Distance 3: 103.00
    Distance mm: 146.00
    Rotation: CW
    Total length mm: 340.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Gear reduction: HC-CARGO 113182
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3110, azj3535, azj3582, cs240, dm2138, F032110529, LRS 847, m125-3/12, m125m3-z9(3/12), M125M3Z9, MT 68A, MT 68AA, MT 68AC, MT 68AD, MT38TB, MT62A, mt62ba, MT68A, mt68a, mt68aa, mt68ab, mt68ac, mt68ad, mt68ma, mt68mb, mt71ac, r11.07, r11w, 0001 359 102, 0001 367 028, 11.130.403, 0403, 0986 011 220, 0986 011 221, 1986S10072, 11370, 417213, 436073, 0001359021, 0001359102, 0001367023, 0001367028, 0001367082, 2022506, 2022507, 2998200, 4169093, 4172113, 4692478, 4699705, 4702248, 4703751, 4737755, 4755109, 4763996, 4807375, 4832942, 9144744, 9972215, 19024230, 19024272, 30380301, 035530712A, 35530712A, 63213815, 63216800, 63216825, 63216826, 63216827, 63216831, 63216874, 63224600, 87376493, 88205006, 99449113, 500333271, 500338952, 0000504059251, 5003332711, 063216827010, 063216831000, 063216831010, 063216831020, 063296847000

    • Normalised article numbler
      azj3110, azj3535, azj3582, bso7110, cs240, cst10375, cst30101, cst30172, dm2138, drs0023, drs1220, drs2670, f032110529, f042002158, f042s02158, lrs00847, lrs00850, lrs847, m125312, m125m3z9, m125m3z9312, ms207, ms224, msn219, mt38tb, mt62a, mt62ba, mt68a, mt68aa, mt68ab, mt68ac, mt68ad, mt68ma, mt68mb, mt71ac, r1107, r11w, s0116, s4026, s9055, s9198letrika, sr914x, str22062, str22092, str2302, 8ea012526081, 8ea726032001, 0403, 1620, 1986s10072, 6850xx092, 8656, 10240, 11370, 16659, 17111, 17325, 18029, 18029n, 25226, 25339, 33342, 33422, 33444, 33542, 103434, 220077, 220077a, 250226, 250339, 254171, 417213, 436073, 436074, 509101, 509303, 0001359021, 0001359102, 0001367023, 0001367028, 0001367082, 2022506, 2022507, 2998200, 4169093, 4172113, 4692478, 4699705, 4702248, 4703751, 4737755, 4755109, 4763996, 4807375, 4832942, 5091011, 8811220, 8812670, 9144744, 9972215, 11011220, 11130403, 19024230, 19024272, 20500847, 30380301, 035530712a, 35530712a, 63213815, 63216800, 63216825, 63216826, 63216827, 063216831, 63216831, 63216874, 063217126, 63224600, 87376493, 88205006, 99449113, 318038092, 500333271, 500338952, 0000504059251, 618003092, 943216831, 943216861, 0986011220, 0986011221, 0986011227, 0986012670, 5003332711, 063216827010, 063216831000, 063216831010, 063216831020, 063296847000, 063523620390
