Article no.: F032110538

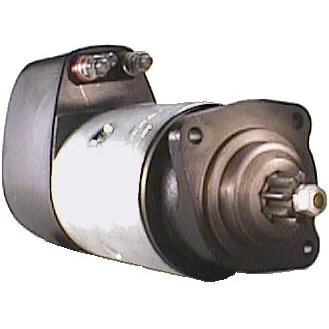

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.6, No./teeth: 9, Rotation: CW

Description

Start 12V-3.6kW fits Penta 12V - 3.6kW, 9k, Insulated 24V-variant is 91-605-6028 for Yourex product order 91-605-8009

Voltage: 12
kW: 3.6
Insulated return: Yes
Mounting flange: 89.00
Drive distance: 47.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 318.50
Distance/front: 62.00
Number/teeth: 9
B+: M10
Position/B+: 60
Position/50: 60
Terminal 50: M6
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Position/b-: 60
B-: M10
Total length mm: 384.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    bng4/12cr238, F032110538, 0001 401 023, 0001 401 060, 0001 413 004, 0001 418 009, 409, 22804, 233991, 240501, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005

  • Normalised article numbler
    bng412cr238, cst10175, f032110538, lrs01204, ms570, ms704, s0837s, s0856s, 8ea737247001, 409, 4455, 18221, 22804, 33655, 33737, 101030, 220244, 220244a, 233991, 240501, 251270, 254022, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005, 638021092, 810101093
  • Description
    Start 12V-3.6kW fits Penta 12V - 3.6kW, 9k, Insulated 24V-variant is 91-605-6028 for Yourex product order 91-605-8009

    Voltage: 12
    kW: 3.6
    Insulated return: Yes
    Mounting flange: 89.00
    Drive distance: 47.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 318.50
    Distance/front: 62.00
    Number/teeth: 9
    B+: M10
    Position/B+: 60
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Position/b-: 60
    B-: M10
    Total length mm: 384.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      bng4/12cr238, F032110538, 0001 401 023, 0001 401 060, 0001 413 004, 0001 418 009, 409, 22804, 233991, 240501, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005

    • Normalised article numbler
      bng412cr238, cst10175, f032110538, lrs01204, ms570, ms704, s0837s, s0856s, 8ea737247001, 409, 4455, 18221, 22804, 33655, 33737, 101030, 220244, 220244a, 233991, 240501, 251270, 254022, 837924, 842775, 843511, 847306, 860542, 881681, 0001401023, 0001401060, 0001413004, 0001418009, 19024005, 638021092, 810101093
