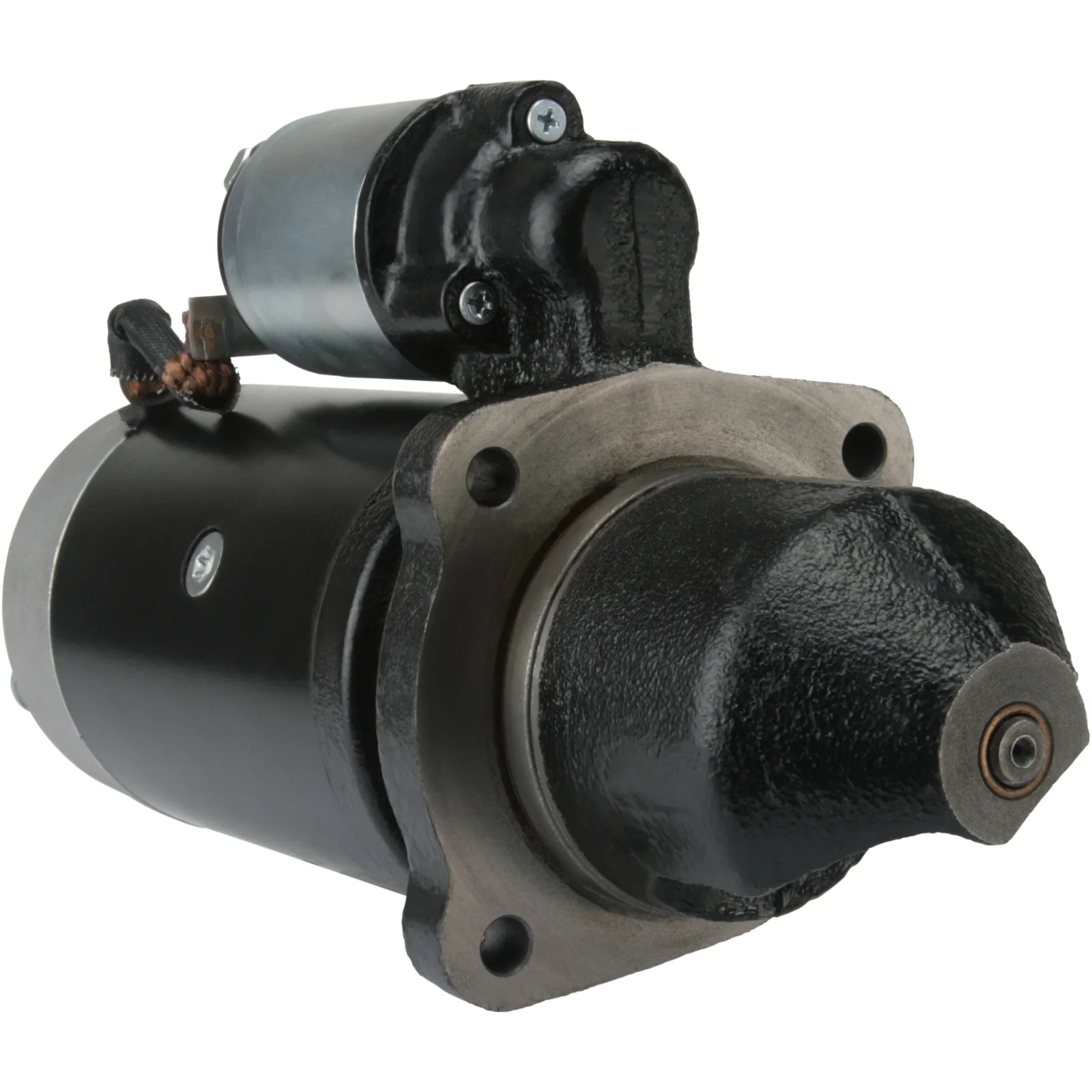

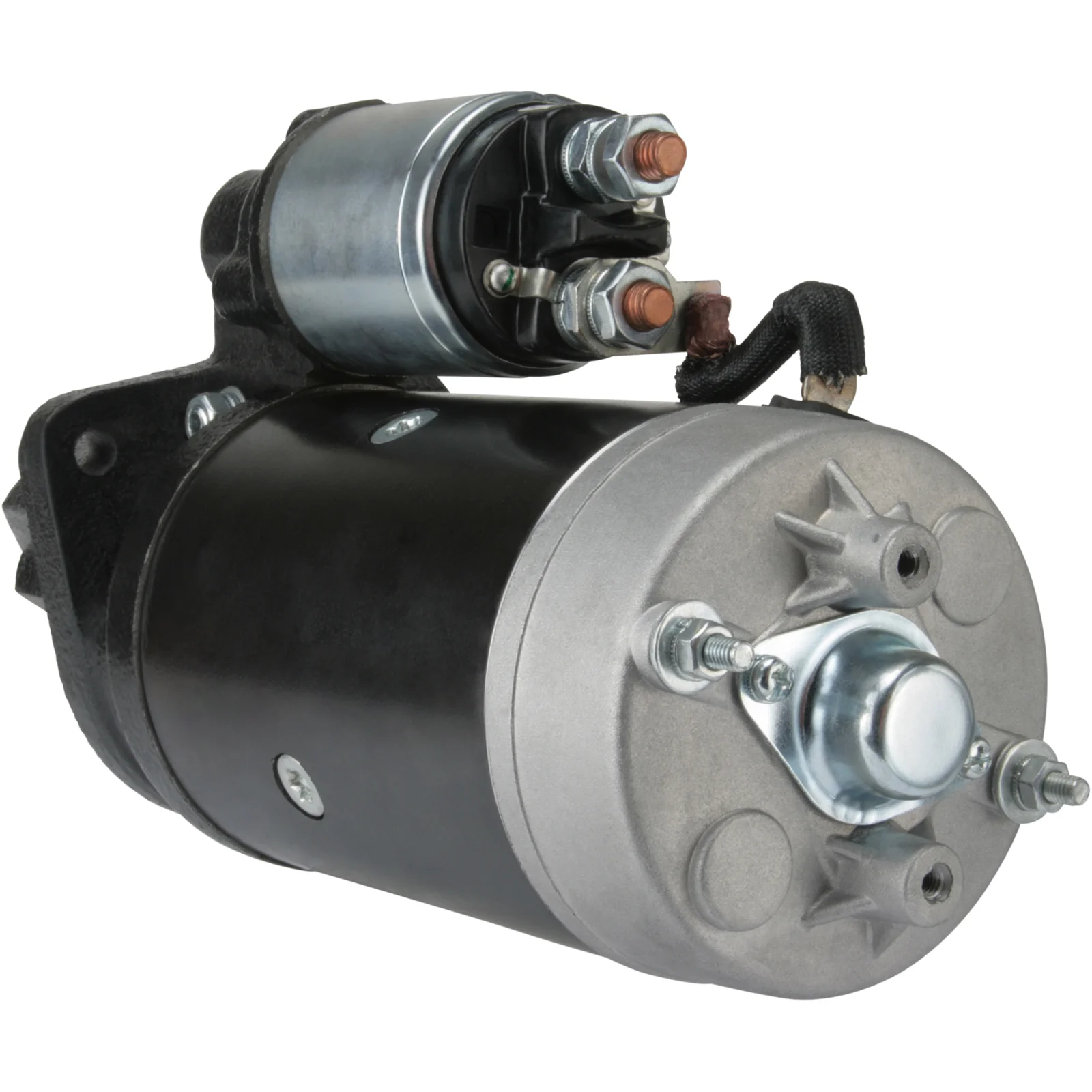

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110551

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 47.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance/ rear: 229.00
Distance/ front: 93.50
Number/ teeth: 11
B+: M10
Position/50: 45
Terminal 50: M4-6.30
Gear type: DD
Distance 2: 89.50
Distance 3: 89.50
Distance mm: 126.00
Rotation: CW
Total length mm: 326.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/ mounting holes: 3 (0)

Files

  • OEM
    AZJ3285, F032110551, r11.02, r11b, 11.130.821, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 19024815, 80350911, 80357918, 296191100, 409090001, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742

  • Normalised article numbler
    azj3285, cst10356, cst48108, f032110551, is0821, lrs01035, lrs01134, lrs01174, ms309, r1102, r11b, s0796s, str50161, 8ea732654001, 4133, 10799, 33875, 220245, 220245a, 250210, 251088, 251176, 509104, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 11130821, 19024815, 80350911, 80357918, 296191100, 409090001, 600014112, 686011112, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 47.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance/ rear: 229.00
    Distance/ front: 93.50
    Number/ teeth: 11
    B+: M10
    Position/50: 45
    Terminal 50: M4-6.30
    Gear type: DD
    Distance 2: 89.50
    Distance 3: 89.50
    Distance mm: 126.00
    Rotation: CW
    Total length mm: 326.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/ mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZJ3285, F032110551, r11.02, r11b, 11.130.821, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 19024815, 80350911, 80357918, 296191100, 409090001, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742

    • Normalised article numbler
      azj3285, cst10356, cst48108, f032110551, is0821, lrs01035, lrs01134, lrs01174, ms309, r1102, r11b, s0796s, str50161, 8ea732654001, 4133, 10799, 33875, 220245, 220245a, 250210, 251088, 251176, 509104, 0001359001, 0001359048, 0001359053, 0001359056, 0001359099, 0001367009, 4090901, 9144742, 11130821, 19024815, 80350911, 80357918, 296191100, 409090001, 600014112, 686011112, 7701013039, 41000090002, 41000090003, 443115144540, 443115144640, 443115144742
