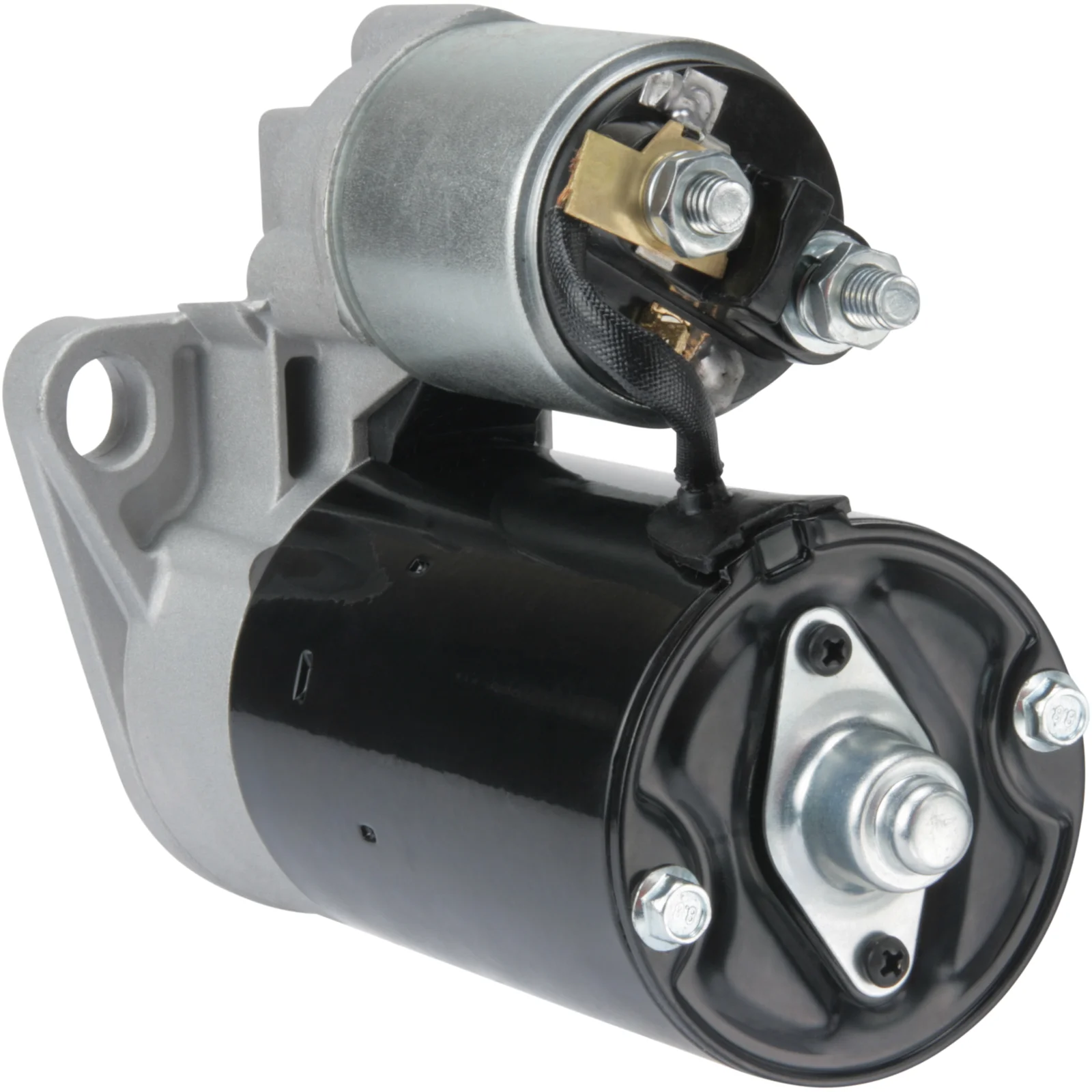

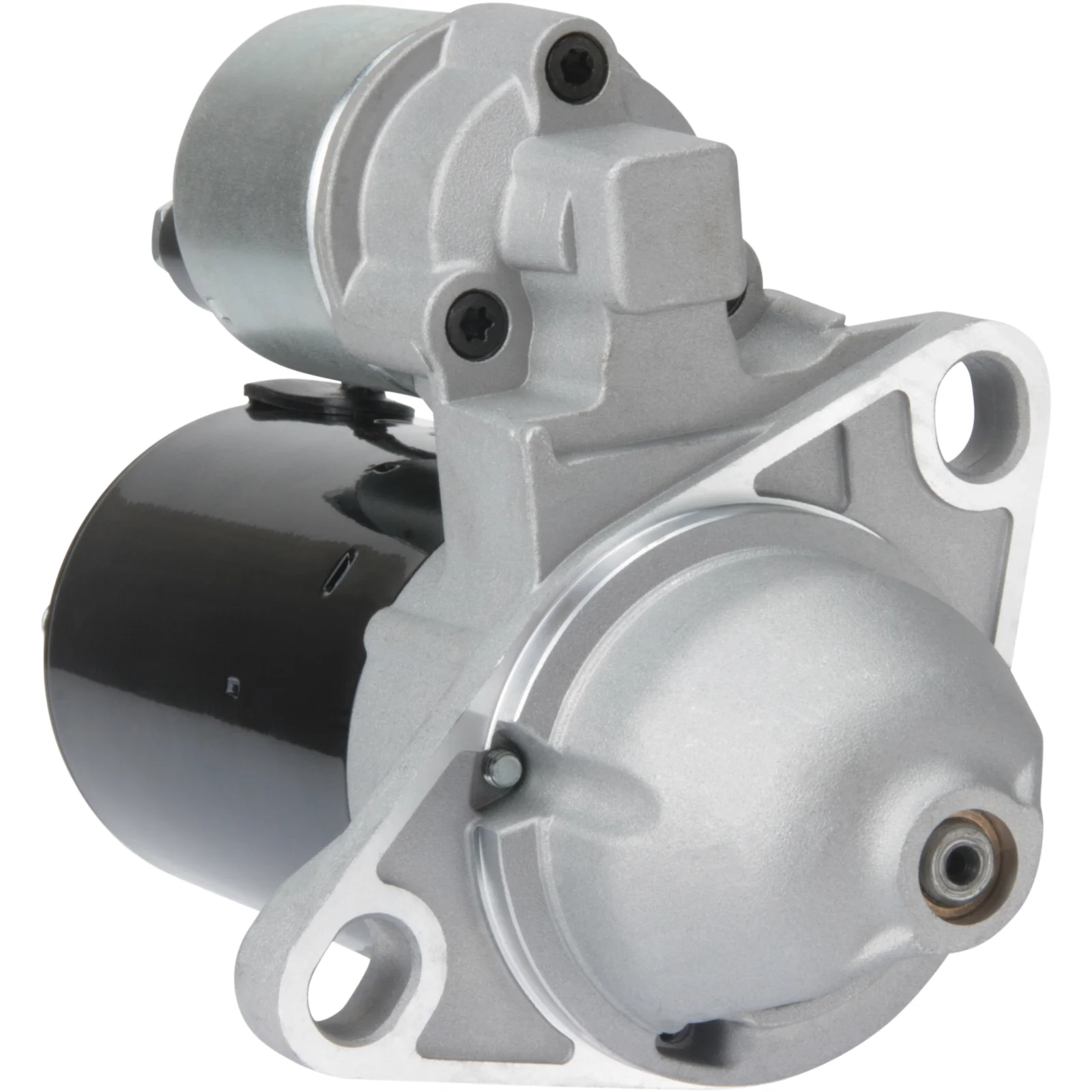

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110552

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 74.00
Drive distance: 20.00
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 11.50
Distance / back: 143.50
Distance / front: 56.00
Number / teeth: 9
B+: M8
Position / 50: 35
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 109.50
Rotation: CW
Total length in millimeters: 211.00
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032110552, js737, s114-381, U5MK8259, 185-2166, 714-36700, 1986S00659, 0001107078, 0001108181, 02630500, 3582514, 18508661, 18508662, 185086321, 185086610

  • Normalised article numbler
    bso7305, cst10263, drs0582, drs3703, f032110552, js737, lrs01321, lrs02328, pbns3015, s0716s, s114381, s2081s, s8328, sj00208r, str23007, u5mk8259, 8ea015642111, 8ea730278001, 1986s00659, 4260, 8746, 17300, 17300n, 18948n, 20737, 22007hi, 31707, 103868, 104623, 220090, 220090a, 252094, 254000, 254084, 254198, 0001107078, 0001108181, 1852166, 02630500, 3582514, 8213145, 11022480, 18508661, 18508662, 20513015, 71436700, 91251077, 185086321, 185086610, 668003092, 0986022480, 063521070780
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 74.00
    Drive distance: 20.00
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 11.50
    Distance / back: 143.50
    Distance / front: 56.00
    Number / teeth: 9
    B+: M8
    Position / 50: 35
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 109.50
    Rotation: CW
    Total length in millimeters: 211.00
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110552, js737, s114-381, U5MK8259, 185-2166, 714-36700, 1986S00659, 0001107078, 0001108181, 02630500, 3582514, 18508661, 18508662, 185086321, 185086610

    • Normalised article numbler
      bso7305, cst10263, drs0582, drs3703, f032110552, js737, lrs01321, lrs02328, pbns3015, s0716s, s114381, s2081s, s8328, sj00208r, str23007, u5mk8259, 8ea015642111, 8ea730278001, 1986s00659, 4260, 8746, 17300, 17300n, 18948n, 20737, 22007hi, 31707, 103868, 104623, 220090, 220090a, 252094, 254000, 254084, 254198, 0001107078, 0001108181, 1852166, 02630500, 3582514, 8213145, 11022480, 18508661, 18508662, 20513015, 71436700, 91251077, 185086321, 185086610, 668003092, 0986022480, 063521070780
