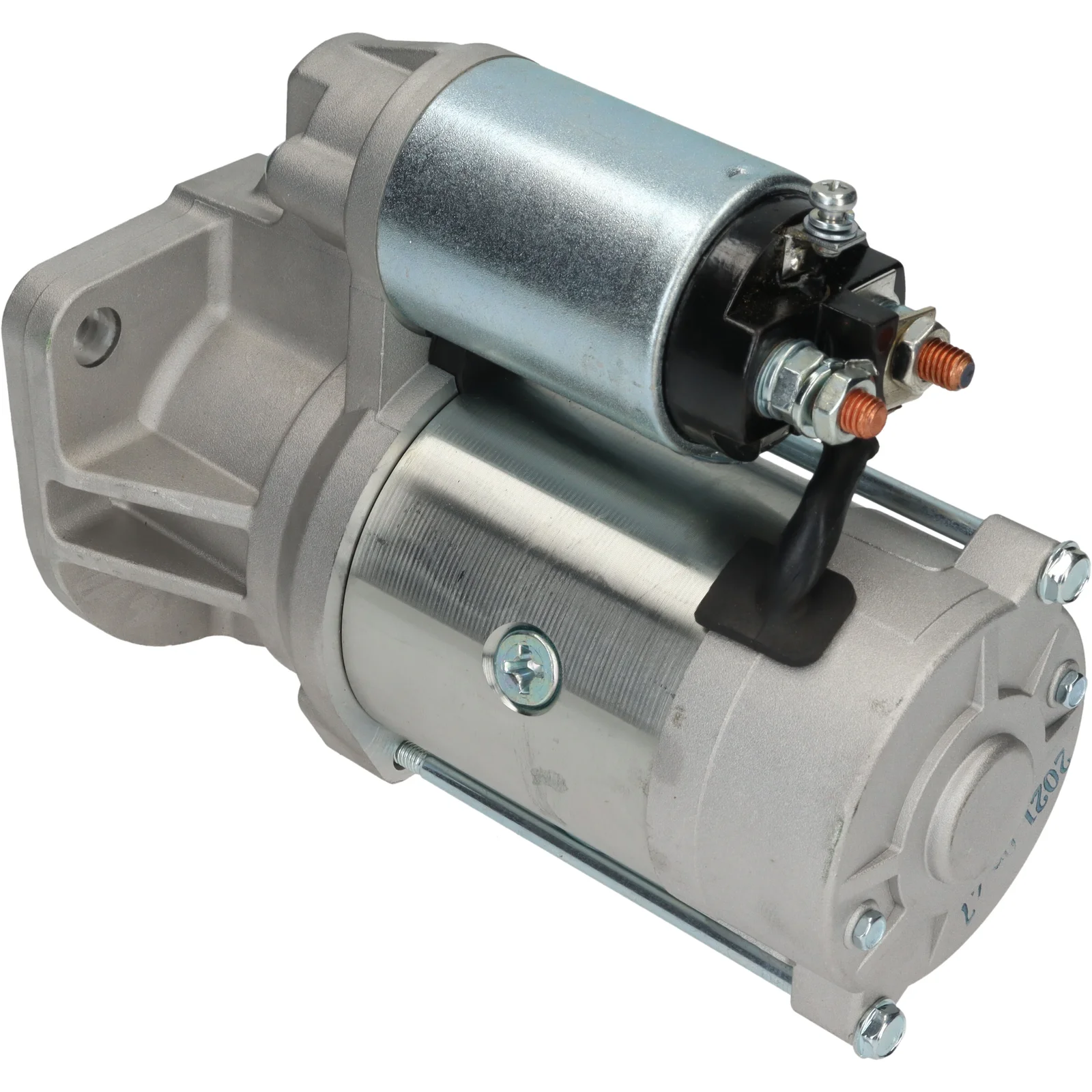

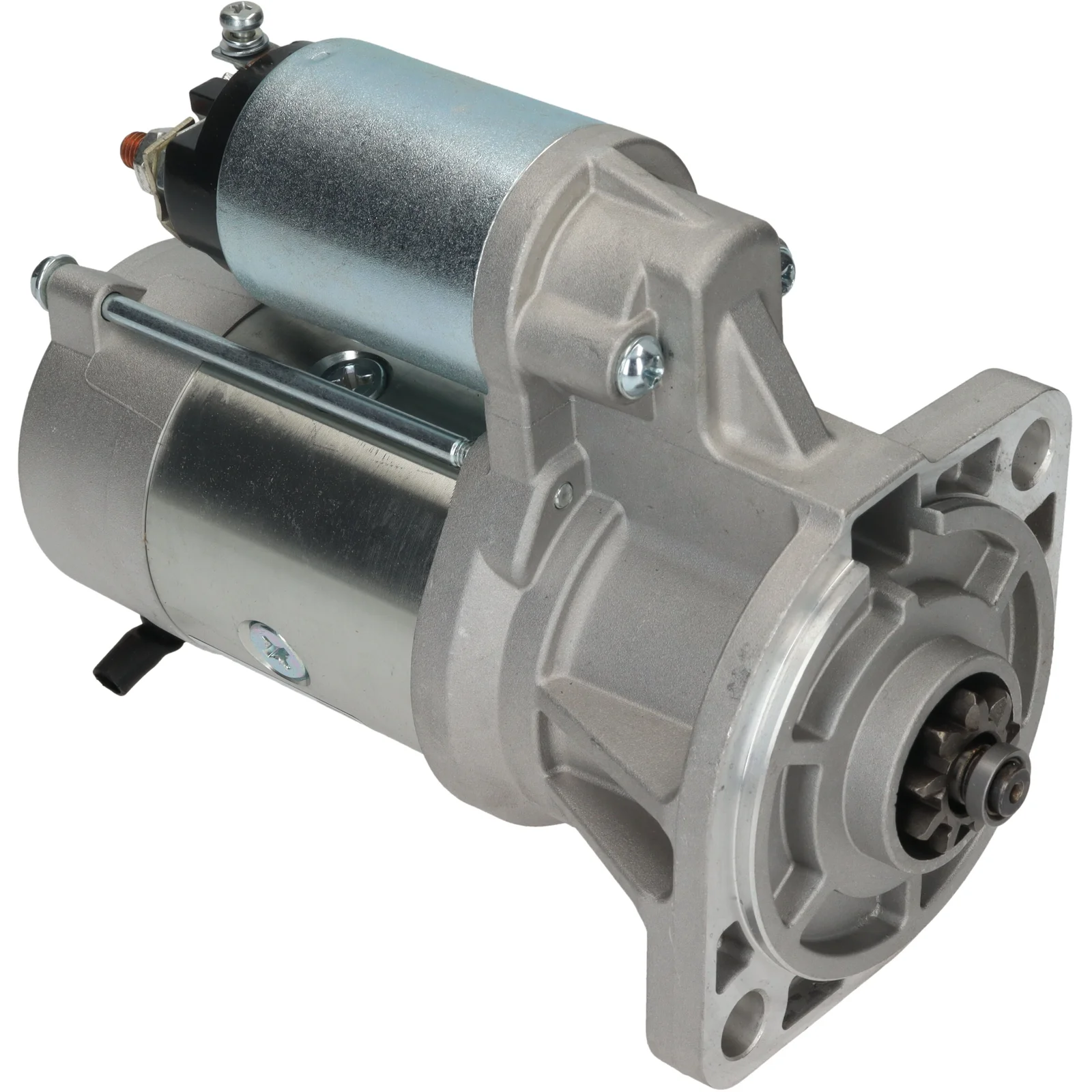

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110573

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 95.00
Drive distance: 22.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance/backup: 202.00
Distance/front: 27.00
Number/teeth: 9
B+: M8
Thread length mm: 21.00
Position/50: 11
Terminal 50: M5
Gear type: GR
Distributor mm: 119.00
Rotation: CW
Total length mm: 234.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (0)

Files

  • OEM
    F032110573, s12-48, s12-58, s13-120a, s13-120b, s13-75, s13-82, s13-82a, s13-82b, 5-81100-099-1, 600-813-1750, 028000-6440, 028000-6441, 128000-2880, 128000-3100, 128000-3101, 228000-9690, 3675152RX, 5811000571, 5811000990, 5811001550, 5811002140, 5811210140, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

  • Normalised article numbler
    aus103, bso7120, cst20180, drs3038, drs4071, f032110573, f042004015, f042s04015, les0322, lrs01078, lrs01115, s1193hi, s1248, s1258, s13120a, s13120b, s1375, s1382, s1382a, s1382b, s81521, shi0068, sj00254r, sj0044r, str23003, str6000, 11593, 16739n, 16739r, 18050, 18050n, 18293, 18298, 20679, 21193hi, 250388, 251010, 254997, 3675152rx, 91251078, 130412092, 130598092, 0280006440, 0280006441, 343001092, 343002092, 643016092, 643024092, 1280002880, 1280003100, 1280003101, 2280009690, 5811000571, 5811000990, 5811000991, 5811001550, 5811002140, 5811210140, 6008131750, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 95.00
    Drive distance: 22.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance/backup: 202.00
    Distance/front: 27.00
    Number/teeth: 9
    B+: M8
    Thread length mm: 21.00
    Position/50: 11
    Terminal 50: M5
    Gear type: GR
    Distributor mm: 119.00
    Rotation: CW
    Total length mm: 234.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110573, s12-48, s12-58, s13-120a, s13-120b, s13-75, s13-82, s13-82a, s13-82b, 5-81100-099-1, 600-813-1750, 028000-6440, 028000-6441, 128000-2880, 128000-3100, 128000-3101, 228000-9690, 3675152RX, 5811000571, 5811000990, 5811001550, 5811002140, 5811210140, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072

    • Normalised article numbler
      aus103, bso7120, cst20180, drs3038, drs4071, f032110573, f042004015, f042s04015, les0322, lrs01078, lrs01115, s1193hi, s1248, s1258, s13120a, s13120b, s1375, s1382, s1382a, s1382b, s81521, shi0068, sj00254r, sj0044r, str23003, str6000, 11593, 16739n, 16739r, 18050, 18050n, 18293, 18298, 20679, 21193hi, 250388, 251010, 254997, 3675152rx, 91251078, 130412092, 130598092, 0280006440, 0280006441, 343001092, 343002092, 643016092, 643024092, 1280002880, 1280003100, 1280003101, 2280009690, 5811000571, 5811000990, 5811000991, 5811001550, 5811002140, 5811210140, 6008131750, 8941364000, 8941364001, 8944532120, 8970489650, 62811000072
