Article no.: F032110602

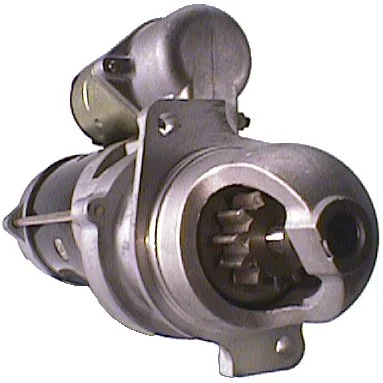

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.8, No./teeth: 12, Rotation: CW

Description

Voltage: 12
kW: 2.8
Mounting flange: 89.00
Drive distance: 46.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 250.00
Distance / front: 88.50
Number / teeth: 12
B+: M10
Position / 50: 50
Terminal 50: M5
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 339.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 22MT
Number / mounting holes: 3 (0)

Files

  • OEM
    0-23000-1840, 0-23000-2160, F032110602, s2820, us844, 1107588, 1108692, 1113273, 1998339, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613

  • Normalised article numbler
    bso7198r, bso7201r, bsx1440014, cst50108, cst50112, cst60104, cst60126, drz5116, drz5133, drz5165, f032110602, f042003089, f042003096, f042s03089, f042s03096, lrs01274, lrs01384, oms123, s1056, s2820, str20002, str7052, str7060, str80037, us844, 8ea730321001, 8ea732683001, 4280, 4384, 4399, 6157, 6571, 6571n, 6571r, 6586, 6586n, 6586r, 33753, 33842, 60824, 60844, 60860, 251170, 251482, 252255, 261002, 508403, 508426, 1107588, 1108692, 1113273, 1998339, 5084261, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613, 20513074, 35259000, 35259670, 91014257, 0230001840, 0230002160, 600033122, 600050122, 683033122, 692016122
  • Description
    Voltage: 12
    kW: 2.8
    Mounting flange: 89.00
    Drive distance: 46.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance / back: 250.00
    Distance / front: 88.50
    Number / teeth: 12
    B+: M10
    Position / 50: 50
    Terminal 50: M5
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 339.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 22MT
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      0-23000-1840, 0-23000-2160, F032110602, s2820, us844, 1107588, 1108692, 1113273, 1998339, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613

    • Normalised article numbler
      bso7198r, bso7201r, bsx1440014, cst50108, cst50112, cst60104, cst60126, drz5116, drz5133, drz5165, f032110602, f042003089, f042003096, f042s03089, f042s03096, lrs01274, lrs01384, oms123, s1056, s2820, str20002, str7052, str7060, str80037, us844, 8ea730321001, 8ea732683001, 4280, 4384, 4399, 6157, 6571, 6571n, 6571r, 6586, 6586n, 6586r, 33753, 33842, 60824, 60844, 60860, 251170, 251482, 252255, 261002, 508403, 508426, 1107588, 1108692, 1113273, 1998339, 5084261, 6630182, 6649676, 6660797, 6714082, 10465058, 10465348, 10465420, 10479613, 20513074, 35259000, 35259670, 91014257, 0230001840, 0230002160, 600033122, 600050122, 683033122, 692016122
