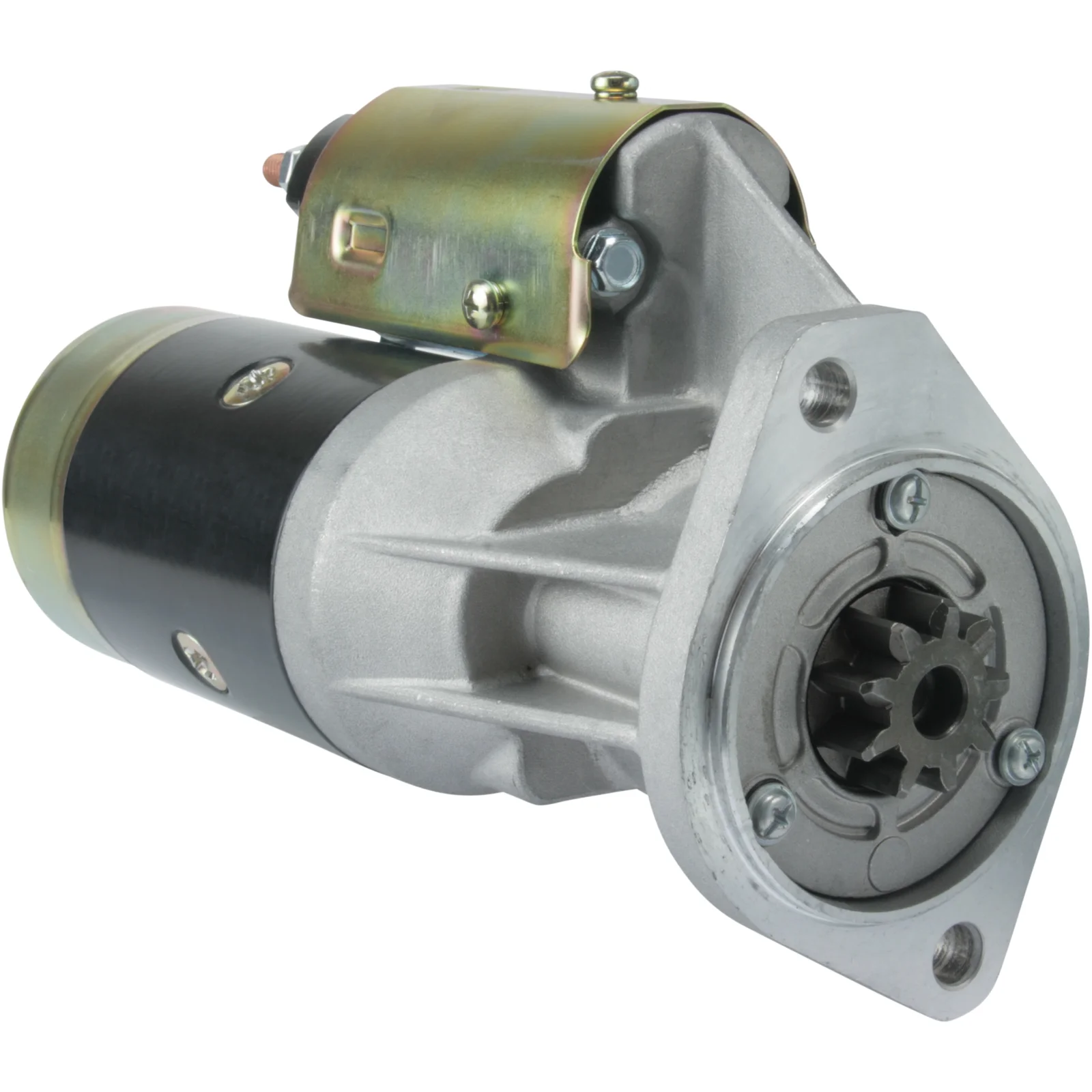

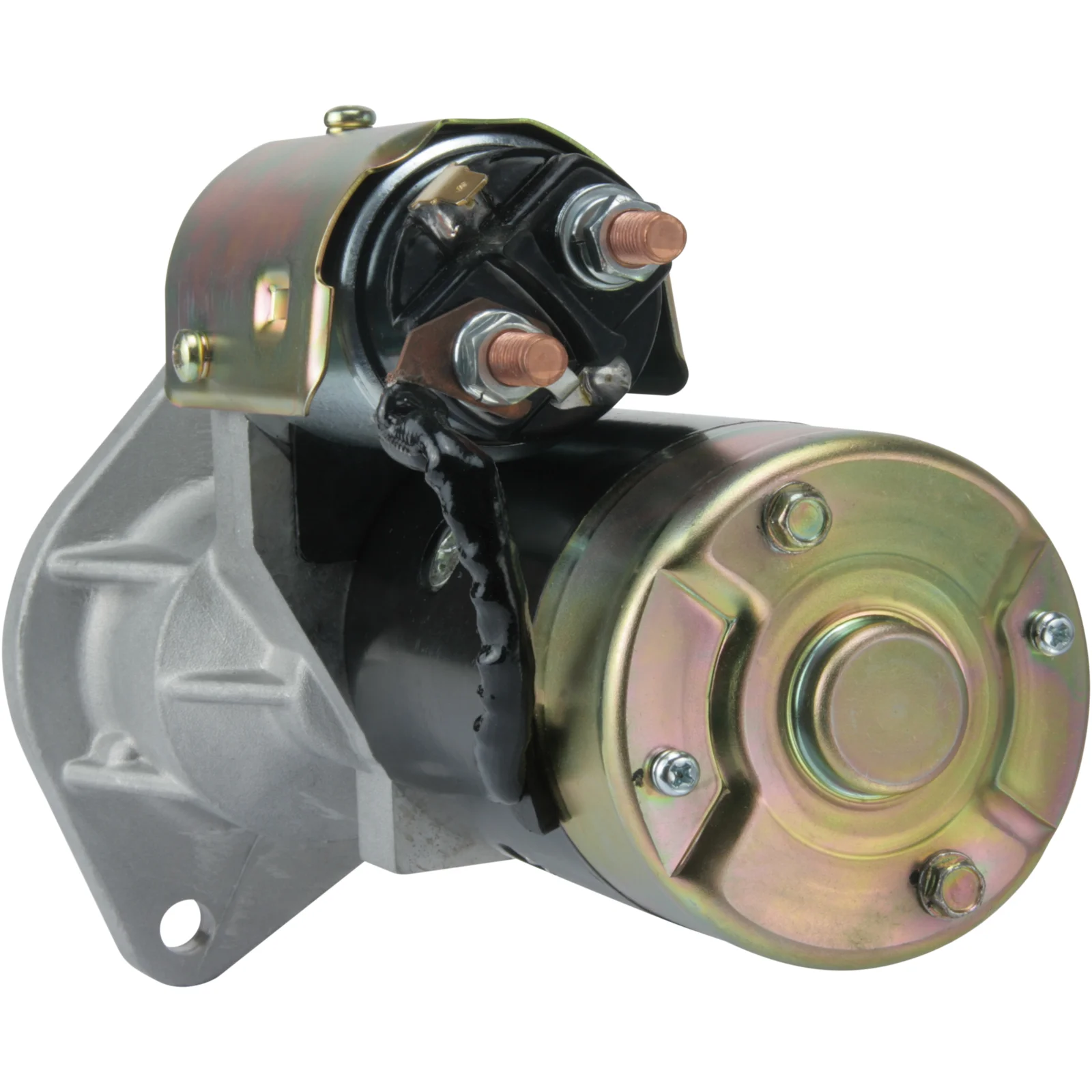

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110719

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 82.50
Drive distance: 11.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 220.00
Distance/front: 11.50
Number/teeth: 9
B+: M8
Position/50: 53
Terminal 50: 6.30
Gear type: GR
Distance mm: 110.00
Rotation: CW
Total length mm: 227.50
Drive type: Steel
Product information: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (0)

Files

  • OEM
    F032110719, js522, s12-38, s12-92, s13-104, s13-34, s13-34a, s13-40, s13-40a, s13-40b, s13-45, s13-45a, s13-45b, s13-46a, s13-63, S13-92, s13-92a, 23300-10g02, 23300-83w00, 9948715, 8944694962

  • Normalised article numbler
    ads147, ads151, cst20119, cst20132, drs3038, drs3166, drs3169, drs4071, drs5341, f032110719, js522, lrs00786, lrs01111, s1238, s1292, s13104, s1334, s1334a, s1340, s1340a, s1340b, s1345, s1345a, s1345b, s1346a, s1363, s1392, s1392a, s2026, str23010, 8ea726493001, 1226, 11474, 16740n, 18061, 18061n, 20522, 22014hi, 103841, 220111, 220111a, 250444, 250458, 250492, 455574, 2330010g02, 2330083w00, 2852114, 2852119, 2852154, 8052114, 8052119, 9948715, 11040140, 11040286, 327018092, 327026092, 627006092, 0986014073, 0986014281, 0986015341, 0986016041, 8944694962
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 82.50
    Drive distance: 11.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 220.00
    Distance/front: 11.50
    Number/teeth: 9
    B+: M8
    Position/50: 53
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 110.00
    Rotation: CW
    Total length mm: 227.50
    Drive type: Steel
    Product information: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110719, js522, s12-38, s12-92, s13-104, s13-34, s13-34a, s13-40, s13-40a, s13-40b, s13-45, s13-45a, s13-45b, s13-46a, s13-63, S13-92, s13-92a, 23300-10g02, 23300-83w00, 9948715, 8944694962

    • Normalised article numbler
      ads147, ads151, cst20119, cst20132, drs3038, drs3166, drs3169, drs4071, drs5341, f032110719, js522, lrs00786, lrs01111, s1238, s1292, s13104, s1334, s1334a, s1340, s1340a, s1340b, s1345, s1345a, s1345b, s1346a, s1363, s1392, s1392a, s2026, str23010, 8ea726493001, 1226, 11474, 16740n, 18061, 18061n, 20522, 22014hi, 103841, 220111, 220111a, 250444, 250458, 250492, 455574, 2330010g02, 2330083w00, 2852114, 2852119, 2852154, 8052114, 8052119, 9948715, 11040140, 11040286, 327018092, 327026092, 627006092, 0986014073, 0986014281, 0986015341, 0986016041, 8944694962
