Article no.: F032110817

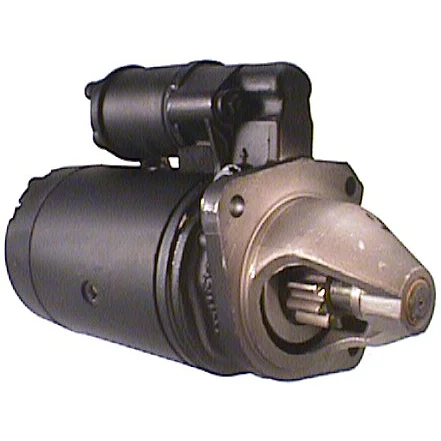

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.1, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.1
Mount. flange: 89.00
Drive distance: 25.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Distance / back: 243.00
Distance / front: 72.50
Number / teeth: 10
B+: M8
Position / 50: 8
Terminal 50: 6.30
Gear type: DD
Distance 2: 89.00
Distance 3: 89.00
Distance mm: 126.00
Rotation: CW
Total length mm: 315.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (0)

Files

  • OEM
    F032110817, 26285, 26285a, 26285e, 26285f, 26310, 26310a, 26310d, 26310e, 26310f, 26310h, 27424, 27424a, 27424b, 27427, 27427a, 27427e

  • Normalised article numbler
    bso7173, drs3458, f032110817, les0003, lrs00120, str56038, 26285, 26285a, 26285e, 26285f, 26310, 26310a, 26310d, 26310e, 26310f, 26310h, 27424, 27424a, 27424b, 27427, 27427a, 27427e, 251007, 20500120, 614001102, 680002103
  • Description
    Voltage: 12
    kW: 2.1
    Mount. flange: 89.00
    Drive distance: 25.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Distance / back: 243.00
    Distance / front: 72.50
    Number / teeth: 10
    B+: M8
    Position / 50: 8
    Terminal 50: 6.30
    Gear type: DD
    Distance 2: 89.00
    Distance 3: 89.00
    Distance mm: 126.00
    Rotation: CW
    Total length mm: 315.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110817, 26285, 26285a, 26285e, 26285f, 26310, 26310a, 26310d, 26310e, 26310f, 26310h, 27424, 27424a, 27424b, 27427, 27427a, 27427e

    • Normalised article numbler
      bso7173, drs3458, f032110817, les0003, lrs00120, str56038, 26285, 26285a, 26285e, 26285f, 26310, 26310a, 26310d, 26310e, 26310f, 26310h, 27424, 27424a, 27424b, 27427, 27427a, 27427e, 251007, 20500120, 614001102, 680002103
