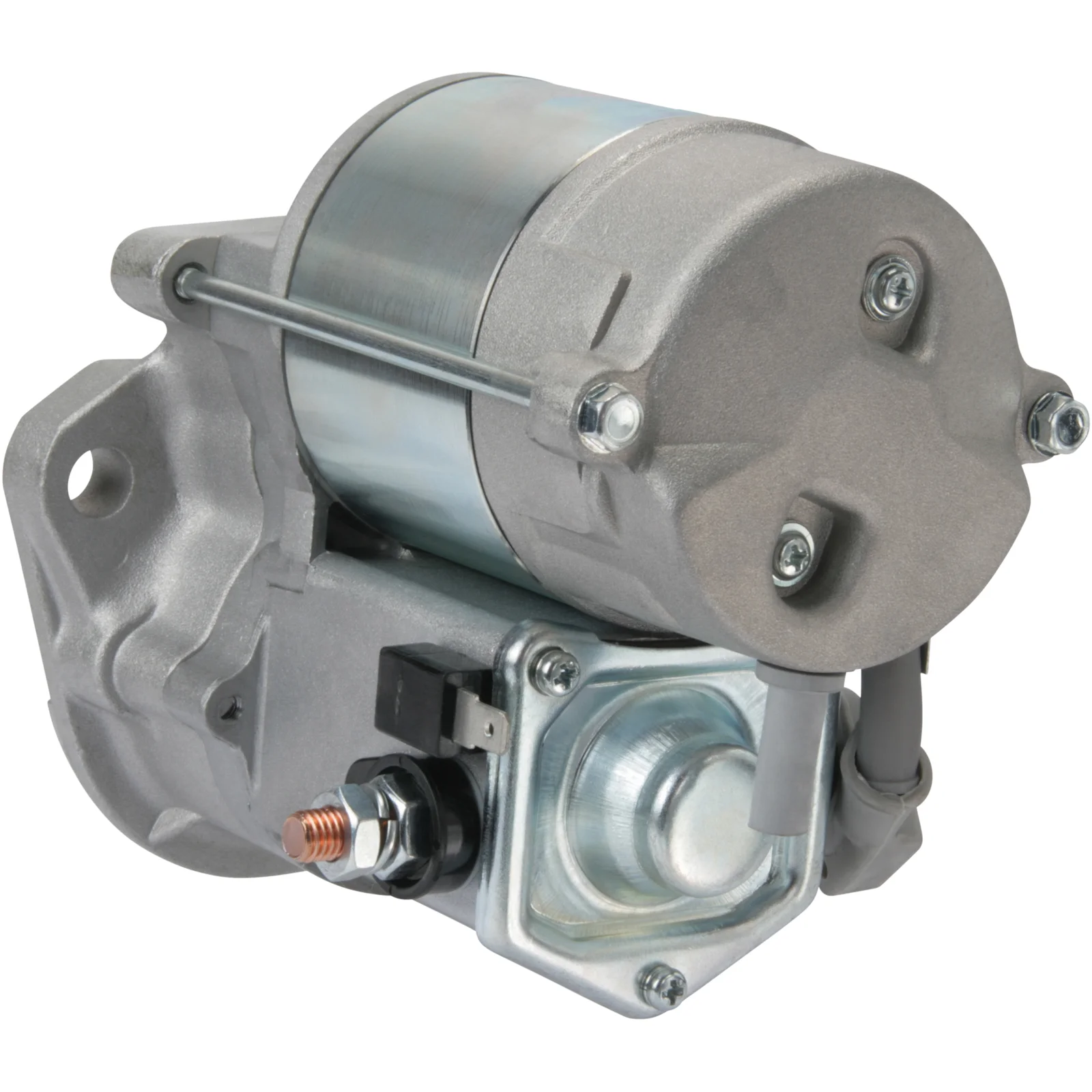

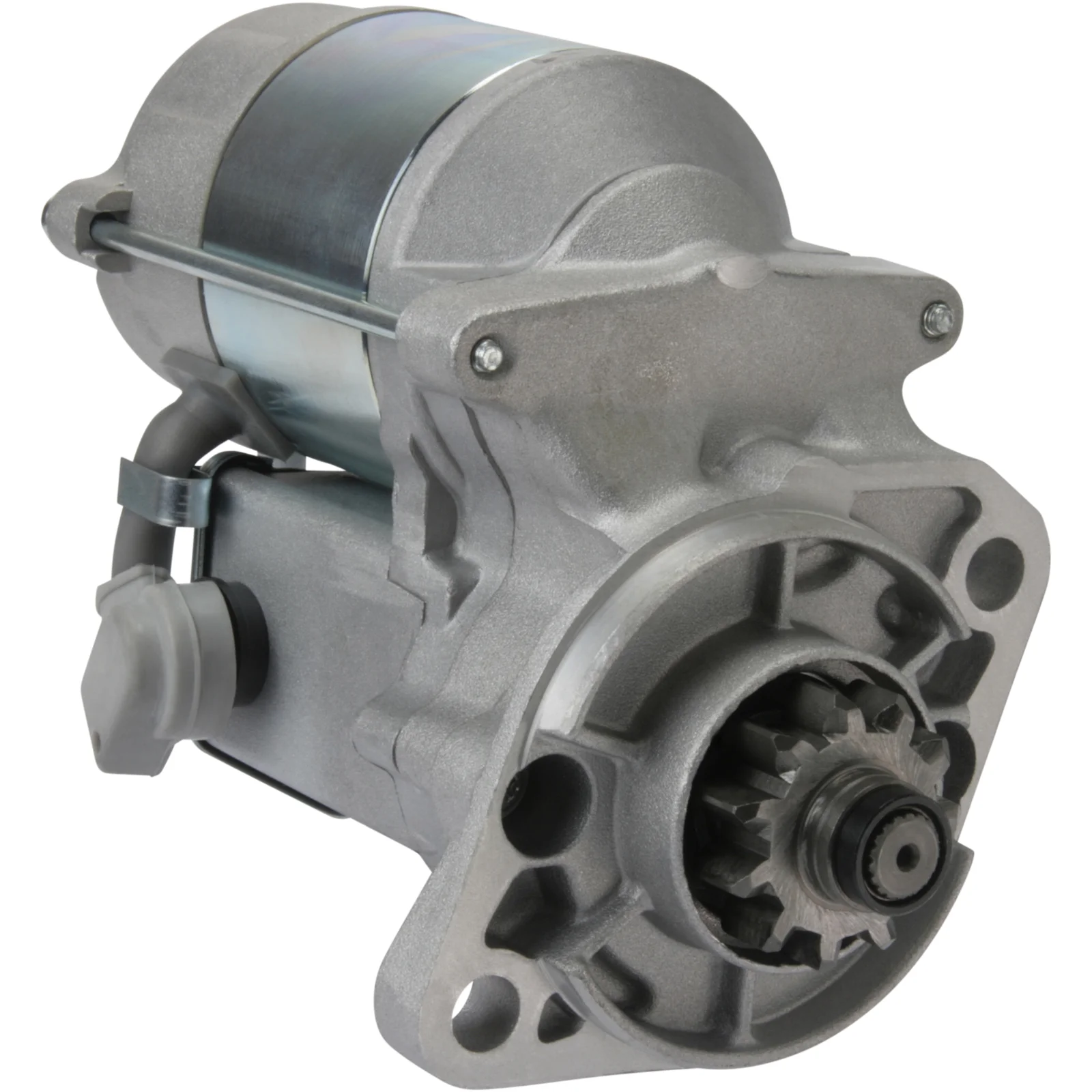

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110938

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 82.50
Drive dist.: 26.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 118.00
Dist./front: 38.00
No./teeth: 11
B+: M8
Position/B+: 45
Position/50: 50
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 188.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032110938, js896, 19202-63011, 19821-63011, 028000-7830, 128000-0140, 128000-0141

  • Normalised article numbler
    cst40179, cst40264, drs3128, f032110938, f042000176, f042s00176, js896, s6345s, s6439s, sr9949x, str8057, 8ea732672001, 4308, 17116, 17331n, 17367, 18175n, 20896, 21960nd, 33869, 8052807, 0280007830, 683007112, 1280000140, 1280000141, 1920263011, 1982163011
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.50
    Drive dist.: 26.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 118.00
    Dist./front: 38.00
    No./teeth: 11
    B+: M8
    Position/B+: 45
    Position/50: 50
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 188.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110938, js896, 19202-63011, 19821-63011, 028000-7830, 128000-0140, 128000-0141

    • Normalised article numbler
      cst40179, cst40264, drs3128, f032110938, f042000176, f042s00176, js896, s6345s, s6439s, sr9949x, str8057, 8ea732672001, 4308, 17116, 17331n, 17367, 18175n, 20896, 21960nd, 33869, 8052807, 0280007830, 683007112, 1280000140, 1280000141, 1920263011, 1982163011
